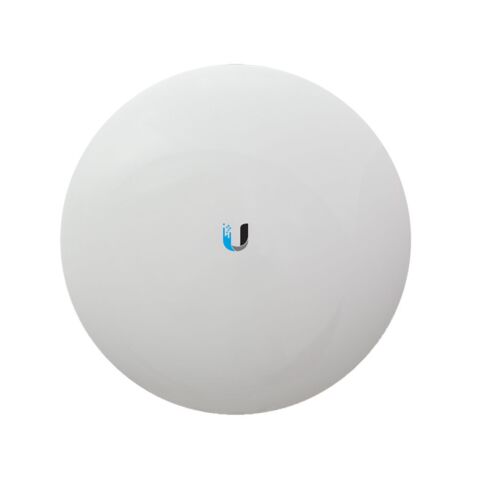

Incorporating innovative industrial design with proprietary airMAX® ac technology, Ubiquiti's NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint. It features fast and easy setup using your mobile device as well as enhanced protection against ESD events. Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise enviro
Specifications
Antenna Gain: 19dBi
Beam-width: 30°
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Interfaces: 2
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 189 x 189 x 125mm
Weight: 530g
