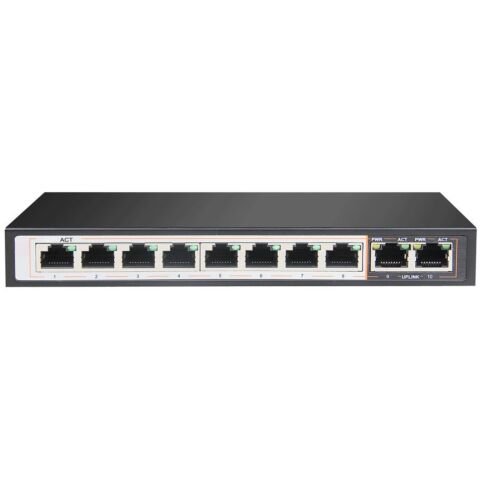

10 Port Fast Ethernet Switch with 8 AI PoE Ports and 2 FE Uplink

R794.00
In stock
SKU
SPS-8F2F

SPS-8F2F is a 10 port switch with 8x 10/100Mbps 802.3af/at PoE ports and 2x 10/100Mbps Ethernet uplink ports.

More Information
BrandScoop
Networking Device TypePOE Switches

SPS-8F2F is a 10 port switch with 8x 10/100Mbps 802.3af/at PoE ports and 2x 10/100Mbps Ethernet uplink ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 96W and the max budget per port is 36W.

The SPS-8F2F supports 4 working modes:

VLAN (Port Isolation): Enables Port Isolation on Port 1-8.

AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.

AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

AI QOS: Priorities network bandwidth based on network usage history & analytics.


Specifications

Ethernet Ports: 10x 10/100

Hardware Button: AI VLAN, AI Extender, AI PoE, AI QOS

Max. Power Consumption: 3W

Mounting: Desktop

Operating System: SPS OS

Operating Temperature: 0°C to 40°C

PoE Input: None

PoE Output: 802.3af/at PoE on Ports 1~8

Power Input: 52V 1.185A Power Supply (Included)

Serial Interface: None

SFP Ports: None

Supported Voltage Range: 52V


Dimensions: 184 x 94 x 27mm
