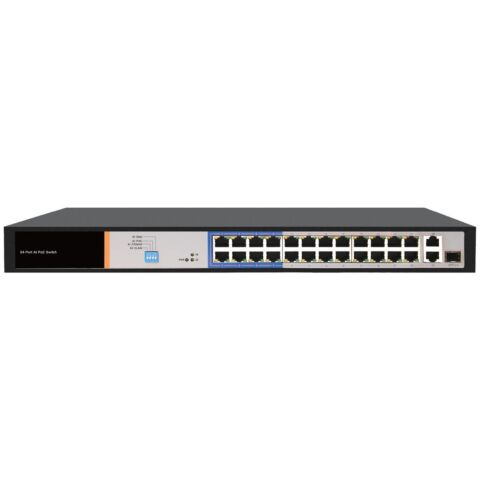

24 Port Fast Ethernet AI PoE Switch with 2GE/1SFP Uplink

SPS-24F2G2 is an unmanaged 24 port 10/100Mbps Fast Ethernet PoE switch with 2x Gigabit Ethernet and 1x SFP Combo Uplink ports. Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 250W and up to a maximum of 30W per port.

The SPS-24F2G2 supports 4 working modes:

AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.

AI VLAN: Enables Port Isolation on Ports 1-24.

AI QOS: Prioritizes network bandwidth based on network usage history and analytics.

AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

Specifications

Ethernet Ports: 24x 10/100 ; 2x 10/100/1000 (Combo)

Hardware Button: AI VLAN, AI Extender, AI PoE, AI QOS

Max. Power Consumption: 10W

Mounting: Desktop or Rack-Mount

Operating System: SPS OS

Operating Temperature: 0°C to 40°C

PoE Input: None

PoE Output: 802.3af/at PoE on Ports 1~24

Power Input: 1x IEC Power Cord (Included)

Serial Interface: None

SFP Ports: 1x 1.25Gbps (Combo)

Supported Voltage Range: 100V-240V

Dimensions: 440mm x 180mm x 44mm
