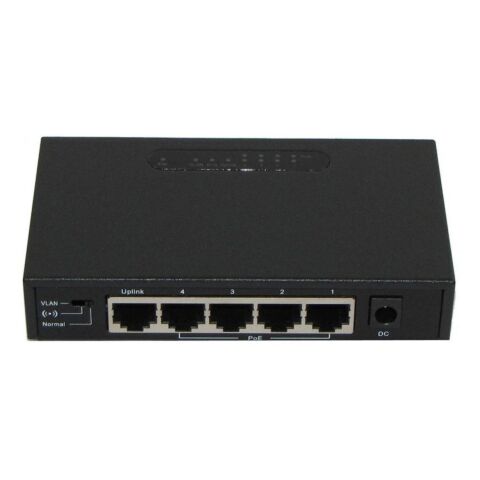

5 PORT 10/100 POE - TXE104
Hardware Specifications
Network Connector: 5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port 1 to Port 4)
LED Display: System
Power (Green)
Per PoE port:
PoE (Red/Blue, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 5)
DIP Switch: Standard mode for 100M
Extend mode for 250m (Based on the cable category)
Switch Architecture: Store and Forward switch architecture
MAC Address Table: 1K MAC address table with auto learning function
EST Protection: 4KV
Switch Fabric: 1Gbps
Switch Throughput: 0.74Mpps @64bytes
Maximum Packet Size: 1536bytes
Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power Requirements: 52V DC, 1.25A or 52V0.92A
Power Consumption: Max. 65watts,
Dimensions (W x D x H): 124 x 72 x 24 mm
Power over Ethernet
PoE Standard: IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span + mid-span
Power Pin Assignment 1/2(+), 3/6(-),
PoE Power Output: Per Port max. 15.4 watts (IEEE 802.3af)
Per Port. max. 30 watts (IEEE 802.3at)
PoE Power Budget: 60 watts
Number of PDs, 7 watts:4
Number of PDs, 15.4 watts:4
Number of PDs, 30 watts:2
Standard Conformance
EMI Safety: FCC, CE
Standard Compliance: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Environment 0 - 50 degrees
Hardware Specifications
Storage Environment -10 - 70 degrees C
Operating Humidity: 5 - 95%, relative humidity, non-condensing
Storage Humidity: 5 - 95%, relative humidity, non-condensing
Ordering Information
TXE104 4-Port 10/100Mbps 802.3at/af PoE + 1-Port 10/100Mbps Desktop Switch
