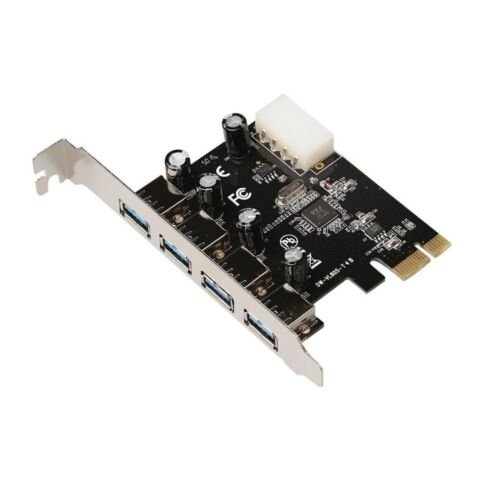

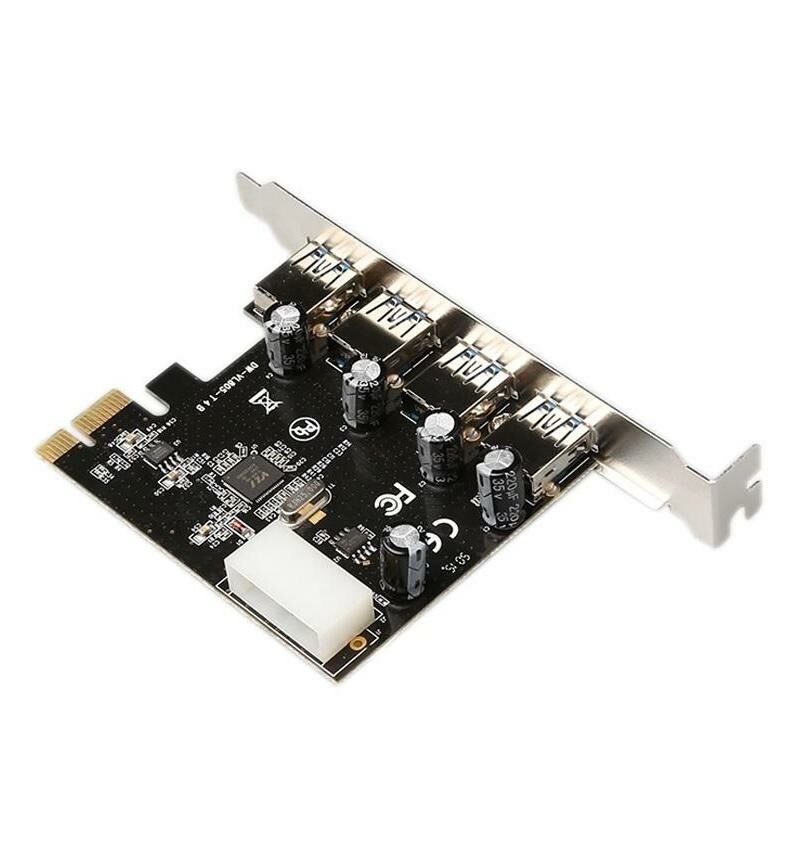

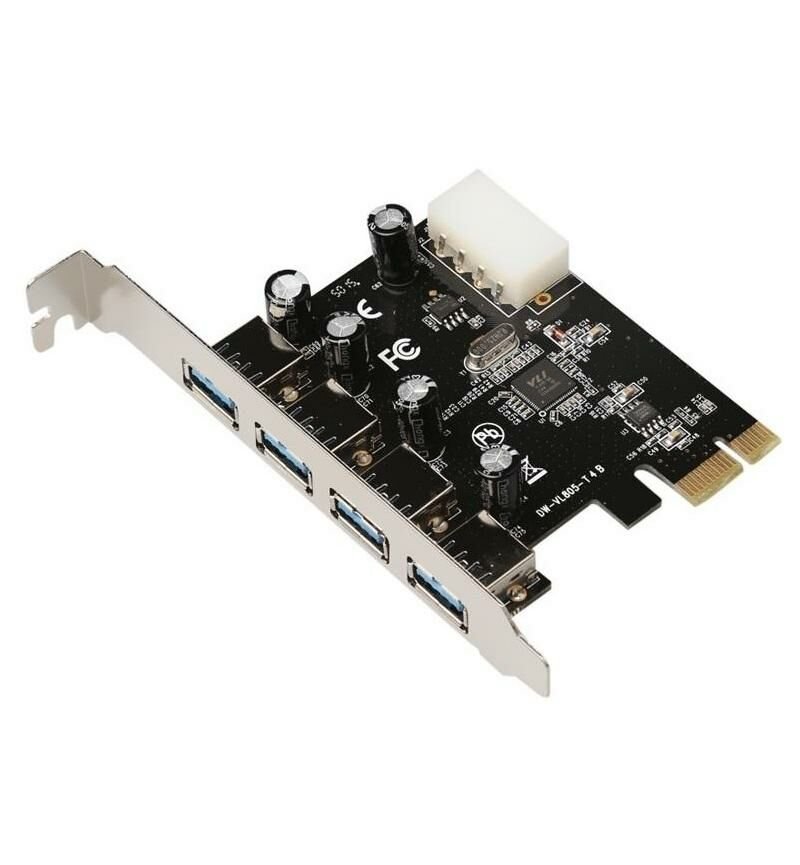

4 PORT USB 3.0 EXPANSION CARD - TXB048
Model number: TXB048
Chipset: VIA/VL805
Port number: 4 x USB3.0
Interface: PCI Express 1x slot
Dimension: 65.4 x 80 x 16.6mm
Support OS
Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Environment
Operating Temperature: 0?-50 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0?-80?
Relative Humidity: 5%-90%(non-condensing)
Features
USB3.0 Specification compliant, backward compatible with USB2.0 & USB1.1
2 external USB3.0 ports, 10x faster than USB2.0
Supports PCI-Express Rev. 1.0a
USB3.0 data transfer rate up to 5Gbps
Plug and play installation
External power supply
Key Features
Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
Compliant to Universal Serial Bus 2.0 Specification
Compliant to eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Support Legacy USB Function
Compliant with PCI Express Base Specification 2.0
In-house USB PHY employs advanced CMOS process to reduce power consumption
Support Battery Charging Specification
Firmware upgrade options include integrated firmware in system BIOS
Software
Initial Driver Support for Windows 8,7, Vista, and XP
USB Attached SCSI Protocol (UASP) - Support various
Support various Linux kernels
