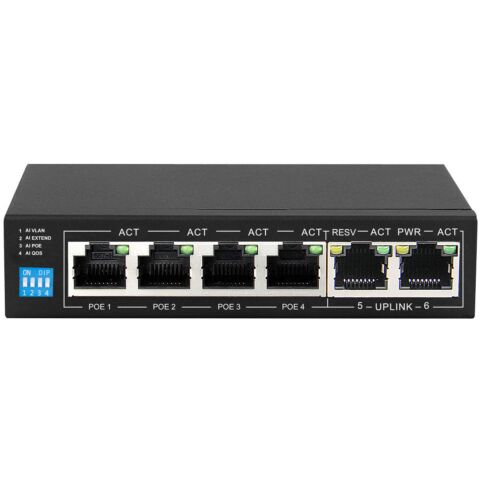

6 Port Fast Ethernet Switch with 4 AI PoE Ports and 2 FE Uplink

R473.00
In stock
SKU
SPS-4F2F

SPS-4F2F is a 6 port switch with 4x 10/100Mbps 802.3af/at PoE ports and 2x 10/100 uplink ports. Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 60W and the maximum budget per port is 36W.

More Information
BrandScoop
Networking Device TypePOE Switches

SPS-4F2F is a 6 port switch with 4x 10/100Mbps 802.3af/at PoE ports and 2x 10/100 uplink ports. Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 60W and the maximum budget per port is 36W.

The SPS-4F2F supports 4 working modes:

VLAN (Port Isolation): Enables Port Isolation on port 1-4.

AI Extend Mode: Transmission distance of ports 1-4 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.

AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

AI QOS: Priorities network bandwidth based on network usage history & analytics.


Specifications

Ethernet Ports: 6x 10/100

Hardware Button: AI VLAN, AI Extender, AI PoE, AI QOS

Max. Power Consumption: 3W

Mounting: Desktop

Operating System: SPS OS

Operating Temperature: 0°C to 40°C

PoE Input: None

PoE Output: 802.3af/at PoE on Ports 1~4

Power Input: 52V 1.15A Power Supply (Included)

Serial Interface: None

SFP Ports: None

Supported Voltage Range: 52V


Dimensions: 125 x 75 x 27mm
