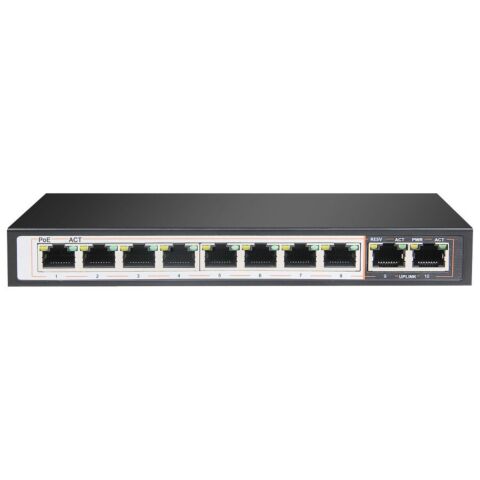

8 Port Fast Ethernet Switch with 8 AI PoE Ports and 2 GE Uplink

SPS-8F2G is an unmanaged, 8 port, Fast Ethernet switch with 8 AI (Artificial Intelligence) PoE Ports and 2 Gigabit Ethernet Uplink Ports. Each of these PoE ports are IEEE 802.3af/at compliant which enables them to identify whether the connected device is compatible and requires power. The total PoE budget is 96W, or up to a maximum of 30W per port.

The SPS-8F2G supports 4 working modes:

AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.

AI VLAN: Enables Port Isolation on Ports 1-8.

AI QOS: Prioritizes network bandwidth based on network usage history and analytics.

AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

Specifications

Ethernet Ports: 8x 10/100 ; 2x 10/100/1000

Hardware Button: AI VLAN, AI Extender, AI PoE, AI QOS

Max. Power Consumption: 5W

Mounting: Desktop

Operating System: SPS OS

Operating Temperature: 0°C to 40°C

PoE Input: None

PoE Output: 802.3af/at PoE on Ports 1~8

Power Input: 52V 1.185A Power Supply (Included)

Serial Interface: None

SFP Ports: None

Supported Voltage Range: 52V

Dimensions: 184mm x 95mm x 28mm
