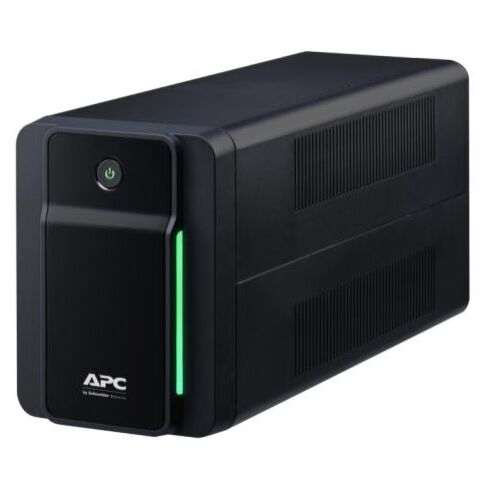

APC BX750MI Back-UPS 750VA 230V AVR UPS with IEC sockets, Line Interactive, 6 ms typical transfer time, Lead-acid battery, 8 hours typical recharge time, RJ45 10/100/1000 BASE-T Ethernet protection
Features:
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
LED status display
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Specifications:
Output
Max Configurable Power (Watts) 410 Watts / 750VA
Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains
Topology Line interactive
Waveform type Stepped approximation to a sinewave
Transfer Time 6 ms typical : 10 ms maximum
Input
Input frequency 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations 140 - 300V
Number of Power Cords 1
Input Power Factor at Full Load 0.63
Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 8hour(s)
Replacement Battery RBC17
Expected Battery Life (years) 3 - 5
Runtime View Runtime Graph
View Runtime Chart
Efficiency View Efficiency Graph
Communications & Management
Interface Port(s) USB
Control panel LED Status display with on line : on battery
Audible Alarm Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating 273Joules
Data Line Protection RJ45 10/100/1000 Base-T Ethernet protection
Physical
Maximum Height 160MM, 16.0CM
Maximum Width 120MM, 12.0CM
Maximum Depth 355MM, 35.5CM
Net Weight 5.4KG
Shipping weight 5.9KG
Shipping Height 250MM, 25.0CM
Shipping Width 197MM, 19.7CM
Shipping Depth 430MM, 43.0CM
Color Black
SCC Codes 10731304410796
Environmental
Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 (Non-condensing) %
Operating Elevation 0 - 3000meters
Storage Temperature -15 - 40 °C
Storage Relative Humidity 0 - 95 (Non-condensing) %
Storage Elevation 0 - 3000meters
Audible noise at 1 meter from surface of unit 40.0dBA
Protection Class IP20
Conformance
Approvals CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
Equipment protection policy Lifetime : 50000 euros
