Description:

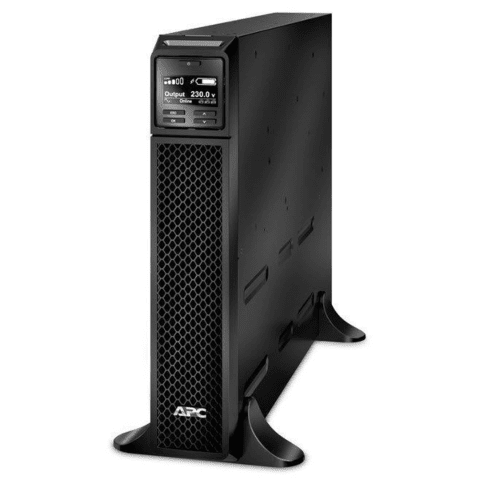

APC SRT1500XLI Smart-UPS 1500W 1.5kVA UPS
High density, double-conversion on-line power protection with scalable runtime
Features
Best-in-class power density
High-efficiency “green mode”
Graphical LCD display with multicolor backlight
Intelligent battery management
Built-in energy meter
Switched outlet group(s)
Emergency power off
Communication ports
Communication protocols
Technical Specification
Main
Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 1500 W
Rated power in VA: 1500 VA
Input Connection Type: 1x IEC 60320 C14
output connection type: 6x IEC 60320 C13
Cable length: 1.83 m
Number of cables: 1
Batteries & Runtime
Battery type: Lead-acid battery
Number of battery filled slots: 1
Battery recharge time: 3 h
Battery voltage: 48 V
Battery charger power: 108 W rated
Replacement battery: APCRBC155
General
UPS type: Double conversion online
Product web sub-family: High density
Redundant: No
Physical
Product colour: Black
Dimensions (H x W x D): 43.2 x 8.5 x 50.5 cm
Net weight: 20.5 kg
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Vertical
Input
Network frequency: 40...70 Hz auto-sensing
Input voltage limits: 100...275 V
Output
Maximum configurable power in VA: 1500 VA
Maximum configurable power in W: 1500 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Wave type: Sine wave
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Built-in bypass
Communications & Management
Free slots: 1
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes
Surge Protection and Filtering
Surge energy rate: 432 J
Package contents
CD with software
Communication cable
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
