Asus EBR63 AX3000 Dual-Band WiFi 6 All in one Access Point, Supports up to 5 SSIDs, 2402 Mbps + 574 Mbps AX3000 Ultimate ax performance, 4 external antenna, Wireless Router mode, AiMesh Node mode, Access Point mode, 1x RJ45 for gigabits BaseT for WAN, 4x RJ45 for gigabits BaseT for LAN, 1x USB 3.2 Gen 1, USB 2.0
Overview:

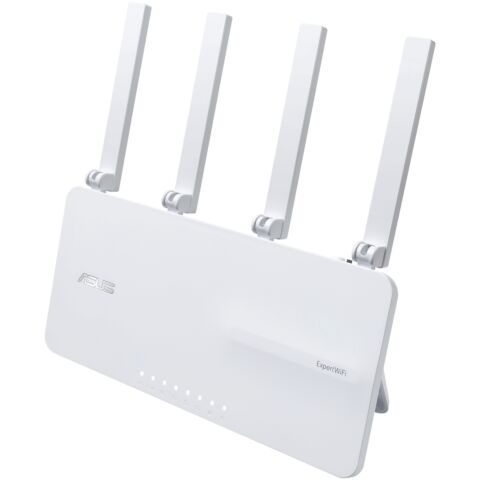

ASUS ExpertWiFi EBR63
AX3000 Dual-Band WiFi 6 (802.11ax) All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-sit VPN, commercial-grade network security and easy management app
Secure and Segmented Networking - Easy business WiFi network settings via Self-Defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.
Customizable Guest Portal - Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles
Backup WAN for Stable Connectivity - The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection
Commercial-Grade Network Security and VPN - Safe Browsing, VPN features to connect easily and securely to public WiFi, and a free subscription to ASUS AiProtection Pro
Accommodate to Any Space - The EBR63 comes with a built-in bracket and wall mount hole that can be adjusted to fit into almost any location for space-saving and more flexibility
Specifications:
Item ASUS ExpertWiFi EBR63
Model Name EBR63
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna 4 External Antenna
Transmit/Receive 2.4GHz 2x2
5GHz 2x2
Processor 1.7GHz quad-core processor
Memory 256MB FLASH
512MB RAM
Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency 2.4 GHz
5 GHz
Operating Mode Wireless Router Mode
AiMesh Node Mode
Access Point Mode
I/O Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0
Buttons WPS Button, Reset Button, Power Switch
LED Indicator POWER, WAN, LAN, 5G, 2.4G
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 2A current
Mounting Wall Mount
Ceiling Mount
Package Content .ExpertWiFi EBR63
.RJ45 Ethernet Cable
.Power Adapter
.Quick Start Guide
.Warranty Card
Product Weight 436g
AiMesh AiMesh
Primary AiMesh Router
AiMesh Node
Device Access Control "Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
Maximum Device Access Control Profile :12
Maximum Device Access Control Content Filter Rule :12
Dashboard Dashboard
Self-Defined Network "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Self-Defined Network Type
Employee
Guest Portal
Guest Network
Scheduled Network
IoT Network
VPN Network
Maximum Self-Defined Network Rule :16
Multiple Network
VLAN
Captive Portal for Free WiFi
VPN WiFi
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
Bandwidth Limiter
AP isolate
DNS Server Connection
Security AiProtection
VPN
WiFi Encryption
WPS
Let's Encrypt
DNS-over-TLS
SSH
Firewall
Maximum Firewall Keyword Filter :64
Maximum Firewall Network Service Filter :32
Maximum Firewall URL Filter : 64
AiProtection AiProtection Pro
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking
VPN VPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic Control Adaptive QoS
Bandwidth Monitor
Bandwidth Limiter
Real-time Traffic Monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website History
WAN PPPoE
PPTP
L2TP
IPSec
Dual WAN
3G/4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
NAT Passthrough
PPTP Pass-Through
L2TP Pass-Through
IPSec Pass-Through
LAN DHCP Server
IGMP Snooping
IPTV
VLAN
Wireless MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Maximum MAC Filters : 64
Wireless Scheduler
USB application 4G / 5G Auto Mobile Tethering
Media Server
Samba Server
FTP Server
Shared Folder Privileges
User Interface WEB: ASUSWRT
APP: ASUS ExpertWiFi APP
Administration Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
