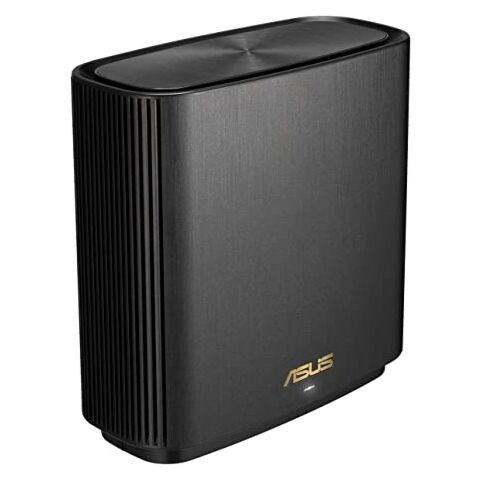

Asus AX7800 Tri-Band WiFi 6 Mesh routers - 1 pack, 574+2402+4804 Mbps AX7800 Ultimate AX performance, 6x internal antenna, 2.4G Hz / 5 GHz-1 / 5 GHz-2 operating Frequency, 1x RJ45 for 2.5G BaseT for WAN, 3x RJ45 for gigabits BaseT for LAN, 1x USB 3.2 Gen 1, AiMesh
Features:
Superior Whole-Home WiFi
The ASUS ZenWiFi XT9 mesh system consists of a pair of ASUS AX7800 tri-band WiFi 6 mesh routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections for your streaming videos, gaming and all other smart IoT gadgets.
Wider Coverage
The latest ASUS RangeBoost Plus technology, along with the flagship Broadcom WiFi 6 chipset, significantly improves WiFi signal range and overall coverage by up to 38%*, offering expansive coverage in spaces up to 5700 square feet.
*Measured using a WiFi 6 client connected at 200Mbps to a WiFi 6 router with RangeBoost Plus, compared to the same WiFi 6 client connected at 200Mbps to a WiFi 5 router without RangeBoost Plus.
Easy Setup & Management
The ASUS Router mobile app with its intuitive interface makes managing your mesh WiFi system simple right from your smartphone.
3-Step Easy Setup
Simply follow the on-screen directions, and you will be up and running in no time!
Flexible Backhaul Choice
ASUS ZenWiFi XT9 gives you flexible backhaul options: wireless or wired Ethernet speeds. You can use either the second 5GHz band or an Ethernet cable to connect to a local network node. Or just let the ZenWiFi XT9 choose the best connection type for you. The choice is always yours!
Ultra-fast Wired Connection, Flexible Deployment
With a 2.5Gbps WAN port, the ASUS ZenWiFi XT9 empowers you to take full advantage of 2.5Gbps speeds offered by internet service providers for your compatible wired devices. You can also enjoy up to 2Gbps wired speeds by using the LAN aggregation feature.
Gigabit LAN ports
2.5Gbps WAN port
Comprehensive Home Network Security
Home network security is more important than ever, as many households now have multiple connected devices while lacking appropriate security measures to protect them and their users. The ASUS ZenWiFi helps you stay safe online with our AiProtection Pro network security and Instant Guard secured VPN features.
AiProtection Pro Security for Your Home Network
Alongside the latest WPA3 security protocol, the ASUS ZenWiFi XT9 also features AiProtection Pro powered by Trend Micro and advanced parental controls, providing everything you need in one device.
Specifications:
Model ASUS ZenWiFi XT9
Model Name XT9 (W-1-PK)
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment AX7800 ultimate AX performance : 574+2402+4804Mbps
AX technology Yes
Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
Antenna Internal antenna x 6
Transmit/Receive 2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4
Processor 1.7 GHz quad-core processor
Memory 256 MB Flash
512 MB RAM
Boosts speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency 2.4G Hz, 5 GHz-1, 5 GHz-2
Ports RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.2 Gen 1 x 1
Button WPS Button, Reset Button, Power Switch
LED Indicator Power x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 3 A current
Package content ZenWiFi XT9
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Product Weight (g) 740g
Remark Content and color may vary in different regions and packages.
AiMesh AiMesh
Primary AiMesh router
AiMesh node
Router APP ASUS Router APP
Alexa Support Alexa skill
AiProtection AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control Parental Control
Parental Control Customized Internet schedule
Traffic Control Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history
Wireless IPv6
Wi-Fi Encryption : WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : Max 9 rules
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : Max 64 rules
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming
WAN Dual WAN
DMZ
DDNS
Let's Encrypt
Safe browsing
DNS-over-TLS
LAN IGMP snooping
IPTV
LAN Link Aggregation
VPN Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion
VPN Server WireGuard
USB application File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration Operating mode : Wireless router mode
Access point mode
Firewall
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL)
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
