SPECIFICATIONS:
Brand ASUS
Series ExpertBook B1 Series (2024)

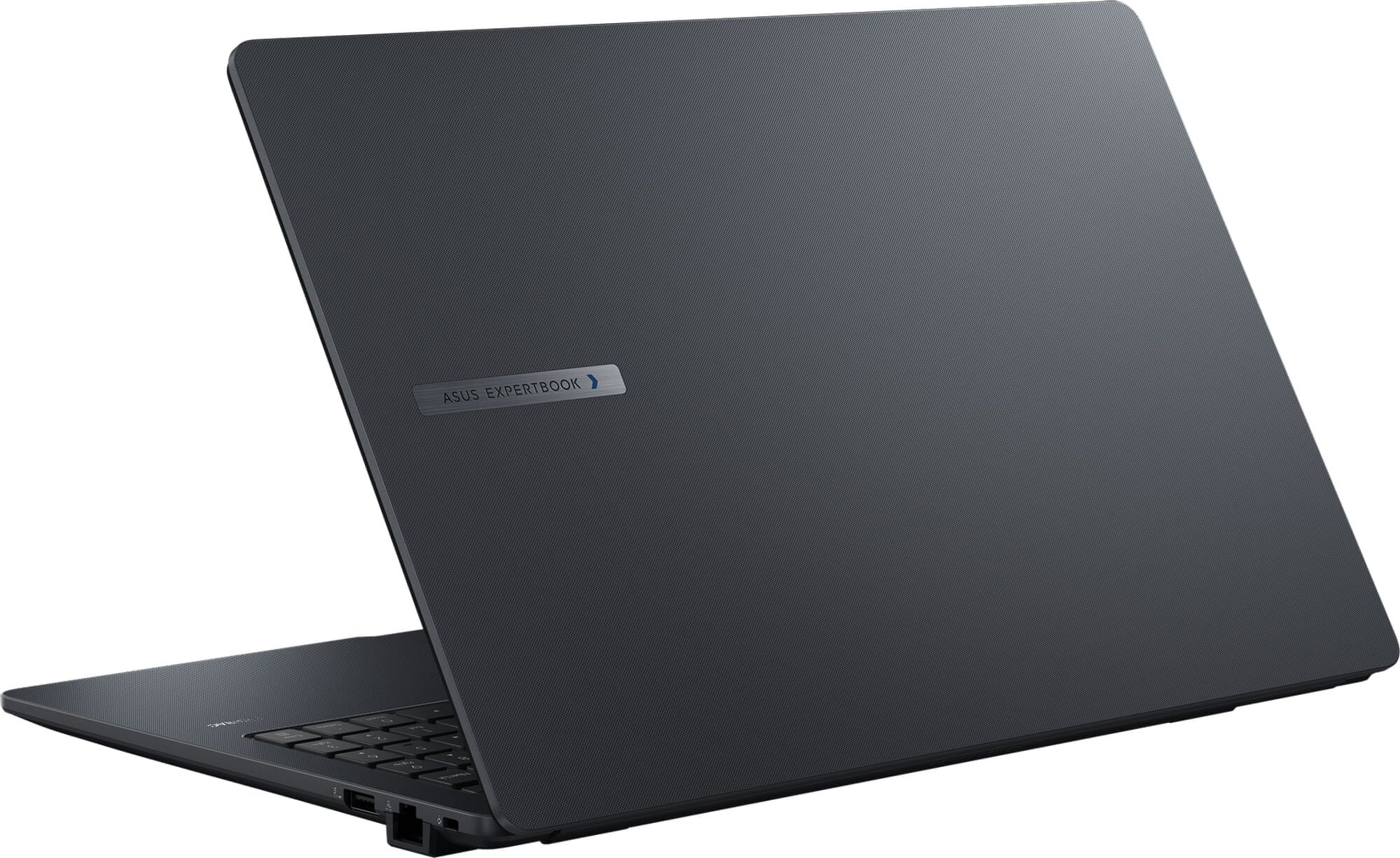

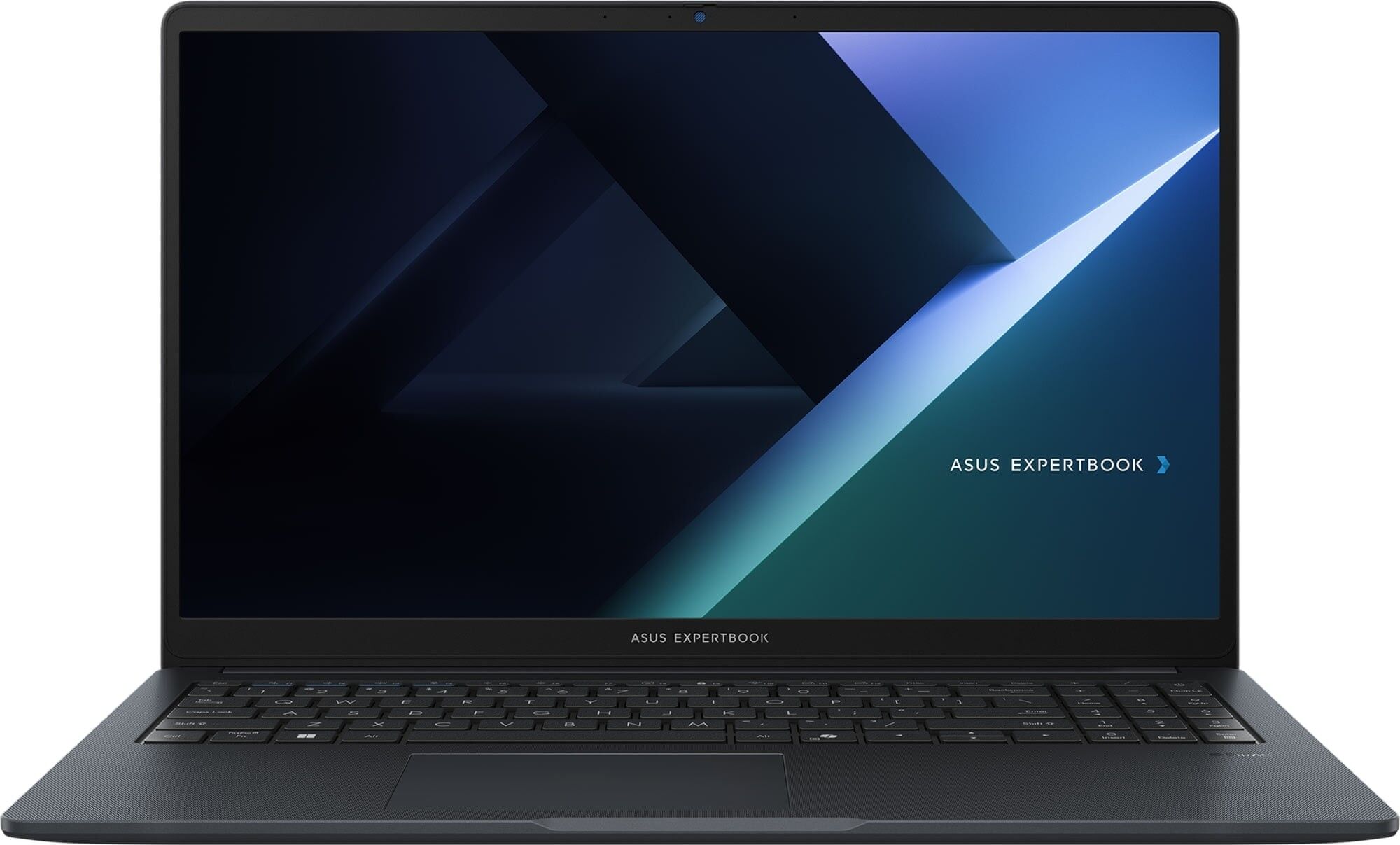

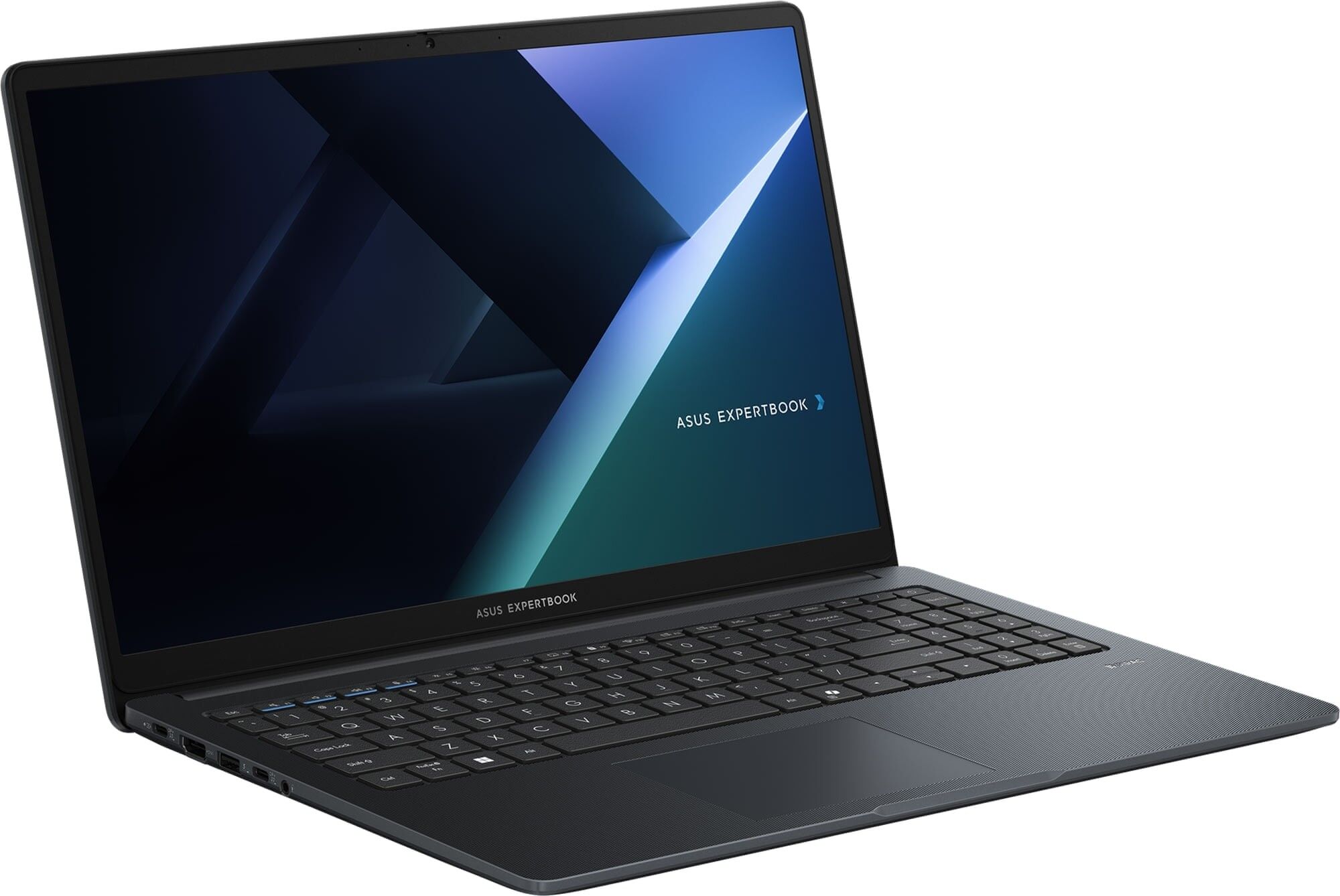

Model ExpertBook B1 B1503 (B1503CVA-I716512B0X / 90NX0801-M01PB0)
Processor
Model Core i7-1355U
Chipset Manufacturer Intel
Boost Clock 5.0GHz
Core Arrangement 2x Performance Cores, 8x Efficiency Cores
Cores 10 cores
Threads 12 threads
Cache 12MB Smart Cache
Lithography Intel 7 Process
Memory
Total Installed 16GB (1x16GB SO-DIMM)
Type DDR5
Speed 4800 MT/s
Maximum Capacity 64GB (2x32GB SO-DIMM) DDR5-4800
2x SO-DIMM Slots available for upgrades
Graphics
Model Intel Iris Xe Graphics
Display
Size 15.6"
Panel Type TN (Twisted Nematic)
Native Resolution Full HD (1920x1080)
Brightness 250 nits (typical)
Color gamut 45% NTSC
Panel Treatment Anti-Glare
Touch Input N/A
Storage
Installed 1x 512GB M.2 2280 PCIe 4.0 NVMe SSD
Supported 1x M.2 2280 PCIe 4.0 NVMe SSD Slot (Occupied)
1x M.2 2230 PCIe 4.0 NVMe SSD Slot (Vacant)

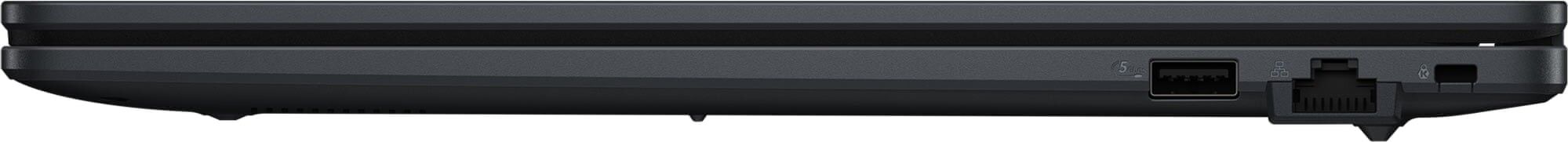

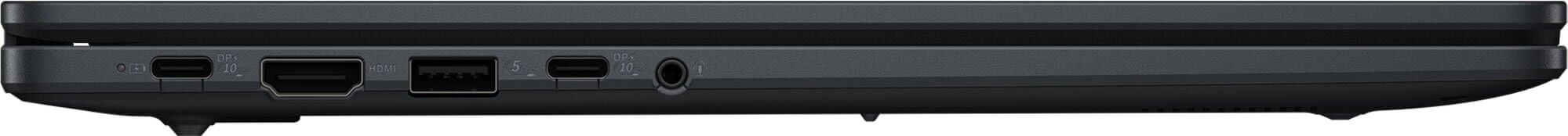

Connectivity

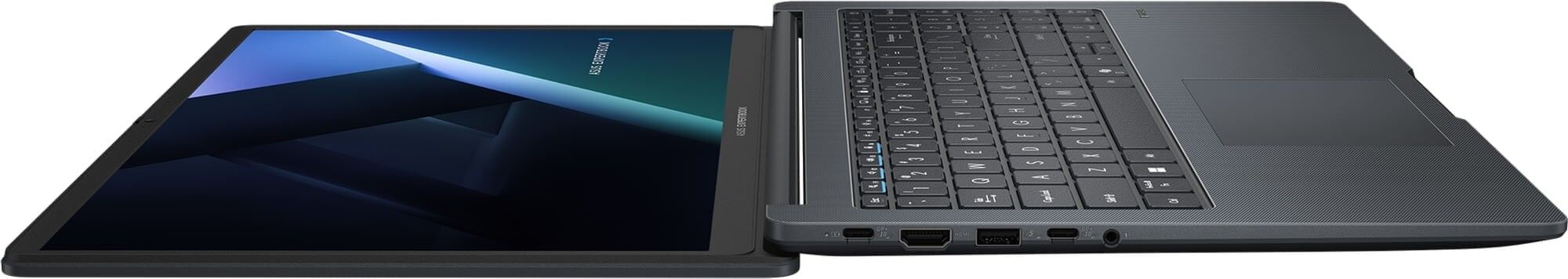

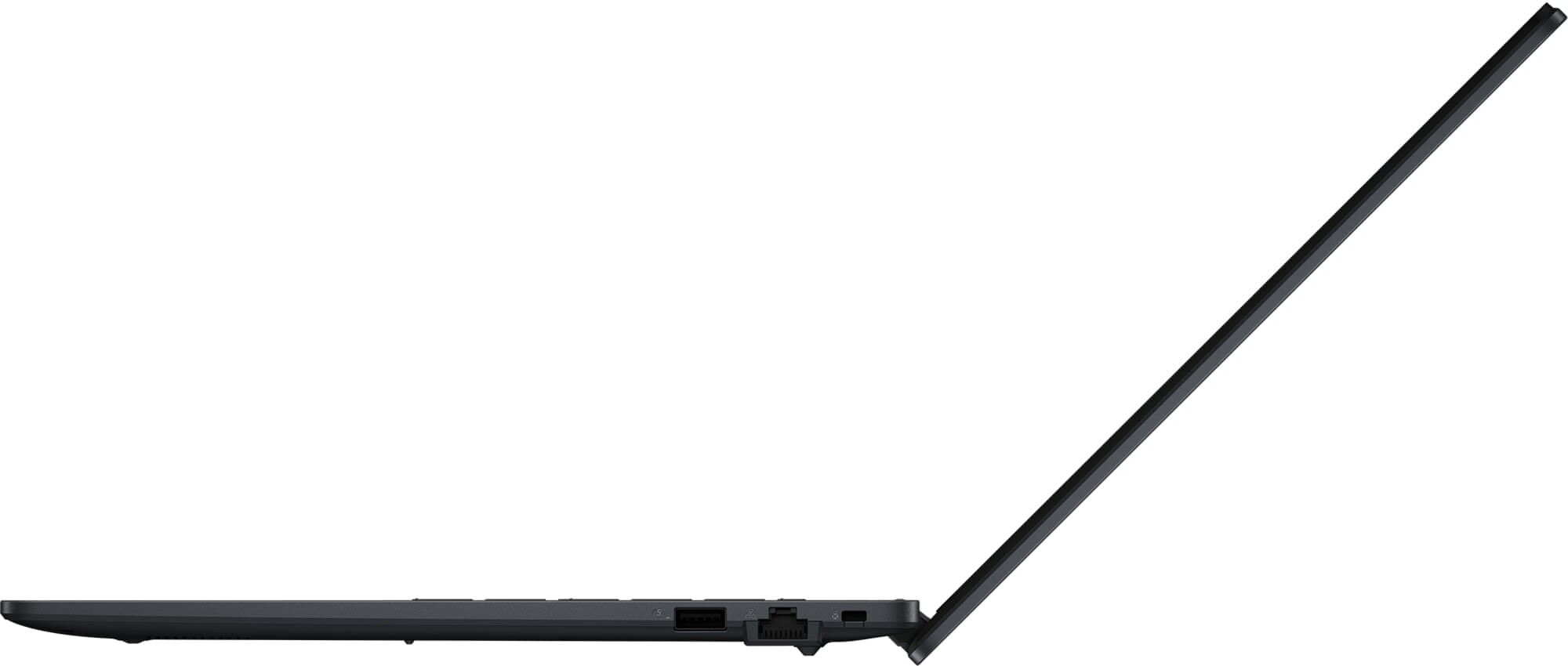

Ports 2x USB 10Gbps Type-C Ports with DisplayPort & 65W Power Delivery
2x USB 5Gbps Type-A Ports
1x HDMI 1.4b Port (Up to Full HD 60Hz)
1x 3.5mm Combination Audio Jack
1x Gigabit Ethernet RJ-45 LAN Port
Audio
Speakers Stereo Speakers with Audio by DIRAC
Microphone Array Digital Microphones with AI Noise Cancelation
Networking
Ethernet Gigabit Ethernet RJ-45 LAN Port
Wi-Fi WiFi 6 2x2 MIMO Dual-Band Adapter
Bluetooth Bluetooth 5.2
LTE N/A
Integrated Input Devices

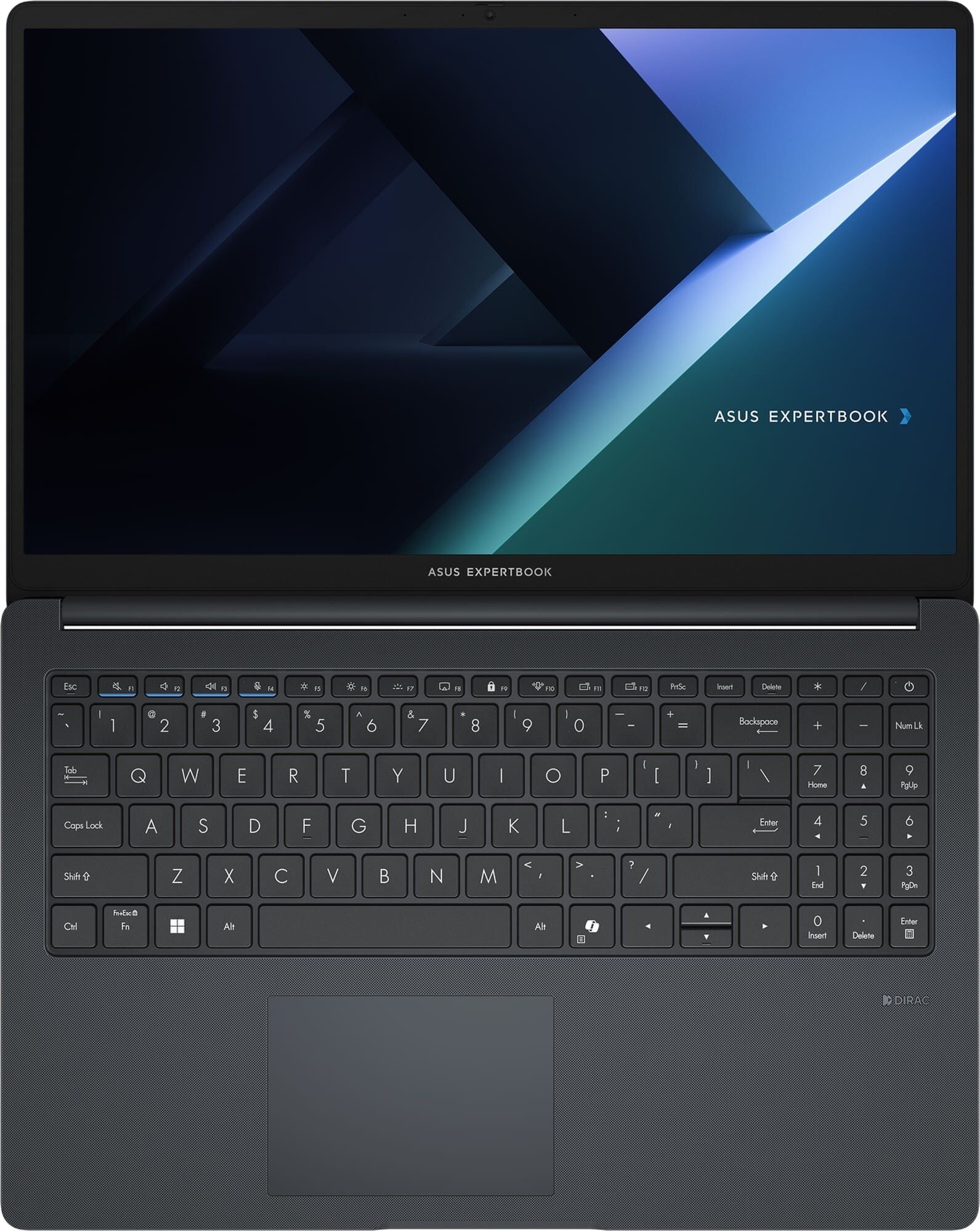

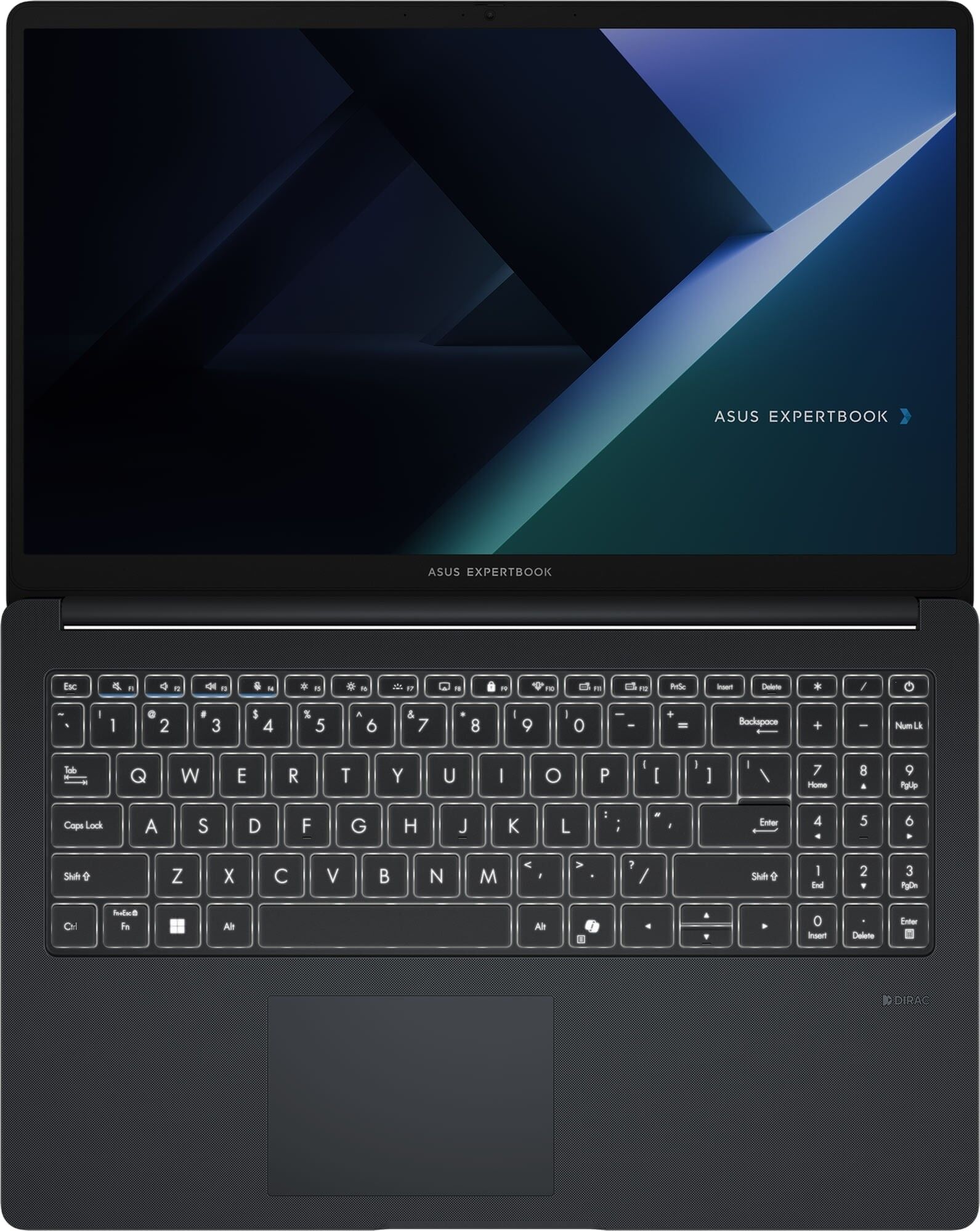

Keyboard ASUS White LED Backlit Spill-Resistant Chiclet Keyboard with Numberpad
Pointing Device ASUS Precision Trackpad
Fingerprint Reader Yes, Windows Hello Capable
General
Webcam 720P HD Webcam with Privacy Shutter
Operating System Windows 11 Pro 64-bit
Battery 42Whr Integrated Li-Ion 3-cell
Power 65W USB Type-C AC Adapter, Input: 100~240V AC 50/60Hz universal
Dimensions 359.5 x 232.2 x 19.9mm (W x D x H)
Weight 1.64kg
