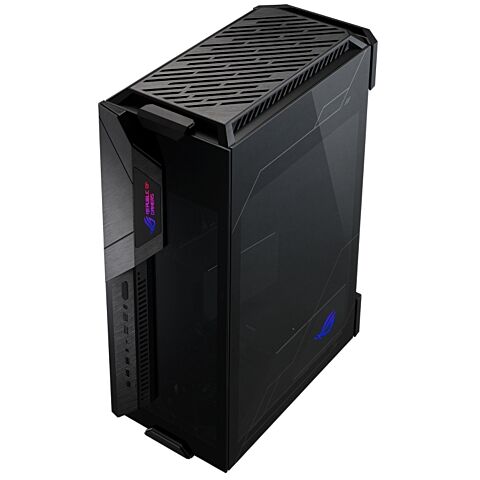

Asus GR101 ROG Z11 Mini-ITX case Black with Tempered Glass

Asus GR101 ROG Z11 Mini-ITX case Black with Tempered Glass, 4 x 2.5" bay, 1 x 2.5"/3.5" combo bay, Front I/O Port --> 2x USB 3.2 Gen1 / 1x USB 3.2 Gen2 Type-C / 2x USB 2.0, Front side & right side Tempered Glass

Overview:

ROG Z11
ROG Z11 Mini-ITX/-DTX gaming case features 4 mm tempered glass panels, patented 11° tilt design, optimized thermal performance, ATX PSU support, extensive connectivity, and Aura Sync
Premium aesthetics: 4 mm tempered glass panels with aluminum frame and integrated Aura Sync lighting create a sleek and stylish appearance
Patented 11 ° tilt design & optimized airflow: Delivers enhanced airflow and cooling around CPU, graphics card, and a back-mounted M.2 SSD
Compatibility with demanding hardware: Supports one ATX PSU, 3-slot graphics card without a riser cable, 240 mm radiator, water-cooling pump and reservoir, and up to five fans
Extensive connectivity : Built-in extension hub and advanced front panel I/O ports with one USB 3.2 Gen 2 Type-C, two USB 3.2 Gen 1 Type-A, and an ARGB control button provide broad connectivity options
Easy cable management and case maintenance: Extra cable routing space from the 11° tilt design, a multifunction cover and cable strips ensure effortless cable management, and removable dust filters provide simple cleaning and maintenance
Dual orientation: Provides the flexibility to choose orientation based on workspace availability, preferences, and component display
Features:

ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility and connectivity. The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware- such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling, Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels.

Patented 11° Tilt Design
Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.

Extra Cable Routing Space
The motherboard tray's 11° tilt creates a maximum of 40 mm of extra space for easy cable management.

Aura Sync RGB Lighting
Integrated addressable RGB LEDs in the front and side panels can be customized using a dedicated control button or with Aura Sync lighting software. These allow ROG Z11 to flash with millions of colors and a range of effects, which can be synchronized with a vast ecosystem of Aura Sync-compatible components for ultimate personalization.

Specifications:

Case Size Mini Tower
Motherboard Support Mini-ITX
Mini-DTX
Drive Bays 4 x 2.5" Bay
1 x 2.5"/3.5" Combo Bay
Expansion Slots (3 expansion slots space)
Front I/O Port 2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
2 x USB 2.0
Tempered Glass Front Side
Right Side
Radiator Support (Rear) 120 mm
240 mm
Cooling Support (Top) 2 x 120 mm
2 x 140 mm
Cooling Support (Rear) 2 x 120 mm
Maximum CPU Cooler Height 130 mm
Maximum GPU Length 320 mm
Maximum PSU Length 160 mm (ATX or SFX)
Removable Dust Filters Front
Top
Bottom
Maximum Cable Management Space 40 mm
Dimensions 194 (W) x 531 (H) x 386 (D) mm
7.64 (W) x 20.9 (H) x 15.2 (D) inch
Weight 8.73 Kg
