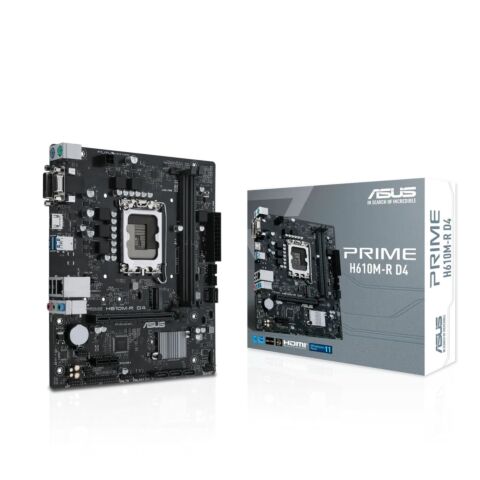

ASUS PRIME H610M-R D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, DDR4-SDRAM, 64 GB
ASUS PRIME H610M-R D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
Memory
| Maximum internal memory |
64 |
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200 |
| Memory channels |
Dual-channel |
Network
| Wi-Fi |
N |
| Ethernet LAN |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| Wake-on-LAN ready |
Y |
Weight & dimensions
| Width |
226 |
| Width |
270 |
| Depth |
193 |
| Depth |
260 |
| Height |
51 |
Processor
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
Graphics
| Parallel processing technology support |
Not supported |
| Maximum resolution |
3840 x 2160 |
Features
| Component for |
PC |
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 |
| Windows operating systems supported |
Windows 10 x64,Windows 11 x64 |
| Motherboard chipset |
Intel H610 |
| Harmonized System (HS) code |
84733020 |
Packaging content
| Cables included |
SATA |
| Drivers included |
Y |
Expansion slots
| Number of M.2 (M) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of chassis fan connectors |
1 |
| TPM connector |
Y |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Y |
| ATX Power connector (24-pin) |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| 12V power connector |
Y |
| Audio connector |
Y |
| Number of COM connectors |
1 |
Rear panel I/O ports
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| PS/2 ports quantity |
2 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
1 |
| Microphone in |
Y |
| USB connector type |
USB Type-A |
| Headphone outputs |
3 |
| HDMI version |
2.1 |
BIOS
| BIOS type |
UEFI AMI |
| BIOS memory size |
128 |
| Clear CMOS jumper |
Y |
Storage controllers
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2,SATA III |
| Number of storage drives supported |
5 |
Logistics data
| Country of origin |
China |
| Harmonized System (HS) code |
84733020 |
