SPECIFICATIONS:
Brand ASUS

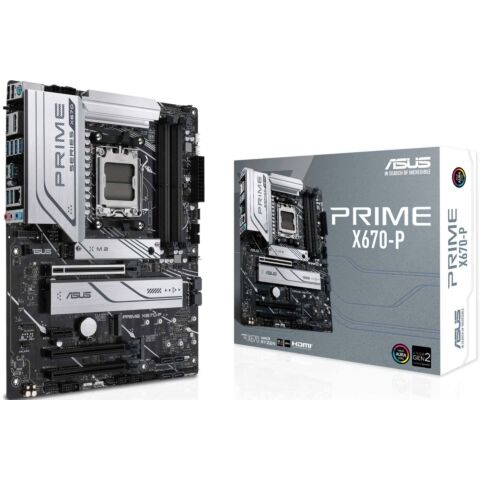

Series PRIME X670-P
Model 90MB1BU0-M0EAY0
CPU AMD Socket AM5 For AMD Ryzen 7000 Series Desktop Processors
Chipset AMD X670 Chipset
Memory 4x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC And Non-ECC, Un-Buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles For Overclocking (EXPO)
OptiMem II
* Supported Memory Types, Data Rate(Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Refer To Www.Asus.Com For Memory Support List.
* Non-ECC, Un-Buffered DDR5 Memory Supports On-Die ECC Function.
Graphics 1x DisplayPort**
1x HDMI Port***
* Graphics Specifications May Vary Between CPU Types.
** Supports Max. 8K@60Hz As Specified In DisplayPort 1.4.
*** Supports 4K@60Hz As Specified In HDMI 2.1.
Expansion Slots AMD Ryzen 7000 Series Desktop Processors
1 X PCIe 4.0 X16 Slot (Supports X16 Mode)
AMD X670 Chipset
2 X PCIe 4.0 X16 Slots (Support X4 Mode)
1 X PCIe 3.0 X1 Slot**
* Please Check The PCIe Bifurcation Table At https://www.asus.com/support/FAQ/1037507/.
** The PCIe 3.0 X1 Slot Shares Bandwidth With The SATA6G_3/4 Ports. When A Device Is Installed On The PCIe 3.0 X1 Slot, The SATA6G_3/4 Ports Cannot Be Used.
Storage Total Supports 3x M.2 Slots And 6x SATA 6Gb/S Ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 5.0 X4 Mode)
M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode)
AMD X670 Chipset
M.2_3 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode)
6x SATA 6Gb/S Ports**
* AMD RAIDXpert2 Technology Supports Both NVMe RAID 0/1/10 And SATA RAID 0/1/10.
** The PCIe 3.0 X1 Slot Shares Bandwidth With The SATA6G_3/4 Ports. When A Device Is Installed On The PCIe 3.0 X1 Slot, The SATA6G_3/4 Ports Cannot Be Used.
Ethernet 1x Realtek 2.5Gb Ethernet
Wireless & Bluetooth V-M.2 Slot Only (Key E, PCIe)*
* Wi-Fi Module is Sold Separately.
USB Rear USB (Total 10 ports)
1x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3x USB 3.2 Gen 2 ports (3 x Type-A)
4x USB 3.2 Gen 1 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1x USB 3.2 Gen 1 connector (supports USB Type-C)
2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
- Supports Up To 24-Bit/192 KHz Playback
Audio Features
- Audio Shielding
- Premium Audio Capacitors
- Dedicated Audio PCB Layers
* A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.
Back Panel I/O Ports 1x USB 3.2 Gen 2x2 Port (1 X USB Type-C)
3x USB 3.2 Gen 2 Ports (3 X Type-A)
4x USB 3.2 Gen 1 Ports (4 X Type-A)
2x USB 2.0 Ports (2 X Type-A)
1x DisplayPort
1x HDMI Port
1x V-M.2 Slot (Key E)
1x Realtek 2.5Gb Ethernet Port
3x Audio Jacks
1x BIOS FlashBack Button
1x PS/2 Keyboard/Mouse Combo Port
Internal I/O Connectors Fan And Cooling Related
1x 4-Pin CPU Fan Header
1x 4-Pin CPU OPT Fan Header
1x 4-Pin AIO Pump Header
3x 4-Pin Chassis Fan Headers
Power Related
1x 24-Pin Main Power Connector
1x 8-Pin 12V Power Connector
1x 4-Pin 12V Power Connector
Storage Related
3x M.2 Slots (Key M)
6x SATA 6Gb/S Ports
USB
1x USB 3.2 Gen 1 Connector (Supports USB Type-C)
2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports
2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports
Miscellaneous
3x Addressable Gen 2 Headers
2x Aura RGB Headers
1x Clear CMOS Header
1x COM Port Header
1x Front Panel Audio Header (AAFP)
1x S/PDIF Out Header
1x SPI TPM Header (14-1pin)
1x 20-5 Pin System Panel Header
1x Thunderbolt (USB4) Header
Special Features ASUS 5X PROTECTION III
- DIGI VRM (- Digital Power Design With DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 Heatsink
- VRM Heatsink Design
ASUS EZ DIY
- BIOS FlashBack Button
- BIOS FlashBack LED
- ProCool
Aura Sync
- Aura RGB Headers
- Addressable Gen 2 Headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM
UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2x SATA 6Gb/S Cables
Miscellaneous
1x I/O Shield
1x Rubber Package For M.2
2x Screw Packages For M.2 SSD
Documentation
1x User Guide
Operating System Windows 11
Windows 10 64-bit
Form Factor ATX Form Factor
30.5cm x 24.4cm
