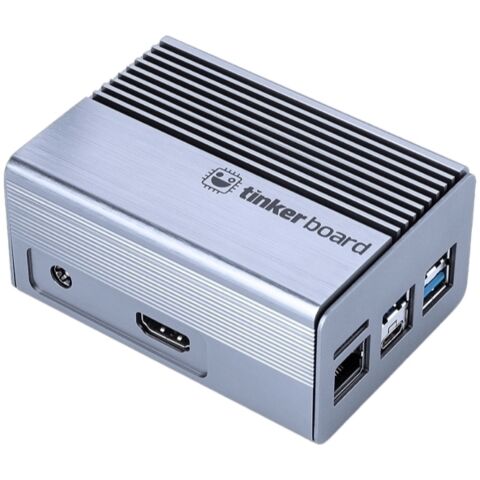

Asus Tinker System 2 Rockchip RK3399 CPU 2GB RAM 16GB storage

Asus Tinker System 2, Rockchip RK3399 CPU, 2GB LPDDR4 On-Board Memory, 16GB eMMC storage, Arm mali T860 MP4 GPU @ 800 MHz GPU, Gigabit Ethernet, 802.11 a/b/g/n/ac & Bluetooth 5.0, 1x HDMI, 1x Type-C (DP), Mipi CSI-2 camera, 3 x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C OTG

Overview:

Tinker System 2
An Arm-based embedded system, featuring 64-bit Armv8 architecture, offers enhanced computing performance with low power consumption.

The all-new ASUS Tinker System 2 is an ultra-compact powerhouse driven by an Arm six-core system on a chip (SoC), with the 64-bit Armv8 architecture and multi-core Mali-T860 GPU. With superb performance, installation flexibility and inherent energy efficiency, Tinker System 2 is the perfect choice for diverse industries and IoT applications - from retail to factory automation and beyond.

Features:

UNCOMPROMISED PERFORMANCE IN ULTRA-COMPACT FORM
Tinker System 2s powerful Arm six-core SoC, with multi-core Mali-T860 GPU means its primed to empower energy-efficient integrated imaging analysis and AI-vision capabilities. The low power consumption and palm-sized design make it ideal for space-constrained locations. It also packs exceptionally powerful computing performance for its size, meaning its as capable at controlling interactive touchscreens and face-recognition systems in smart-retail settings as it is managing object and defect detection on automated production lines.

Face Recognition
Extract facial features and identify individuals with up to 99.7%* accuracy**

Mask Detection & Recognition
Identify individuals even if they are wearing a mask with up to 99.7%* accuracy**

People Counting
Instantly analyze face attributes, including age, gender, mood and head orientation with up to 99.7%* accuracy**

Object Recognition
Auto-detect and calculate the cost of purchasing with up to 95%* accuracy**

ENHANCED CONNECTIVITY FOR EASY EXPANDABILITY
Tinker System 2 offers comprehensive connectivity with a multitude of universal display interfaces, including HDMI-CEC, DisplayPort over USB-C and DSI, for superb flexibility in versatile usage scenarios. Its also engineered with three USB 3.2 Gen 1 Type-A ports for data-transfer speeds that are up to 10X faster than USB 2.0, and a versatile USB 3.2 Gen 1 Type-C port with data transfer, Power Delivery and DisplayPort functionality - ensuring Tinker System 2 has an abundant supply of connections for diverse IoT applications.

STUNNING 4K, DUAL-DISPLAY VISUALS
Tinker System 2 supports dual displays at up to 4K UHD resolution, offering compelling visual output. This makes it a great option for display-oriented retail applications, such as digital signage, interactive kiosks, TV walls and billboards.

COMMERCIAL-GRADE RESILIENCE AND RELIABILITY
Heat dissipation is a crucial factor in achieving maximum performance in embedded solutions. Thats why we engineered Tinker System 2 with a solid aluminum chassis, ensuring stable and efficient thermal performance. It is also fanless, with pre-installed dust covers on the I/O ports - so its ready made for commercial use. Pretested with WiFi module as a system, it offers industry-standard EMC/RF certifications, minimizing testing time and maximizing deployment speed.

SECURE, SAFE AND DIVERSE OPERATING SYSTEM

COMPATIBILITY
Tinker System 2 is compatible with a broad selection of Linux-based embedded operating systems, streamlining the ability to create a tested, trusted platform for vertical applications, such as smart automation, smart transportation and smart retail. It is also ready to run both Debian 10 and Android 11, ensuring access to the best security and privacy features.

EASY AND INTUITIVE SYSTEM MANAGEMENT
Tinker System 2 includes a flexible setup tool to tune every aspect of your build, enabling you to tweak performance settings to perfectly match the way you work. Initial configuration follows just three simple steps:

Step 1: Select the CPU Governor mode.
Step 2: Set the maximum and minimum frequencies for the CPU and GPU.
Step 3: Use the Monitor panel to confirm that the operating system is following the settings configured in Steps 1 and 2.
ASUS IoT Cloud Console
AICC is a unified platform for managing and analyzing big data collected by IoT devices running different operating systems.***

Easy-to-use interface
Upgrade applications over the air
Dashboard and analyzes
ASUS Industrial Android FOTA
Tinker System 2 supports firmware over-the-air (FOTA) roll-out, allowing remote updates with the latest Android firmware, operating system and drivers.

Worldwide content-delivery network
Easy deployment and maintenance
FOTA progress report
*Source: NIST March 2020 Wild FVRT 1:1 test result measured for the CyberLink FaceMe SDK.
** Accuracy depends on object items.
***Currently support Debian only.

Specifications:

Soc Rockchip RK3399
CPU 2 x Arm Cortex -A72 @ 2.0 GHz + 4 x Arm Cortex -A53 @ 1.5 GHz
GPU Arm Mali -T860 MP4 GPU @ 800 MHz
Memory 2/4GB* Dual-CH LPDDR4 On-board
Storage 16/32GB* eMMC
Ethernet 10/100/1000Mbps
1 x Realtek RTL8211E/F
Wireless 802.11 a/b/g/n/ac & Bluetooth 5.0
1 x Realtek RTL8822CE
2 x I-PEX MHF 4 (2T2R)
Display HDMI
1 x Supports up to 4096 x 2160 @ 60 Hz (w/ Audio)
Type-C (DP)
1 x Supports DP 1.2 up to 4096 x 2160 @ 60 Hz
MIPI DSI
1 x Supports 4 lane up to 6 Gbps, 1920 x1080 @ 60 Hz (22-pin)Multi Display
HDMI+Type-C, HDMI+MIPI DSI, Type-C+MIPI DSI
Camera MIPI CSI-2
1 x Supports 2 lane up to 3 Gbps (15-pin)
Rear I/O 3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C OTG
1 x Ethernet
1 x HDMI
Internal I/O 1 x 2-pin Recovery Header
1 x 2-pin Power-on Header
1 x 2-pin Reset Header
1 x 2-pin Debug UART Header
1 x 2-pin DC Fan Header
1 x 2-pin RTC Battery Header
Power 12 to 19.5 VDC, barrel jack (5.5/2.5 mm)
Environment Operation Temperature: 0°C ~ 50°C
Storage Temperature: -40°C ~ 85°C
Relative Humidity: 0% ~ 85% (Non condensing)
Others Operating System
Linux Debian 10, Android (AOSP) 11
Dimensions
3.583" x 2.638" x 1.772" (91 x 67 x 45 mm)
