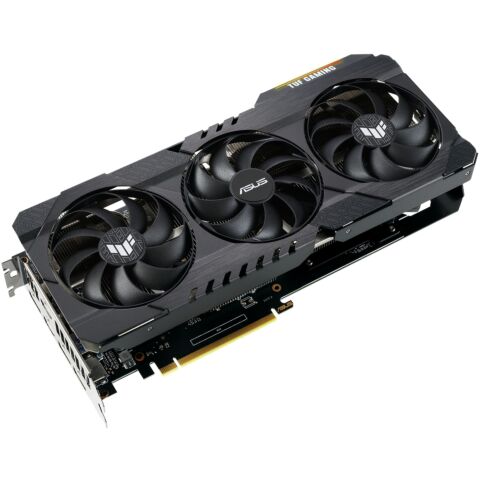

Asus TUF Gaming Geforce RTX 3060 V2 OC Edition 12GB GDDR6 PCI-e 4.0 x16 Graphics

Asus TUF Gaming Geforce RTX 3060 V2 OC Edition 12GB GDDR6 PCI-e 4.0 x16 Graphics card LHR, PCI Express 4.0, 12GB GDDR6 Video Memory, 1882 MHz boost clock, 3584 CUDA Core, 192-bit Memory Interface, 7680x4320 Digital Maximum Resolution, 2x HDMI 2.1, 3x Display Port 1.4a, HDCP support, 4 Maximum Display support, 1x 8 pin power connectors, 2.7 slot

Overview:

ASUS TUF Gaming GeForce RTX 3060 V2 OC Edition 12GB GDDR6 buffed-up design with chart-topping thermal performance.

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the worlds fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
OC edition : Boost clock 1882 MHz (OC mode)/ 1852 MHz (Gaming mode)
Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
An all-aluminum shroud and metal backplate enhance durability.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Features:

Heatsink - MaxContact
To get heat up off the die and into the heatsink array, weve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

Heatsink - 2.7-slot Design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the cards large, 2.7-slot footprint.

PCB - TUF Components
Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

Design - Fresh Shroud
An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

Stainless Steel I/O Bracket
Dual BIOS
Vented Backplate
Design - Its Cooler Out Back
The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the cards default performance profile without software.

Design - Functional Front
The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. An 8-pin connector fulfills the power demands of the GeForce RTX 3060, and onboard LEDs light up if the power connectors are not plugged in correctly.

software - GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Specifications:

Graphic Engine NVIDIA GeForce RTX 3060
Bus Standard PCI Express 4.0
OpenGL OpenGL 4.6
Video Memory 12GB GDDR6
Engine Clock OC Mode - 1882 MHz (Boost Clock)
Gaming Mode - 1852 MHz (Boost Clock)
CUDA Core 3584
Memory Speed 15 Gbps
Memory Interface 192-bit
Resolution Digital Max Resolution 7680 x 4320
Interface Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support 4
NVlink/ Crossfire Support No
Accessories 1 x TUF certificate of Reliability
1 x Collection card
1x Speedsetup Manual
Software ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions 11.81 " x 5.63 " x 2.13 " Inch
30.1 x 14.3 x 5.4 Centimeter
Recommended PSU 750W
Power Connectors 1 x 8-pin
Slot 2.7 Slot
