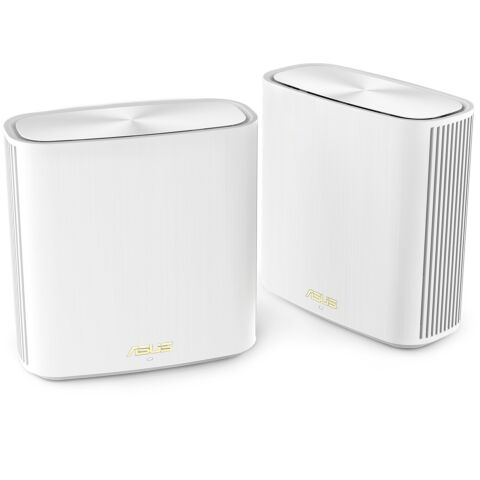

Asus XD6S AX5400 Whole-Home Dual-Band Mesh WiFi 6 system - 2 pack, 574 + 4804 Mbps AX5400 Ultimate AX performance, Internal antenna x 6, 1.5 GHz tri-core Processor, 128 MB Flash, 512 MB RAM, 1x RJ45 for Gigabit BaseT for WAN, 1x RJ45 for Gigabit BaseT for LAN
Features:
Whole-home Coverage
The ZenWiFi XD6 system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home!
Smart & Flexible Backhaul Configuration
ASUS ZenWiFi XD6 gives you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection.
WiFi 6 - True 8K Streaming
ZenWiFi XD6 puts your WiFi into top gear! With a total bandwidth of up to 5400 Mbps, it's up to 2.2X faster than WiFi 5 routers.
What makes ZenWiFi XD6 setup so easy?
One-time setup, with auto synchronization for all the hubs in each package
Hassle-free: each unit can work as the main router or an extender node
Make the Internet a Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Parental Controls - More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via ZenWiFi XD6 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi XD6, you can take your home network with you wherever you go - and say goodbye to web-based third-party VPNs!
AiMesh Technology - Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Specifications:
Model Name XD6 (W-2-PK)
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment AX5400 ultimate AX performance : 574+4804 Mbps
AX technology Yes
Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna internal antenna x 6
Transmit/Receive 2.4GHz 2x2
5GHz 4x4
Processor 1.5 GHz tri-core processor
Memory XD6
256 MB Flash
512 MB RAM
XD6S
128 MB Flash
512 MB RAM
Boosts speed OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency 2.4 G Hz / 5 GHz
Ports XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1
Button WPS Button, Reset Button
LED Indicator Power x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
Package content ZenWiFi XD6
RJ-45 cable
Power adapter
Warranty card
Quick start guide
ZenWiFi XD6S
RJ-45 cable
Power adapter
Wall mount kit
Warranty card
Quick start guide
*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.
Product Weight (g) XD6: 435 g
XD6S: 425 g
Remark Content may vary in different regions and packages.
AiMesh AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP ASUS Router APP : Yes
Game Game Boost/acceleration : No
WTFast : No
Alexa Support Alexa skill : Yes
IFTTT Support IFTTT : No
AiProtection AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes
Parental Control Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes
Wireless IPv6 : Yes
MU-MIMO : Yes
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 9
Guest Network Connection time limit : Yes
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes
WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : No
Android tethering : No
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes
LAN DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
USB application HDD hibernation : No
Safely Remove disk : No
AiCloud : No
Download master : No
AiDisk : No
Media Server : No
Time Machine : No
Samba Server : No
FTP Server : No
Shared Folder privileges : No
Administration Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
