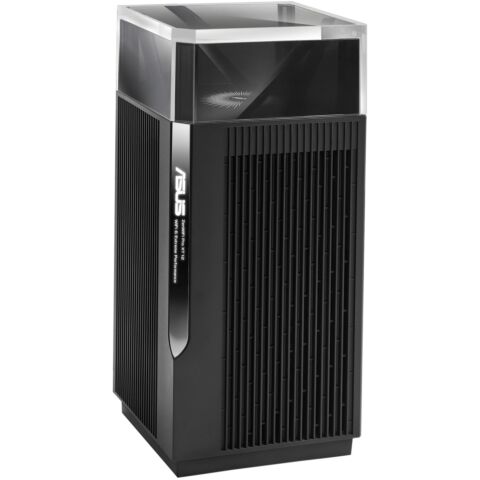

Asus ZenWiFi Pro XT12 AX11000 Whole-Home Tri-Band Mesh WiFi 6 system - 1 pack

Asus ZenWiFi Pro XT12 AX11000 Whole-Home Tri-Band Mesh WiFi 6 system - 1 pack, Coverage up to 610 square meter, 11Gbps WiFi, 3 ssids, AX11000 Ultimate AX performance - 1148+4804+4804 Mbps, 10x internal antenna, 2.0 GHz Quad-Core 64bits Processor, 256 MB Flash, 1GB RAM, 1x RJ45 for 2.5G BaseT for WAN, 1x RJ45 for 2.5G BaseT for LAN, 2x RJ45 for gigabits BaseT for LAN

Features:

ZenWiFi Pro is the new paradigm for whole-home mesh WiFi, combining performance and beauty in a perfectly balanced package. It takes the productivity and entertainment capabilities of your whole-home network to the next level, with scalable capacity for the new generation of home networking ecosystems.

Massive Capacity, Lightning-Fast Speed
WiFi 6 gives ZenWiFi Pro XT12 up to 4X the capacity and 2X the speed of WiFi 5, thanks to advanced technologies like BSS Color, uplink and downlink OFDMA, and 160 MHz MU-MIMO. Network efficiency is improved too, so your devices get all the bandwidth they need. If you have lots of different networked devices, such as PCs, laptops, smartphones, NAS and smart home devices, ZenWiFi Pro XT12 is your ideal choice.

Expanded UNII-4 Spectrum
ASUS ZenWiFi Pro XT12 supports an expanded UNII-4 spectrum, which features a third and clean 160 MHz channel on the 5 GHz band. This increases mesh backhaul capacity to deliver reliable and high performance for your wireless devices.

More Streams, More Bandwidth
ZenWiFi Pro XT12 is a 12-stream device, with combined total data rates up to 11000 Mbps. This boosts its capacity for transmitting and receiving data to large numbers of devices simultaneously, reducing dead zones and giving ZenWiFi Pro XT12 the performance edge for the busiest home networks.

RangeBoost Plus
ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, and it improves coverage for all your WiFi devices including legacy devices. Using a next-gen flagship Broadcom WiFi 6 chipset and a 2.0GHz 64-bit quad-core CPU, RangeBoost Plus leverages multiple exclusive ASUS technologies to dramatically improve WiFi signal range and coverage by up to 38%*

*Measured using WiFi 6 client connected at 200 Mbps to WiFi 6 router with RangeBoost Plus, compared to same WiFi 6 client connected at 200 Mbps to WiFi 5 router without RangeBoost Plus.

Easy Scalability for Flexible Networking
With ASUS AiMesh, it's easy to add extra nodes for improved coverage or new features - simply add any AiMesh-compatible router!

Dual 2.5G LAN and WAN Ports
ZenWiFi Pro XT12 has both a 2.5G LAN port and a 2.5G WAN port, so you can enjoy full 2.5 Gbps speeds all the way from a compatible ISP to your compatible wired devices.

Flexible Backhaul Choice
ZenWiFi Pro XT12 lets you allocate either the second 5 GHz band or wired Ethernet for the backhaul connection between nodes. Alternatively, you can choose automatic mode and let ZenWiFi Pro XT12 choose the best connection type based on your environment. The choice is always yours!

Engineered for Performance
ZenWiFi Pro XT12 is engineered to deliver maximum WiFi performance - with throughput improved by up to 18%* - from the latest Broadcom WiFi 6 chipset and CPU . The eight external antennas are carefully located and angled within the special transparent compartment on the top of the router, minimizing interference while maximizing signal coverage.

*The data compares with former WiFi 6 platform.

Commercial-Grade Security for Your Home
Home network security is crucial when you have multiple connected devices, especially if your network hosts devices without virus protection, such as IoT devices. ZenWiFi Pro XT12 includes lifetime free AiProtection Pro, including advanced Parental Controls, and also uses the latest WPA3 security protocol.

More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via ZenWiFi Pro XT12 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi Pro XT12, you can take your home network with you wherever you go - and say goodbye to web-based third-party VPNs!

Specifications:

Model Name XT12(1-PK)
XT12(2-PK)
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment AX11000 ultimate AX performance : 1148+4804+4804Mbps
AX technology Yes
Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
Antenna internal antenna x 10
Transmit/Receive 2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
Processor 2.0 GHz quad-core 64bits processor
Memory 256 MB Flash
1GB RAM
Boosts speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency 2.4G Hz, 5 GHz-1, 5 GHz-2
Ports RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2
Button WPS Button, Reset Button, Power Switch
LED Indicator Power x 1
Status x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Package content ZenWiFi Pro XT12
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g) 1500 g
AiMesh AiMesh
Primary AiMesh router
AiMesh node
Router APP ASUS Router APP
Alexa Support Alexa skill
IFTTT Support IFTTT
AiProtection AiProtection Pro
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control Parental Control
Traffic Control Adaptive QoS
Traffic Monitor
Traffic Analyzer
Wireless IPv6
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3-Personal, WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : Max 9 rules
WPS
WiFi MAC address filter
Maximum MAC filters : Max 64 rules
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
WAN Dual WAN
WAN Aggregation
DMZ
DDNS
Let's Encrypt
LAN IGMP snooping
IPTV
LAN Link Aggregation
VPN VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
Administration Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Firewall
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL)
Diagnosis tools
Feedback system
System log
