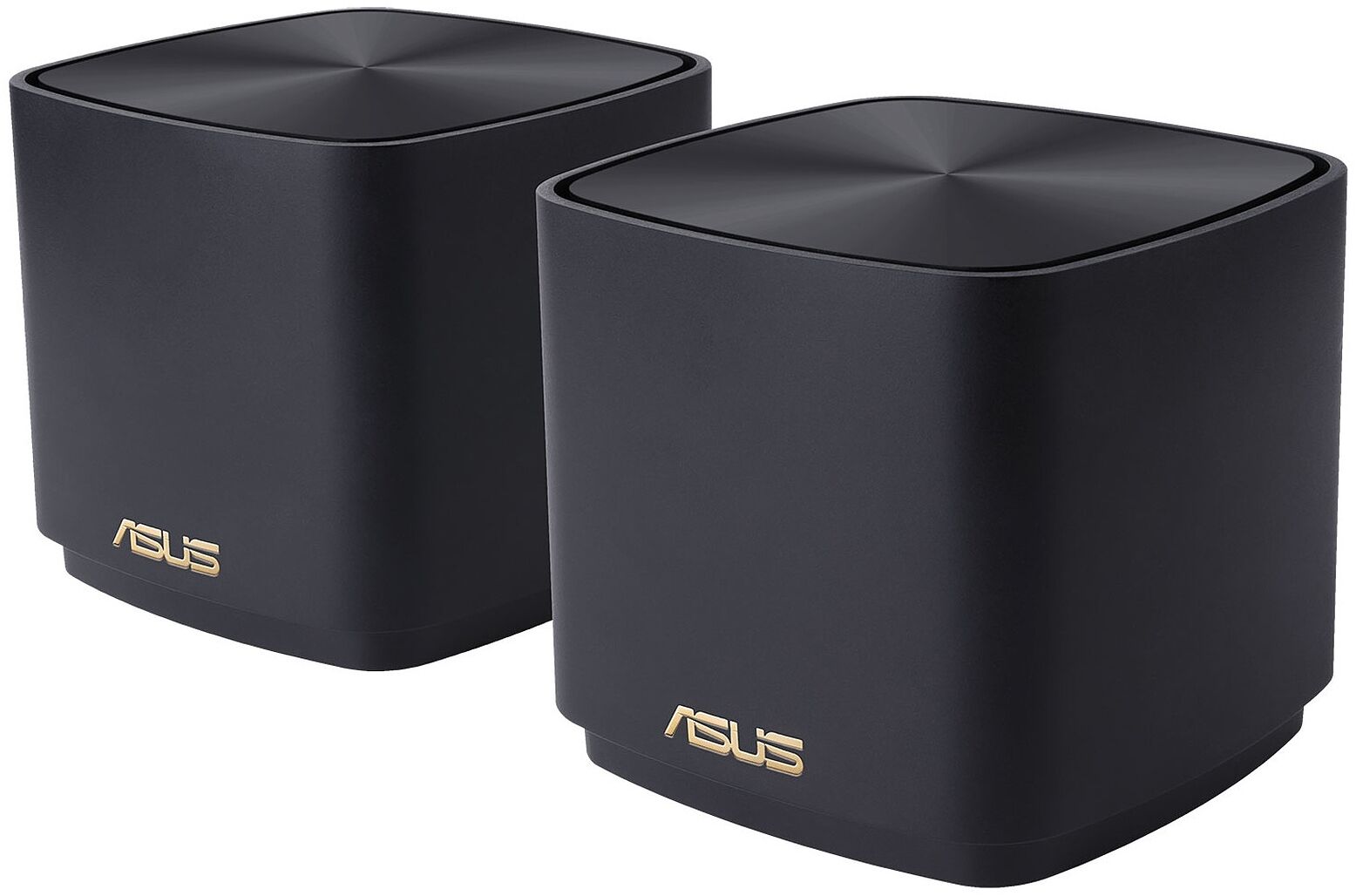

Asus ZenWiFi XD5 AX3000 WiFi 6 Dual-Band Mesh system - 2 Pack, 2x internal Dual-Band antenna, 2.4 GHz / 5 GHz operating Frequency, 1x RJ45 for gigabits BaseT for WAN/LAN, 1x RJ45 for gigabits BaseT for LAN, AiMesh
Features:
Whole-home Coverage
The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 160 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
What makes ZenWiFi XD5 setup so easy?
One-time setup, with auto synchronization for all the hubs in each package
Use a network cable to connect your modem to the WAN port of one XD5 . This ZenWiFi XD5 will be the AiMesh router, and the other two ZenWiFi XD5 will be the AiMesh nodes.
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services - including Alexa skills - and is available in charcoal or white to suit your decor.
AiMesh Technology Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Specifications:
Model ASUS ZenWiFi XD5
Model Name XD5 (W-2-PK)
AX technology Yes
Antenna Internal dual-band antenna x 2
Processor 1.7 GHz quad-core processor
Memory 128 MB Flash
512 MB RAM
Boosts speed MIMO technology
Operating Frequency 2.4 G Hz / 5 GHz

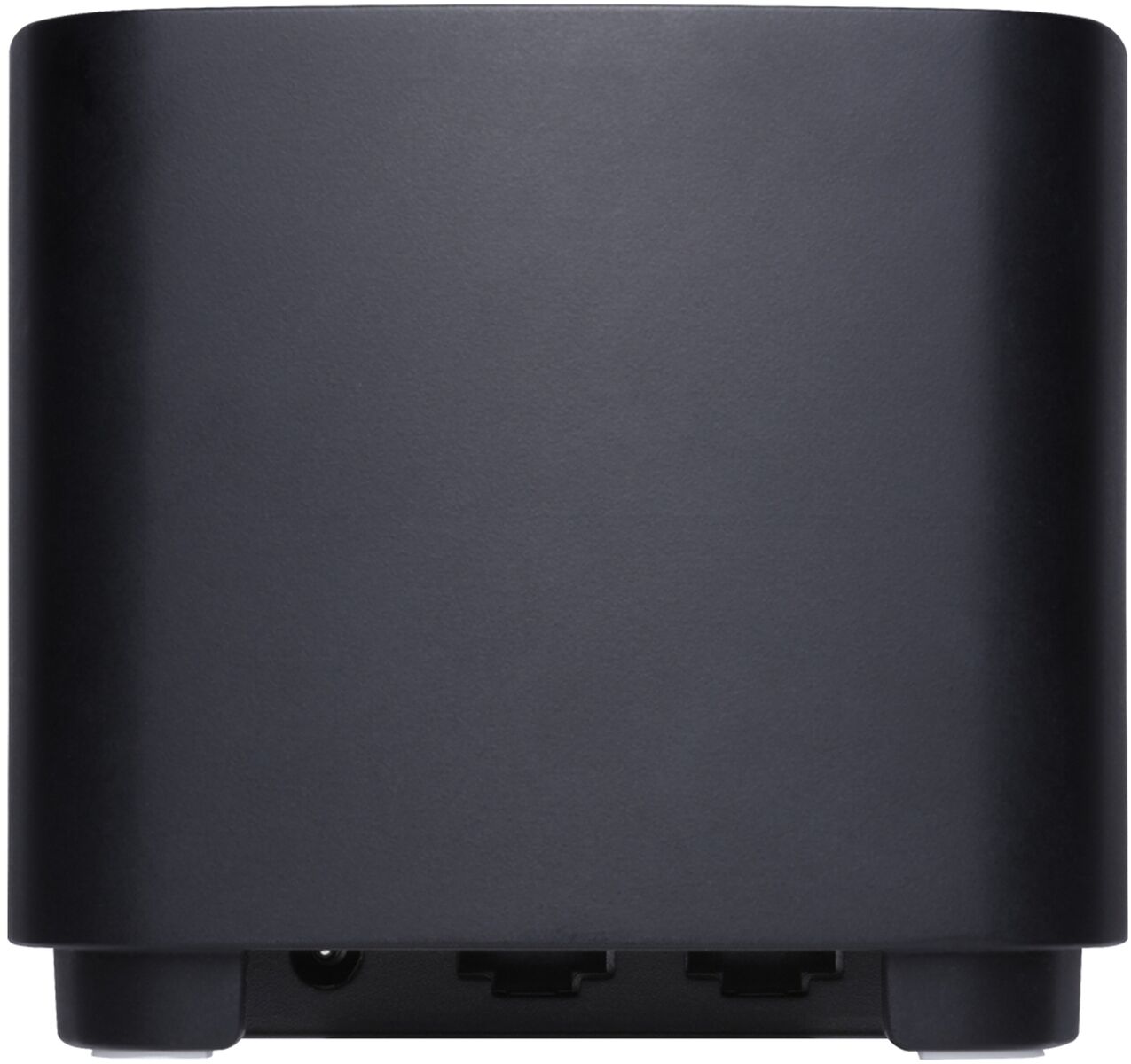

Ports RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Button WPS Button, Reset Button
LED Indicator Power x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
Package content ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
Product Weight (g) 307 g
AiMesh AiMesh
Primary AiMesh router
AiMesh node
Router APP ASUS Router APP
Alexa Support Alexa skill
AiProtection AiProtection Classic
Malicious site blocking
Infected Device Prevention and Blocking
Parental Control Parental Control
Parental Control Customized Internet schedule
Traffic Control Bandwidth Monitor
Bandwidth limiter
Traditional QoS
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Wireless IPv6
Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
UTF-8 SSID
Guest Network
Guest Network Connection time limit
WPS
WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Android tethering
Port forwarding
Port triggering
DMZ
DDNS
NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Let's Encrypt
LAN IGMP snooping
IPTV
Manually assign IP address
VPN VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
Administration Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
