SPECIFICATIONS:
Brand ASUS
Series WiFi 6 Routers

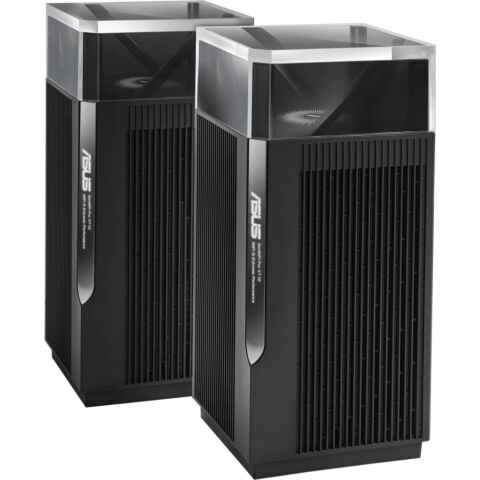

Model ZenWiFi Pro XT12 (2-PK)
Standards Implemented IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
WiFi Data Rates 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
Operating Frequency 2.4G Hz / 5.0 GHz
Antenna Design Internal antenna x10
Simultaneous Transmit/Receive
MIMO technology
2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
Platform
Processor ARM64 2.0GHz 4-Core Processor
Memory 256 MB Flash, 1GB RAM
Operating mode Router, Mesh Node
Boost Speed Features OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
AiMesh Capabilities Primary AiMesh router
AiMesh node
Design
Ports 1x 2.5 Gigabit Ethernet RJ-45 WAN Port
1x 2.5 Gigabit Ethernet RJ-45 LAN Port
2x Gigabit Ethernet RJ-45 LAN Ports
Buttons WPS Button, Reset Button, Power Button
LED Indicators Power x 1
Status x 1
General
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Weight 750g (1.5kg)
Router Administration ASUS Router APP
Web Browser
Integrations Supports Amazon Alexa Skills
Supports IFTTT (Learn More: Click Here!)
Box Contents ZenWiFi Pro XT12 Wireless Router x2
RJ-45 Cable
Power Adapter x2
Quick Start Guide
Warranty Card
Advanced Features
Parental Controls Parental Controls (Block websites)
Customized Internet schedule
Traffic Controls Adaptive QoS
Traffic Monitor
Traffic Analyzer
Wireless IPv6
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Personal, WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : Max 9 rules
WPS
WiFi MAC address filter
Maximum MAC filters : Max 64 rules
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
WAN Dual WAN
WAN Aggregation
DMZ
DDNS
Let's Encrypt
LAN IGMP snooping
IPTV
LAN Link Aggregation
VPN VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
General Administration Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Firewall
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL)
Diagnosis tools
Feedback system
System log
