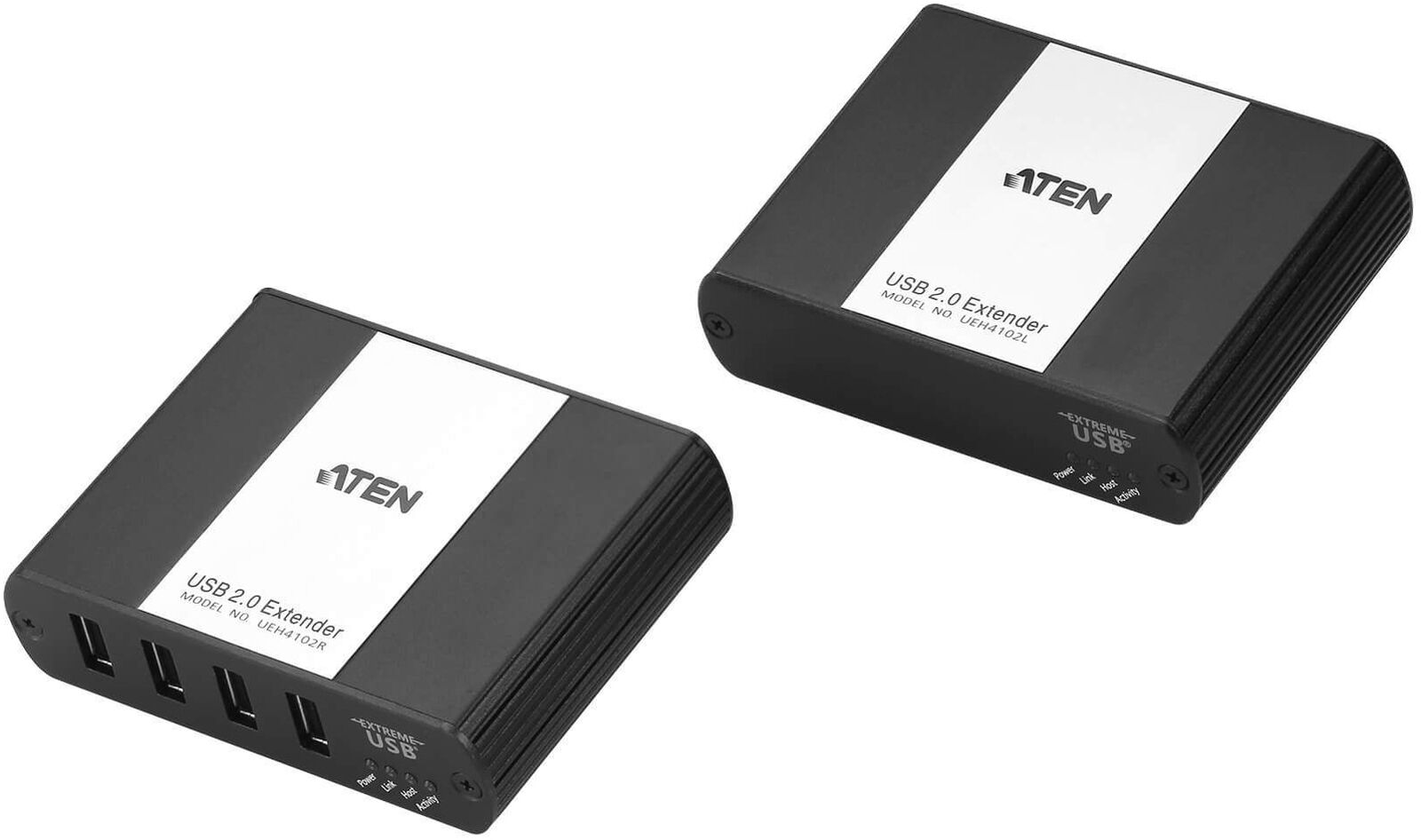

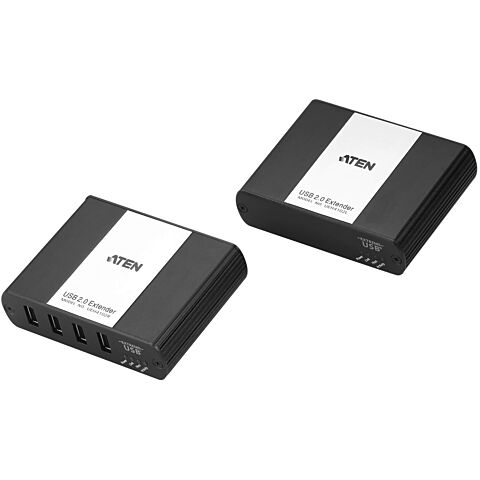

Aten UEH4102 4-port USB 2.0 CAT5 extender over LAN, Up to 100m between extender and Switch
Overview:
4-Port USB 2.0 Cat 5 Extender over LAN
UEH4102
Extends USB transmission over a Gigabit Ethernet Local Area Network (LAN)
ExtremeUSB - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Pre-paired networked configuration through MAC Address for simple installation. No pairing action required
Up to 100m between extender and switch and between switches over CAT 5e/6/7 cables
Features:
Extends USB transmission over a Gigabit Ethernet Local Area Network (LAN)
ExtremeUSB - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Pre-paired networked configuration through MAC Address for simple installation. No pairing action required
Supports automatic connection link between Local and Remote units through DHCP
Up to 100m between extender and switch and between switches over CAT 5e/6/7 cables
Operates with all USB peripherals - flash drives, keyboards, mice, webcams, interactive whiteboards, and more
Works with all major operating systems: Windows, OS X, and Linux
The UEH4102 4-port USB 2.0 Extender over LAN incorporates patented ExtremeUSB technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.
UEH4102 provides true USB 2.0 extension at up to 480 Mbps across a Gigabit Ethernet Local Area Network (LAN). The Local and Remote units are pre-paired with each other through MAC address - no pairing action required during installation.
A true plug-and-play solution, the UEH4102 is compatible with all leading operating systems, and supports all USB peripherals, such as keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB device. The UEH4102 harnesses the full capability of the USB 2.0 standard that provides a durable, reliable and high-quality data communication.
Package Contents
1x UEH4102L 4-Port USB 2.0 Cat 5 Extender over LAN (Local unit)
1x UEH4102R 4-Port USB 2.0 Cat 5 Extender over LAN (Remote unit)
1x Power Adapter
1x USB 2.0 Type-A to Type-B Cable
1x User Instructions
Specifications:

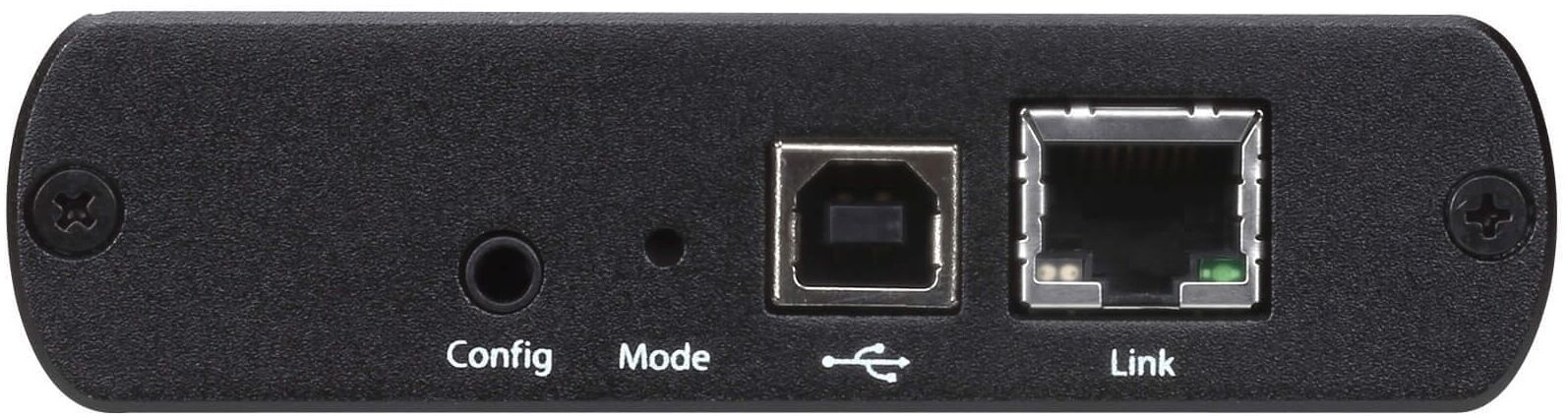

Function UEH4102L
Connectors
USB Port 1 x USB Type B Female
Link 1 x Gigabit Ethernet Female
Power N/A
USB Specification USB 2.0 High/Full/Low Speed
USB Devices Supported N/A
Power Consumption DC5V:15WBTU
Network Protocol 10/100/1000BASE-T Ethernet (recommend 1000BASE-T Ethernet for best performance)
Environmental
Storage Temperature -20° - 70°C
Humidity 0 - 80% RH, Non-condensing
Operating Temperature 0° - 50° C
Physical Properties
Weight 0.19 kg ( 0.42 lb )
Housing Metal
Dimensions (L x W x H) 10.00 x 7.60 x 2.60 cm
(3.94 x 2.99 x 1.02 in.)
Function UEH4102R
Connectors
USB Port 4 x USB Type A Female
Link 1 x Gigabit Ethernet Female
Power 1 x DC Power Jack
USB Specification USB 2.0 High/Full/Low Speed
USB Devices Supported 4 USB Devices
Power Consumption DC5V:15WBTU
Network Protocol 10/100/1000BASE-T Ethernet (recommend 1000BASE-T Ethernet for best performance)
Environmental
Storage Temperature -20° - 70°C
Humidity 0 - 80% RH, Non-condensing
Operating Temperature 0° - 50° C
Physical Properties
Weight 0.19 kg ( 0.42 lb )
Housing Metal
Dimensions (L x W x H) 10.00 x 7.60 x 2.60 cm
(3.94 x 2.99 x 1.02 in.)
