Description:

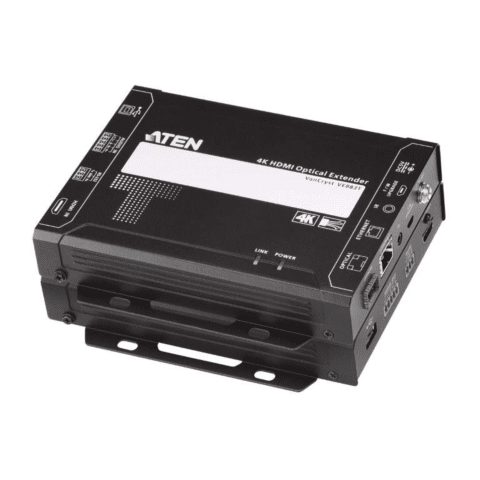

Aten 4K HDMI Optical Extender up to 300m with Transmitter and Receiver
The VE883 is a fiber-based extender designed to extend uncompressed 4K signal up to 300 m (using VE883K1) or 10 km (using VE883K2) over duplex fiber optic cables. The VE883 meets HDMI Specifications, including 3D, Deep Color (up to 12 bit), and signaling rates (up to 10.2 Gb) to ensure superior video quality. With ATEN’s exclusive FarSmooth technology, the VE883 prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required. The VE883 features an HDMI input and output, analog audio input and output, USB2.0, IR, RS-232 control port, and a Gigabit Ethernet port. For point-to-point extension, the VE883 can receive fiber optic cables by inserting SFP+ modules to its optic port.
To avoid bulky cable setup, the VE883 guarantees a simple and fast solution for optimum transmission of Ethernet, IR, HDMI, RS-232, and USB signals up to 10 km simply via a set of duplex optic fiber. The VE883 is also USB transparent, making it compatible with a wide range of USB peripherals.
Engineered to meet the latest trend of lossless 4K and long distance signal extension, VE883 is suitable for where long distance transmission is a must and little interference is allowed, such as in traffic station and modern office buildings.
Features
Extends HDMI video, stereo audio, IR, RS-232 control, and Ethernet signals over duplex fiber optic cabling
Applies duplex fiber optic cables to connect the transmitter and the receiver
Supports ultra long distance transmission up to 10 km*
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Supports lossless 4K video up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
FarSmooth – ATEN’s exclusive FarSmooth technology prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.
Supports Gigabit Ethernet Channel
Supports USB 2.0, with a maximal transfer rate of 25MByte/s
Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
Supports batch upgrades using Firmware Upgrade Utility
Built-in 8 kV / 15 kV ESD protection
Plug-and-play
Hot-pluggable
Rack-mountable
Technical Specification
VE883T - Video Input
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: Up to 5 m
VE883R - Video Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: Up to 10 m
Video
Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock: 340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP 2.2 Compatible
Max. Resolution
4096x2160/3840x2160@60Hz (4:2:0);
4096x2160/3840x2160@30Hz (4:4:4)
Max. Distance: 1 x SFP Module, up to 300m (MM, OM3, Black)
Connectors
Unit To Unit: 1 x bi-directional SFP (LC)
Firmware Upgrade: 1 x Micro USB (Type B) Female (Black)
Power: 1 x DC Jack with locking
Package Contents
1x VE883T 4K HDMI Optical Transmitter
1x VE883R 4K HDMI Optical Receiver
2x Power Adapters
2x Terminal Block 3 Pole
2x Terminal Block 5 Pole
1x IR Receiver
1x IR Emitter
1x USB Cable
2x HDMI LockPro
2x SFP Modules
1x User Instructions
