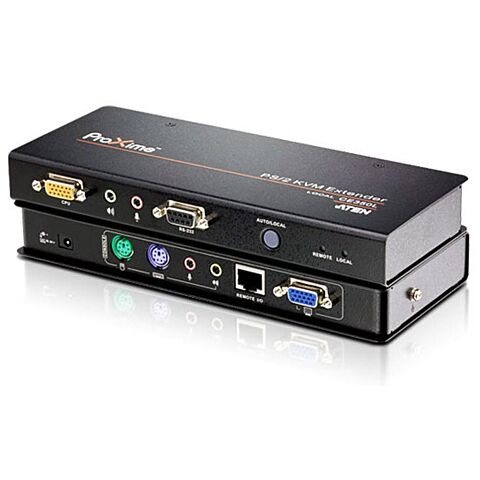

Aten CE350 PS/2 VGA/Audio Cat 5 KVM Extender

Special Price R 4,781.00 Regular Price R 6,501.00
In stock
SKU
CE350-AT-G
  • Brands - Cliqtosave Online: Aten
Aten CE350 PS/2 VGA/Audio Cat 5 KVM Extender
More Information
BrandAten
Tools & Accessories TypeAV Extenders

Details

Aten CE350 PS/2 VGA/Audio Cat 5 KVM Extender (1600 x 1200@150m) with 1.8m with 230v Adapter

Overview:

The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE350 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

Features:

Local and Remote Units connect at distances up to 150 m using Cat 5e cable
Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC) and storage of settings
RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
Audio Enabled - supports stereo speakers and microphone
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
Superior Audio - no loss in audio quality at 150 m
Supports Wide Screen formats *
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install - no software required - connecting cables to the devices is all it takes

Specifications:

Function CE350L
Connectors
Console Ports 1 x 6-pin Mini-DIN Female (Purple)
1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Green)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x SPHD-17 Female (Yellow)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
RS-232 1 x DB-9 Female (Black)
Unit To Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack
LEDs
Local 1 (Green)
Remote 1 (Green)
Link N/A
Picture Compensation N/A
Pushbuttons
Operating Mode Selection 1 x Pushbutton
Emulation
Keyboard / Mouse PS/2
Video 1920 x 1200 @ 60Hz (30 m);
1600 x 1200 @ 60Hz (150 m );
DDC, DDC2, DDC2B
Power Consumption DC5.3V:2.87W:18BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Function CE350R
Connectors
Console Ports 1 x 6-pin Mini-DIN Female (Purple)
1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Green)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports N/A
RS-232 1 x DB-9 Male (Black)
Unit To Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack
LEDs
Local N/A
Remote 1 (Red)
Link 1 (Orange)
Picture Compensation 1 (Blue)
Pushbuttons
Operating Mode Selection N/A
Emulation
Keyboard / Mouse PS/2
Video 1920 x 1200 @ 60Hz (30 m);
1600 x 1200 @ 60Hz (150 m );
DDC, DDC2, DDC2B
Power Consumption DC5.3V:4.85W:26BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)
