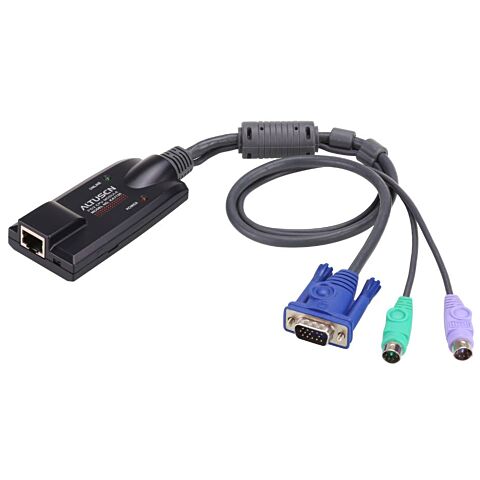

Aten KA7120 PS/2 VGA KVM Adapter with Composite Video Support

Aten KA7120 PS/2 VGA KVM Adapter with Composite Video Support, Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances, Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port, Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking) *

Overview:

The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Features:

Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
Compact size

Specifications:

Connectors
Link 1 x RJ-45 Female
Computer 2 x 6-pin Mini-DIN Male
1 x HDB-15 Male
LEDs
Online 1 (Green)
Power 1 (Orange)
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Physical Properties
Housing Plastic
Weight 0.15 kg ( 0.33 lb )
Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm
(3.54 x 1.69 x 0.86 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
