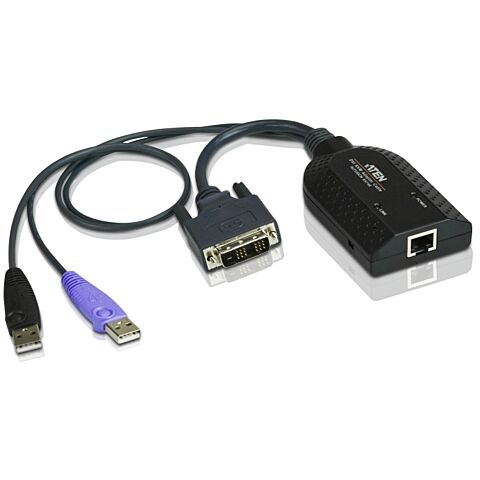

Aten KA7166 USB DVI Virtual Media KVM Adapter with Smart Card Support

Aten KA7166 USB DVI Virtual Media KVM Adapter with Smart Card Support

Overview:

The KA7166 KVM Adapter Cable connects a KVM switch to the DVI-D video and USB ports of a target computer. The KA7166 supports DVI-D output and provides a USB plug to connect a target computer for Smart Card/CAC support * . With its small size and light weight design, it represents the next generation of KVM Adapter Cables - offering superior signal compensation and delay skew technologies for greatly enhanced video quality.

Features:

Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
Keyboard and mouse emulation - keeps your server functioning smoothly when its disconnected from the switch's KVM port or is relocated to a different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
Compact size
Virtual Media Support**
Smart Card / CAC Reader Support

Specifications:

Connectors
Link 1 x RJ-45 Female
Computer 2 x USB Type A Male
1 x DVI-D Male
LEDs
Link 1 (Green)
Power 1 (Orange)
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Physical Properties
Housing Plastic
Weight 0.14 kg ( 0.31 lb )
Dimensions (L x W x H) 9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
