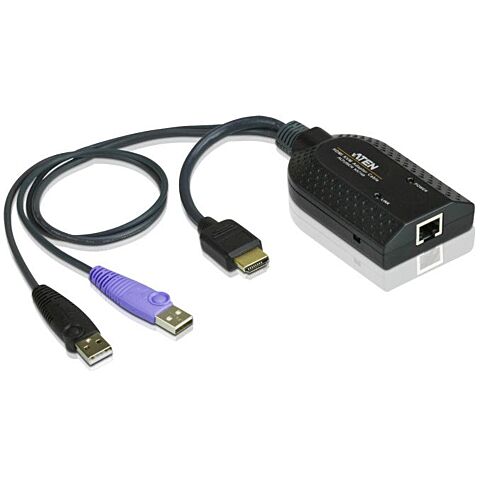

Aten KA7168 USB HDMI Virtual Media KVM Adapter with Smart Card Support
Overview:
The KA7168 KVM Adapter Cable connects a KVM switch to the HDMI video and USB ports of a target computer. The KA7168 supports HDMI output and provides a USB plug to connect a target computer for Smart Card/CAC support*. With its small size and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew technologies for greatly enhanced video quality.
Features:
Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
Compact size
Virtual Media Support
Smart Card / CAC Reader Support
Specifications:
Connectors
Link 1 x RJ-45 Female
Computer 2 x USB Type A Male
1 x HDMI Male
LEDs
Link 1 (Green)
Power 1 (Orange)
Physical Properties
Housing Plastic
Weight 0.11 kg ( 0.24 lb )
Dimensions (L x W x H) 9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
