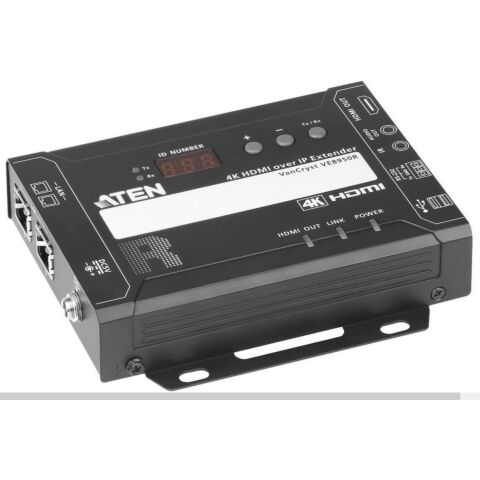

Aten VE8950R 4K HDMI over IP Receiver unit

Aten VE8950R 4K HDMI over IP Receiver unit. visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch. NOTE: requires transmitter pair.

Overview:

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

Features:

Lightweight Compression with Ultra-low Latency

Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
Ensures stunning quality video using ATEN advanced video lossless compression technology
EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
Limitless Scalability and Flexibility

Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*
Collaboration with ATEN Control System

Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8950R via CLI Telnet or RS-232 protocol
Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad
Spontaneous Scheduling Management

Offers an user-friendly scheduling management function for users to pre-plan the display schedule
Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
Multiple profiles can be arranged to play in any order over a selected period of time
No Complicated IP Setup

Simple configuration that requires no extensive IT experience or extra learning
Effortlessly switches among input sources via top panel pushbuttons
Web GUI-Based Management, No Additional Server PCs or Software Required

Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool
Go Further For Less with Daisy Chaining*

Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
* Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.
Video Wall Support

Supports up to 8 x 8 video wall (64 displays)*
Supports horizontal or vertical (90° and 270° rotation) display orientation
Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
*Depends on your network architecture, please contact ATEN representatives for more details.
Embedded / De-embedded Audio Support

audio stream can be extracted from the HDMI stream and delivered as a separate audio signal
Multiple Control Channels

Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*
Bi-directional IR Channel – IR transmission is processed one way at a time
RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
Note: *Each VE8950T transmitter can be controlled by a total of 4 USB touch screens installed to VE8950R receivers.

Specifications:

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3 m
Video
Max. Data Rate Average: 150 ~ 500Mbps
Compliance HDMI
HDCP Compatible
Max. Resolutions / Distance Up to 4K@100m (Cat 5e/6, point to point)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connectors
Unit To Unit 2 x RJ-45 Female
Power 1 x DC Jack (Black) with locking
Control
IR 1 x Mini Stereo Jack Female (Black)
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8
Stop Bits:1, no parity and flow control
USB 2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection 3 x Push buttons
Power Consumption DC5V:4.53W:43BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)
Input Resolutions 640x480p @ 59.94/60Hz (4:3)
720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)
1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120 Hz (16:9)
1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz
1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9)
1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120Hz (16:9)
720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9)
720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9)
720 (1440)x288p @ 50Hz (4:3)/(16:9)
720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9)
720x576p @ 50/200Hz (4:3)/(16:9)
720x576p @ 100Hz (16:9)
1440x480p @ 59.94/60Hz (4:3)/(16:9)
1440x576p @ 50Hz (4:3)/(16:9)
(2880)x480p @ 59.94/60Hz (4:3)/(16:9)
1680x720p @ 23.98/24/25/29.97/30/50/59.94/ 60/100/119.88/120 Hz
2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz
3840x2160p @ 23.98/24/25/29.97/30Hz (16:9)
4096x2160p @ 23.98/24/25/29.97/30Hz
