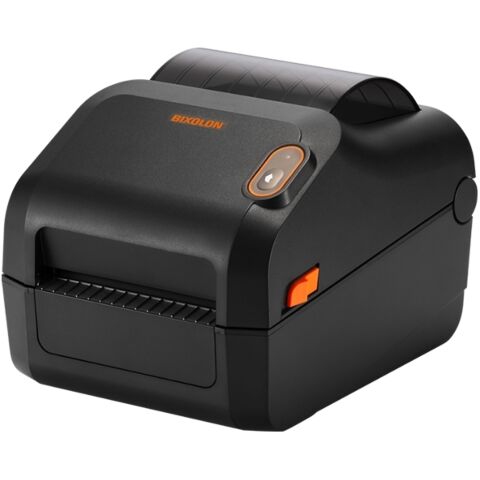

Bixolon XD3-40D 4 inch Direct Thermal Label Printer - USB 2.0 / Serial / Ethernet

In stock
  • Brands - Cliqtosave Online: Bixolon
Bixolon XD3-40D 4 inch Direct Thermal Label Printer - USB 2.0 / Serial / Ethernet
More Information
Printer FunctionsOnly Print
Printer TypesLabel Printers

Bixolon XD3-40D 4" Direct Thermal Label Printer - USB 2.0 / Serial / Ethernet, No peeler, No cutter, Black, Direct Thermal print Method, 127 mm/sec print speed, 203 dpi print Resolution, Up to 104 mm print width


XD3-40 Series

The orange and black style of the new XD3-series allows you to immediately recognise its BIXOLON origin. Offering a colour scheme aligned to new Mobile and Industrial printers, the 4-inch (118mm) Direct Thermal XD3-40d and Thermal Transfer XD3-40t encompass the durable, easy-to-use design as its other Desktop models, but advances the feature set whilst responding to budget needs. The optional peeler adds to the standard tear-off media handling option of a printer capable of handling receipts, tags and labels in either roll or fanfold formats. Interface connectivity choices of locally wired USB and Serial or wired 10/100 Ethernet. A consistent look across portfolios, the 4-inch (118mm) XD3 series offer common control with seamless handling of BIXOLON's own command language alongside other leading programming languages and can be used in direct or standalone mode of operation.


Basic Functions
Printing speed up to 5 ips (127 mm/sec)
Fully compatible with market-leading programming languages
Simple to set up through a single LED
Smart switch programming languages without setting the mode
User-Friendly Design
Easy paper loading with adjustable paper guide and holder
Simply set up media sensor
Optional peeler and external paper supply
Toolless maintenance of roller and print head
Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
Connectivity Options
Standard: USB
Optional: USB + Serial + Ethernet
XD3-40d - 4 inch Direct Thermal Label Printer
Following in the footsteps of the industry recognised SRP-E770 series, the entry-level XD3-40d is a new Direct Thermal 4-inch (118mm) Desktop workhorse offering day-to-day quality 203 dpi output across your logistics, warehousing and manufacturing installations. Simple to setup and use, the XD3-40d also benefits from tool-less printhead and platen replacement to ensure uptime is maximised. Product or asset labelling, Document management, patient and quest identification, Shipping and logistics printing, the XD3-series offers a balance of cost and performance, including print speed, tear and peel media handling, plus networked options.


Print Method Direct Thermal
Print Speed 127 mm/sec
Print Resolution 203 dpi
Print Width Up to 104 mm
Print Length Up to 1,000 mm
Sensor Transmissive(Fixed), Reflective(Adjustable)
Ribbon-End (XD3-40t), Head Open
Media Type Gap, Black Mark, Notch, Continuous
Media Width 15 ~ 118 mm
Media Roll Diameter Up to 127 mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Inner Core 25.4 ~ 38.1mm
Dimensions (WxDxH) : 181 x 222 x 168 mm
Weight 1.7kg
Electrical EnergyStar Certified
External Power Adaptor 100-240V AC, 50/60Hz
Memory 64 MB SDRAM, 128 MB Flash
Interface USB + Serial + Ethernet
Emulation SLCS, BPL-Z (ZPLII), BPL-E (EPL)
Driver / Utility Windows Driver (Europlus / Seagull)
Linux / Mac CUPS Driver
Virtual COM USB / Ethernet Driver
Utility Program
OPOS Driver
Bartender Ultralite for BIXOLON
Label Artist-II
Fonts Bitmap Fonts (SLCS, BPL-Z, BPL-E) /
Scalable Fonts (SLCS, BPL-Z) /
Unicode supported
(UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics
formats and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93
Code 128, EAN-13, EAN-8
Industrial 2-of-5, Interleaved 2-of-5
Logmars, MSI, Plessey, Postnet
GS1 DataBar (RSS-14), Standard 2-of-5
UPC/EAN extensions, UPC-A, UPC-E
2D: Aztec, Codablock, Code49, Data Matrix
MaxiCode, MicroPDF417, PDF417
QR Code, TLC39
