Cooler Master - MFP-ACBN-NNUNN-R1 ARGB LED Controller
|Tools & Accessories Type||Components|
ADDRESSABLE RGB LED CONTROLLER
Convenient and compact design-With built-in magnets, it can be attached to any metallic surface.
COMPATIBLE WITH MOTHERBOARD CONTROL OF LIGHTING
With header Connection to Motherboard as well as compatible with motherboard software to control lighting
EASY TO SWITCH BETWEEN ARGB AND RGB LIGHTING CONTROL
1. LED Mode Adjustment
2. ARGB & RGB lighting Mode
3. LED Color Adjustment
4. LED Speed Adjustment
THERMAL DETECTION FUNCTION
With Thermal Detection Cable, temperature can be monitored and displayed through color lighting effects
Reset Button on your Case can also control the lighting

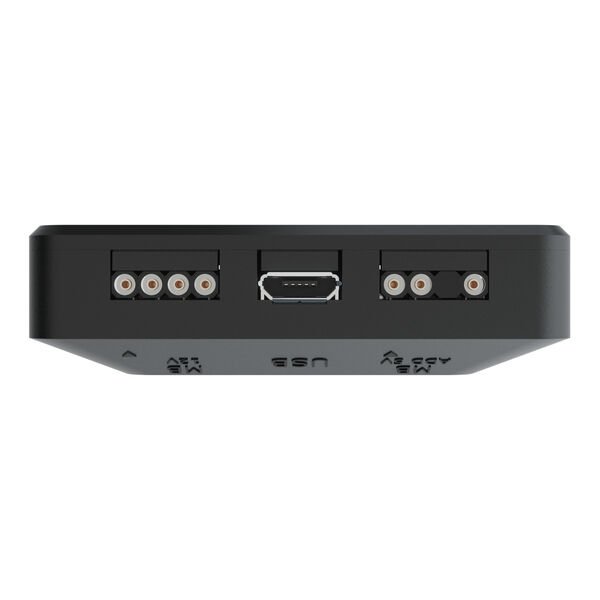

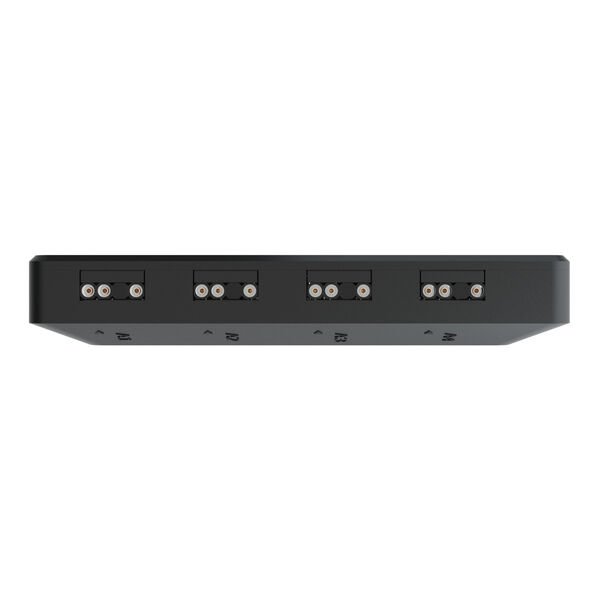

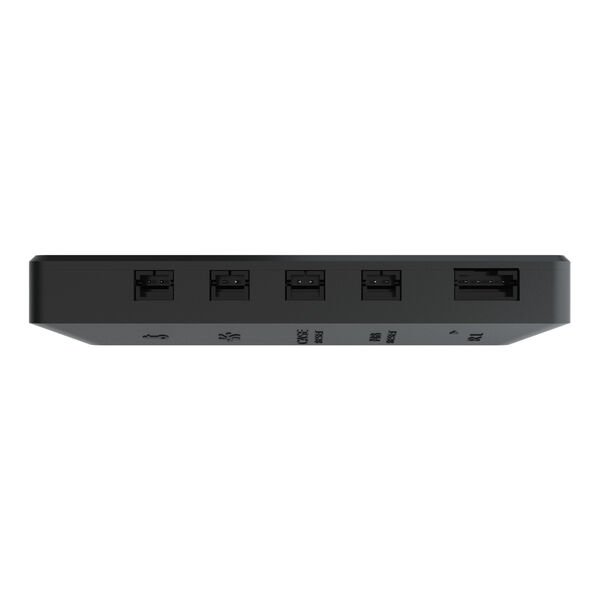

FUNCTION OF EACH CONNECTION
1. To connect Motherboard 4-Pin RGB header. Lighting can be controlled by Motherboard.
2. To connect USB of Motherboard, to update firmware of controller for more lighting effect.
3. To connect Motherboard 3-Pin ARGB header. Lighting can be controlled by Motherboard.
4. To connect 3-Pin ARGB fan.
5. Signal tracing header.
6. Case Reset header.
7. Motherboard Reset header.
8. Thermal Detection header.
