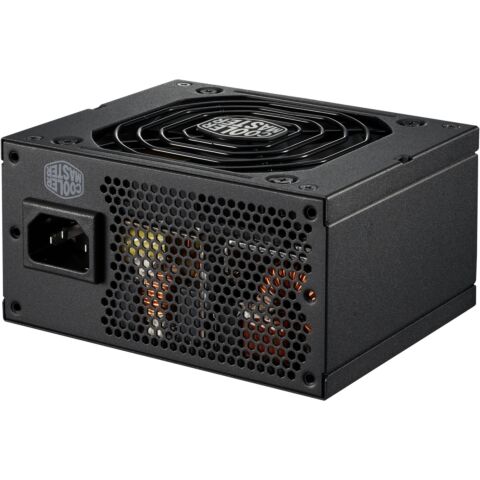

Coolermaster V SFX Platinum 1100W ATX 3.0 / SFX Power Supply, ATX 3.0, Active PFC, 92mm fan size, FDB fan bearing, 80 Plus Platinum, 1x ATX 24 pin connectors, 1x EPS 4+4 pin connectors, 1x EPS 8 pin connector, 8x SATA connectors, 4x Peripheral 4 pin connectors, 3x PCI-e 6+2 pin connectors, 1x 12VHPWR connector
Overview:
V SFX PLATINUM 1100 - INDUSTRIAL LEADING SFX POWER SUPPLY
High Power Density
Fully Support ATX3.0
100% Japanese Capacitors
Full-bridge LLC and DC-DC Technology
Fully Modular Cables
Features:
A REVOLUTION TO SFX
Leading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.
HIGH POWER DENSITY
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
MINIATURIZED BUT SOLID
Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
ENHANCED DISSIPATION
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.
FULL & FLEXIBLE COMPATIBILITY
Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
ATX 3.0 SUPPORT & A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4 pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability and improved safety, capable of bringing up to600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
FULLY MODULAR CABLING
Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Specifications:
Model MPZ-B001-SFAP-B
ATX Version ATX3.0, SFX 12V Ver. 3.42
PFC Active PFC
Input Voltage 100-240V
Input Current 14-6.5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 100 x 125 x 63.5 mm
Fan Size 92mm
Fan Bearing FDB
Efficiency ≥ 92% @ Typical Load
80 PLUS Rating 80 PLUS Platinum
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥16ms at 70% Load
MTBF >100,000 Hours
Protections OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
Regulatory TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 8
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 3
12VHPWR Connector 1
Series V SFX Series
80 Plus Platinum
Modular Full Modular
Wattage Above 750W
