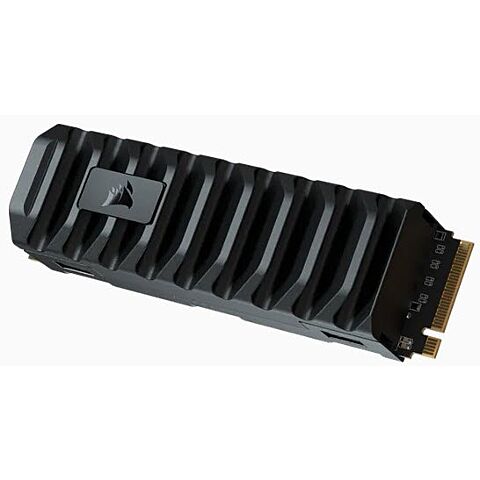

Corsair CSSD-F1000GBMP600PXT 1Tb/1000Gb Force MP600 Pro Xt series with cooling heatsink - NGFF(M.2) 3D TLC SSD with NVMe PCIe (Gen4.0) x4 mode SSD, type 2280 - 22x80x19mm, Phison PS5018-E18 controller (quad-cores / 8-channel) with 1Gb ddr4 cache, LDPC
Overview:
The CORSAIR MP600 PRO XT Gen4 PCIe x4 NVMe 1.4 M.2 SSD provides extreme storage performance, using Gen4 PCIe technology to achieve unbelievably fast sequential read and write speeds.
Features:
EXTREME GEN4 STORAGE PERFORMANCE
A PCIe Gen4 x4 extreme data performance controller delivers phenomenal read, write, and response times that leave standard M.2 SSDs in the dust.
High-speed Gen4 PCIe x4 NVMe 1.4 M.2 Interface
Leveraging PCIe Gen4 NVMe 1.4 technology for maximum bandwidth, the MP600 PRO XT delivers incredible storage performance.
Built-in Aluminum Heatspreader
Helps disperse heat and reduce throttling, so your SSD maintains sustained high performance.
High-density 3D TLC NAND
Combines high-speed performance with outstanding endurance up to 3000TB written, ensuring that your drive will last and perform well through many years of use.
M.2 2280 Form Factor
Fits directly into your motherboard with no need for cables.
Specifications:
SSD Unformatted Capacity 1TB
SSD Smart Support Yes
Weight 0.066
SSD Interface PCIe Gen 4.0 x4
SSD Max Sequential Read CDM Up to 7, 100MB/s
SSD Max Sequential Write CDM Up to 5, 800MB/s
Max Random Write QD32 IOMeter Up to 1.2M IOPS
Max Random Read QD32 IOMeter Up to 900K IOPS
Form Factor M.2 2280
Dimensions 80mm x 23mm x 19mm
Application Consumer Client
Weight 0.066
NAND Technology 3D TLC NAND
Voltage 3.3V, +/- 5%
Endurance 700TBW
TBW 700
MTBF 1,600,000 Hours
DEVSLP PS4: <2mW
Encryption AES 256-bit Encryption
Storage Temperature -40°C to +85°C
SSD Operating Temperature 0°C to +70°C
SSD Shock 1500 G
Storage Humidity 93% RH (40° C)
Operating Humidity 90% RH (40° C)
Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
