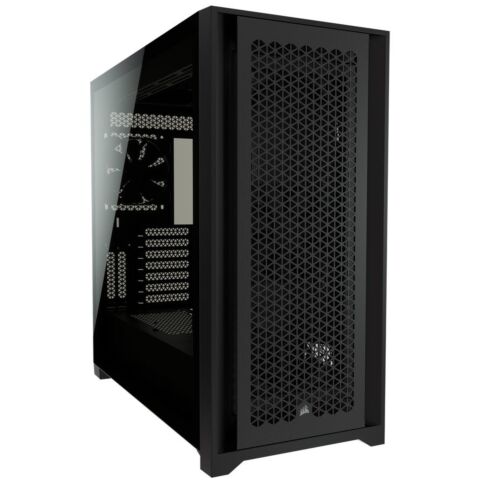

Corsair CC-9011210-WW Obsidian Series 5000D Airflow Black Tempered glass - remove-able meshed front+top panels for maximized air flow - support 2x vertical VGA mounting via optional riser cable kits, RapidRoute cable management + easy-access hinged door - support 4x radiators (120/240/280/360mm), No psu (bottom placed PSU design), support up to 420mm graphics card; 1x USB 3.1 type-C + 2x USB 3.0 + audio in/out - 2x3.5" hidden, 4x 2.5" - 2x 120mm fan up to 10, with PWM fan repeater control up to 6x fans, 4x dust filters (front/ top/ psu/ side) - E-ATX
Overview:
The CORSAIR 5000D AIRFLOW is a mid-tower ATX case that shows off your PC, and not its cables. Hidden cable management and an airflow-optimized front panel make building a clean, cool PC easy, with two included CORSAIR AirGuide fans.
Features:
Clean and Cool
An optimized steel front panel delivers massive airflow to your system for maximum cooling.
Maximum cooling potential
A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front or side and a 360mm push/pull in the roof.
There's no replacement for displacement
The 5000D AIRFLOW isn’t your run-of-the-mill, standard mid-tower ATX case. Its brilliantly engineered interior offers incredible expansion capability for liquid cooling.
Powerful directed Airflow
Equipped with two CORSAIR AirGuide 120mm fans featuring anti-vortex vanes to concentrate airflow and enhance cooling.
Take command of your cooling
A PWM fan repeater controls the included fans, with connections for up to six in total. Reduce fan speed when you want to keep your system quiet, or increase when you want to push its performance, all from a single 4-pin PWM header on your motherboard.
Extreme Cooling
Maximum Cooling Potential: A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front and a 360mm push/pull in the roof.
Dimensions
Expansion-friendly, the 5000D Airflow has room for extensive air or liquid cooled configuartions.
Fan Capacity
Fan mounts feature wider cutouts, allowing fan placement customization and flexibility.
Radiator Capacity
Install two simultaneous 360mm radiators in any of three 360mm radiator mounting locations to keep things cool.
CORSAIR RapidRoute Cable Management
Quickly and easily route your major cables through a single hidden channel, with a roomy 25mm of space behind the motherboard for all of your cables, easily concealed by a hinged steel door.
Modern Front Panel I/O
Puts your connections within easy reach, including a USB 3.1 Type-C Port, 2x USB 3.0 port, and a combination audio/microphone jack.
vertical gpu mount ready
With included vertical PCIe slots and a screw mount for a CORSAIR PCI-Express 3.0 extension cable (sold separately), you can show off your GPU and keep it secure at the same time.
Specifications:
Case Dimensions 520mm x 245mm x 520mm
Maximum GPU Length 420mm
Maximum PSU Length 225mm
Maximum CPU Cooler Height 170mm
Case Expansion Slots 7+2 vertical
Case Drive Bays "(x2) 3.5in (x4) 2.5in"
Case Form Factor Mid-Tower
Case Windowed Tempered Glass
iCUE enabled No
Color Black
Case Material Steel, Tempered Glass, Plastic
Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm
Compatible Corsair Liquid Coolers H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
Case Power Supply ATX (not included)
Weight 13.84kg / 30.51lbs
Case Drive Bays 3.5" 2
Case Drive Bays 2.5" 4
