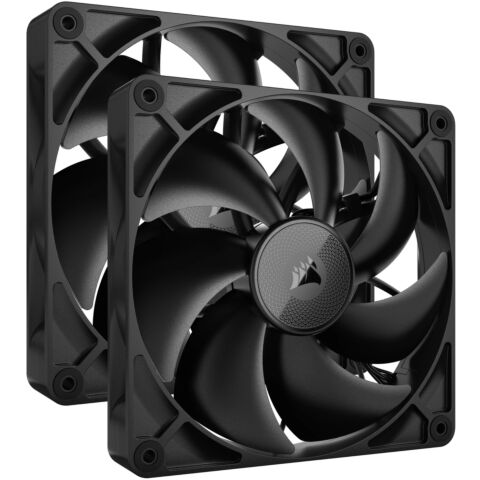

Corsair RX Series iCUE Link RX140 140mm PWM single fan Expansion - Dual Pack, 140mm x 25mm fan size, 18.1 - 95.7 CFM fan Airflow, 1700 rpm speed, Static Pressure Flow Type
Overview:
iCUE LINK RX140 140mm PWM Fan Twin Starter Kit
CORSAIR RX120 PWM fans push through obstructions using high static pressure and PWM controlled speeds, built with premium Liquid Crystal Polymer and CORSAIR AirGuide technology.
Advanced performance blade shape
iCUE LINK System Hub included
Glass fiber-reinforced LCP fan blades
AirGuide technology for concentrated cooling
Magnetic dome bearing for minimal noise
Features:
CORSAIR iCUE LINK RX140
HIGH PERFORMANCE FANS
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
PEAK COOLING POWER
Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
GLASS FIBER REINFORCED LCP
Constructed from glass fiber-reinforced liquid crystal polymer, RX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series' unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
HARNESS THE POWER OF iCUE LINK
Unleash the full potential of your fans using CORSAIR iCUE software, from fine-tuned fan speeds to pre-set fan curves.
Specifications:
Weight 0.57
Fan Size 140mm x 25mm
LED Color No
Package Quantity 2
Power Draw 0.62A
PWM Control Yes
Sound Level 10 - 36 dBA
Fan Static Pressure 0.15 - 3.79 mm-H20
LINK Compatibility noled
Fan Airflow 18.1 - 95.7 CFM
Flow Type STATIC PRESSURE
Speed 1700 RPM
