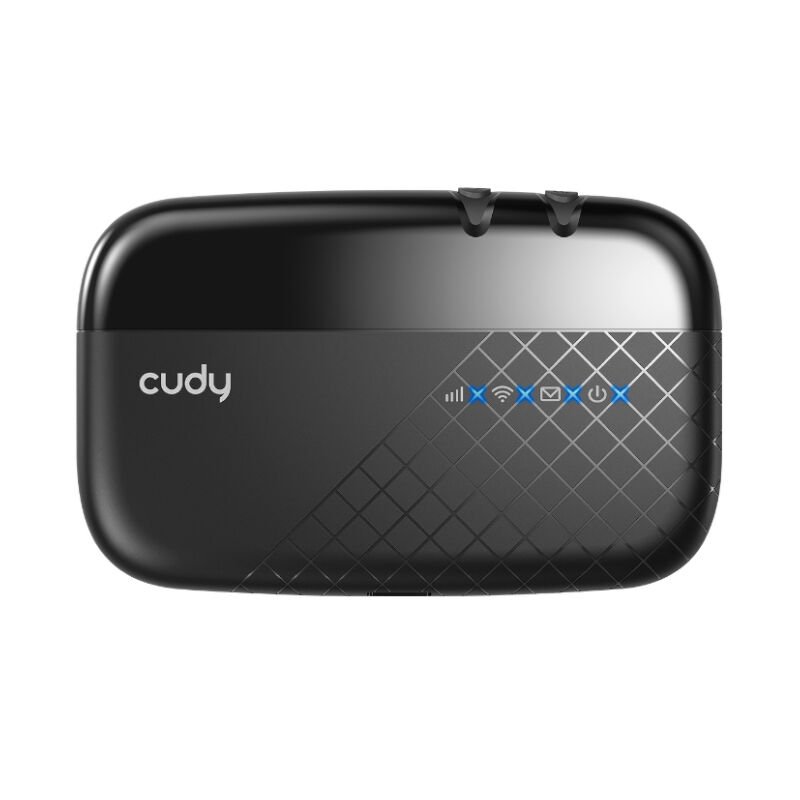

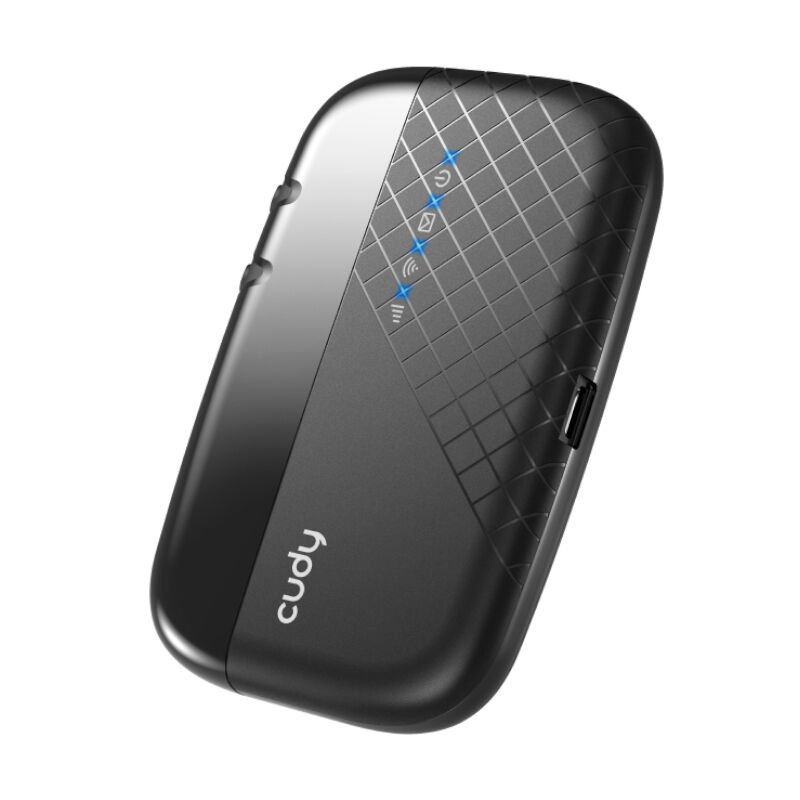

Cudy 4G LTE Mobile Wi-Fi

The Cudy 4G LTE Mobile Wi-Fi Router is a great way to stay connected no matter where you are. Its portable and lightweight design make it easy to carry or keep in your pocket or backpack. Its solid and reliable 4G LTE connection is a great option for on the go internet. It uses the latest generation of 4G LTE technology to achieve speeds of up to 150 Mbps download and 50 Mbps upload.

It also allows you to create a Wi-Fi hotspot and connect up to 10 devices, including phones, laptops, tablets, game consoles, and more. This makes it extremely versatile for a mobile device. It also features a very powerful and rechargeable 2000 mAh battery that gives you up to 7 hours of operation. This will help you stay connected for longer periods of time.

FEATURES:

• Share�4G�connection�with�up�to�150�Mbps�download/50�Mbps�upload�speeds
• Support FDD and TDD bands
• Supports up to 11 devices simultaneously (10 Wireless+1 Wired)
• 2000 mAh battery for 8 hours of usage

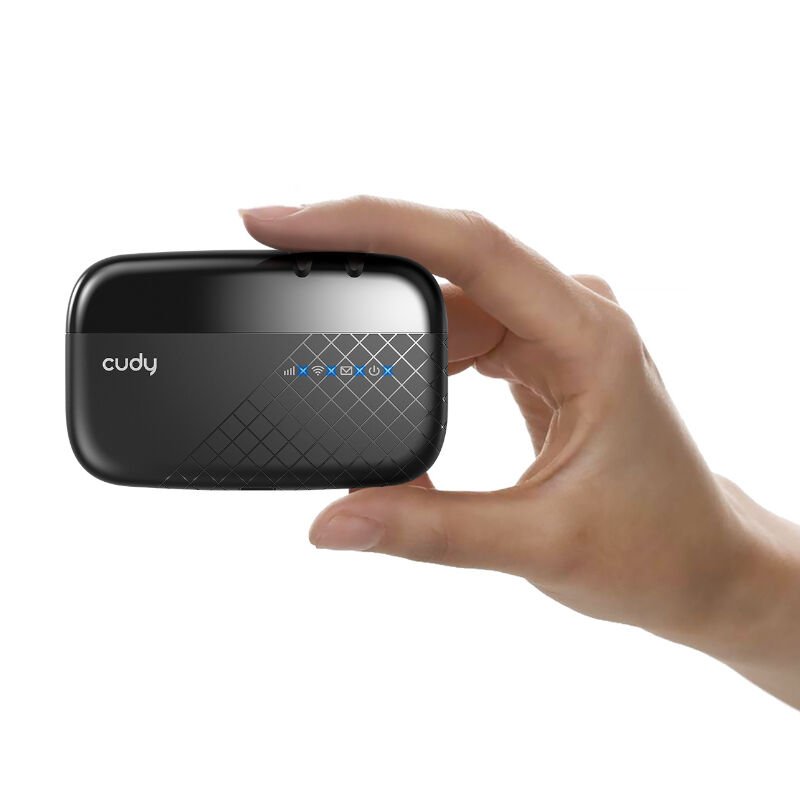

• Compact and portable design

SPECIFICATIONS:

• Model: 4G LTE Mobile Wi-Fi
• Form: MiFi / Pocket Router
• Communication System (WAN):
  • Chipset: Qualcomm MDM9x07 / MDM9x25
  • Frequency Bands:
    • LTE: B1/B3/B7/B8/B20/B38/B40/B41
    • UMTS: B1/B3/B8
  • Bandwidth:
  • LTE Band: 1.4/3/5/10/15/20 MHz
  • Modulation:
    • Downlink: QPSK/16-QAM/64-QAM
    • Uplink: QPSK/16-QAM
  • Antenna:
    • Primary: Internal
    • Diversity: Internal, UMTS Optional
  • RF Power Level:
    • LTE FDD: Power Class 3 (23 +/-2dBm)
    • UMTS: Power Class 3 (24 +1.7/-3.7dBm)
    • EDGE: Power Class E2 (GSM850/900: 27dBm;�DCS/PCS: 26dBm)
  • Data Rate
    • 4G: 3GPP R10, Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps
    • 3G: 3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps
  • Wi-Fi:
    • Chipset: RealTek 8192ES
    • Frequency: 2.4GHz
    • Protocol: 802.11b/g/n
    • Channel: 1~13
    • Antenna: Internal
  • Data Rate:
    • 802.11b: Up to 11 Mbps
    • 802.11g: Up to 54 Mbps
    • 802.11n: Up to 150 Mbps
• Features:
  • Interface:
    • USB: USB2.0
    • USIM: Single, 4FF
  • LED
    • POWER: Power/Battery Status Indicator
    • Network: 4G/3G/2G Network Status Indicator
    • Wi-Fi: Wi-Fi Status Indicator
    • Message: New SMS Indicator
  • WebUI:
    • System:
      • Connection Status
      • Statistics
      • Samba (optional)
      • Device Management
      • Power Management
    • Mobile Service:
      • Automatic APN matching according to USIM
      • Auto Data Connection
      • USSD Service
      • PIN/PUK Management
      • Network Mode Selection(2G/3G/LTE/Auto)
    • Router:
      • USB RNDIS Device
      • Up to 10 Wi-Fi users/devices
      • DHCP Server
      • IPv4/v6
      • VPN Passthrough
      • Firewall
      • WPS
      • Security via WEP, WPA-PSK, WPA2-PSK
      • Wi-Fi Settings
  • Battery:
    • Type: Li-ion Polymer Battery
    • Capacity: 2000mAh
    • Endurance: 5-6 hours (normal network situation)
  • Operation System
    • Windows: XP/7/8/10
    • MAC OS: 10.7+
    • Linux: Ubuntu 13.04+
    • Browser: IE9+, Firefox, Google Chrome, Safari, Opera
• Environment
  • Power Supply: USB, 5V1A
  • Working Temperature: 0�C to 35�C
  • Storage Temperature: -20�C to 60�C
• Certification:
  • 3GPP Compliance: CE/FCC/GCF, upon customer's requirement
  • Material: RoHS
• Product Dimensions: 9.7 x 6.1 x 1.6 cm
• Weight: 92g

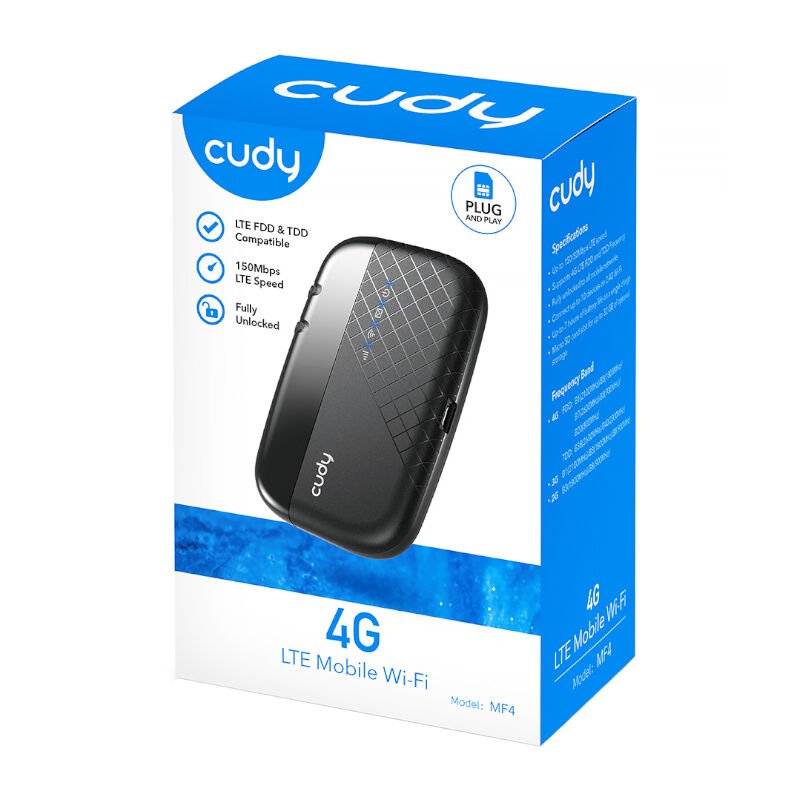

WHAT'S IN THE BOX:

• Cudy MF4 4G LTE Mobile Wi-Fi Router -Black x1
