D-Link 10/100/1000 Base-T UTP to 100 Base-T Fiber Converter
- � Supports Multi-mode Fiber Cable Distance Up To 550m
- � 1 x 1000BASE-T RJ-45 port & 1 x 1000BASE-SX/LX SC port
- � 2000 Mbps (full-duplex)
- � Auto-MDI/MDIX
- � Can be used as a stand-alone device or installed in a chassis
D-link 1000Base-T Gigabit Twisted-pair to 1000Base-SX Gigabit Fiber Multi-mode Fiber (550m, SC) Media Converter Module

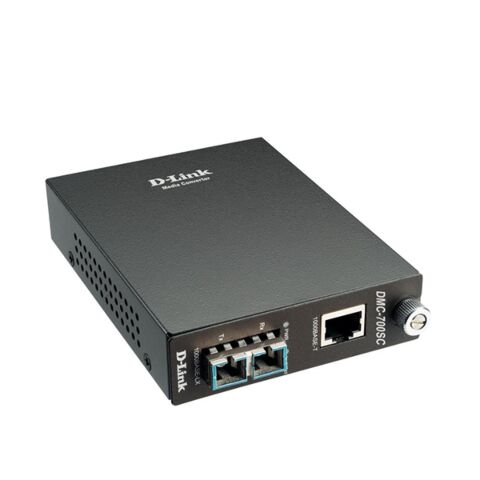

The DMC-700SC by D-Link® is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the DMC-700SC is designed for use with multi-mode fiber cable utilising the SC-Type connector. The DMC-700SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilising multimode fiber up to 550 meters.
