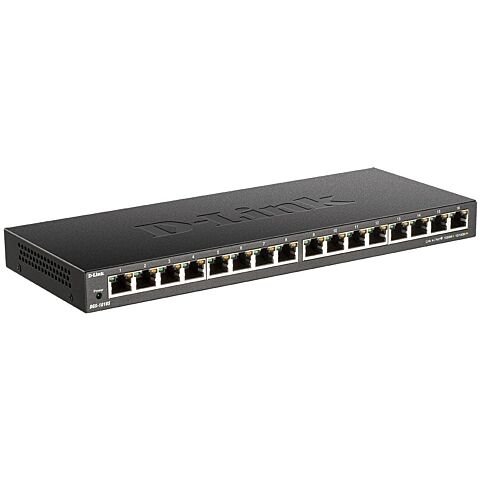

D-Link DGS-1016S 16-Port Gigabit Unmanaged Switch

D-Link GigaExpress DGS-1016S - 16 port 10/100/1000 gigabit un-managed switch - metal housing, auto-MDI/MDIX, 8k MAC address, 512k ram buffer per device, 32Gbps switching capacity, 564658 hours MTBF, 280x110x25mm slimline, rackmount ready

Overview:

The DGS-1016S 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-
sized businesses looking for a quick and easy way to upgrade or expand their network. The low profile switch comes with a compact and sturdy metal design that allows the switch to
be placed on a desktop or wall-mounted. With its integrated power-saving technologies, the
switch automatically reduces power consumption, reducing heat whilst prolonging product
life, all without sacrificing performance or functionality.

Features:

16 x Gigabit ports
Slim, low profile design for desktop or wall mount
Plug & Play simplicity for easy installation
Silent operation with fanless design
Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

All speed and no fuss
Gigabit connectivity with support for 802.1p Quality of Service means faster uploads and downloads without video streaming or voice calls being interrupted.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Specifications:

General
Device Interfaces 16 x 10/100/1000 Mbps LAN ports
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Functionality
Switching Capacity 32 Gbps
Advanced Features Auto-MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 9,216 byte jumbo frames
Back pressure at half-duplex operation
Wire-speed reception and transmission
Auto-negotiation for each port
Quality of Service (8 queues, strict mode)
Data Transfer Rates Ethernet:
10 Mbps (half-duplex)
20 Mbps (full-duplex)
Fast Ethernet:
100 Mbps (half-duplex)
200 Mbps (full-duplex)
Gigabit Ethernet
2000 Mbps (full-duplex)
Transmission Method Store-and-forward
MAC Address Table Size 8K entries
Packet Filtering/Forwarding Rates Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 512 KB per device
Physical
LED Indicators Per port: Link/Activity/Speed
Per device: Power
Media Interface Exchange Auto-MDI/MDIX adjustment for all ports
Dimensions 280 x 110 x 25 mm
Weight 0.77 kg
Power Input 12 V / 1 A
Power Consumption Standby: 3.37 W
Maximum: 8.89 W
Temperature Operating: 0 to 40 °C (32 to 104 °F)
Storage: -40 to 70 °C (-40 to 158 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
MTBF 564,658 hours
Maximum Heat Dissipation 30.32 BTU/h
Emissions (EMI) CE Class A
FCC Class A
ICES 003
RCM
Safety LVD
