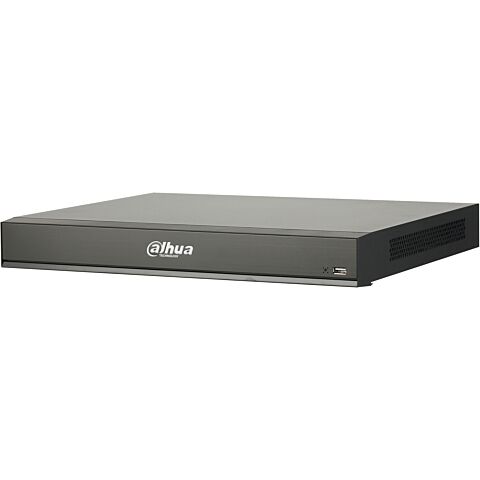

Dahua 16 channel 1U 2x HDDs 8 PoE WizMind Network Video Recorder

Dahua 16 channel 1U 2x HDDs 8 PoE WizMind Network Video Recorder, Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG, 1-8 PoE Ports support epoe & eoc, Up to 16 channel Perimeter protection, Up to 4 channel Video Stream Face Recognition, Up to 22 face pictures/sec Processing, 1x HDMI, 1x VGA, HDMI 3840x2160, VGA 1920x1080, 4-ch @ 8MP (30fps) decoding capability, 16-ch @ 1080p (30fps) decoding capability, Multi-screen Display, 4 channel alarm Input, 2 channel relay Output, 1x RJ-45 Ports (10/100/1000 Mbps) Interface, 2 SATA 3 Ports up to 10 TB for a single Hard Disk Drive, 1x rear USB 3.0, 1x front USB 2.0

Overview:

NVR5216-8P-I
16Channel 1U 2HDDs 8PoE WizMind Network Video Recorder
16 Channel IP video access
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Up to 16 Channel perimeter protection
Up to 4 Channel video stream face recognition
Up to 22 face pictures/sec processing
Up to 20 face databases with 100,000 face images in total
1-8 PoE Ports support ePoE & EoC

Specifications:

System
Main Processor Multi-core embedded processor
Operating System Embedded LINUX
Perimeter Protection
Performance 16 channel, 10 IVS rules for each channel
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (Human, Vehicle)
Face Recognition
Performance Max 22 face pictures/sec processing (modeling and comparing)
4 channel video stream face recognition/16 channel picture stream face recognition (with FD camera)
Stranger Mode Detect strangers' faces (not in device's face database).Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application Each database can be applied to video channels independently.
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
Metadata
Face Gender, age, glasses, beard, mouth mask, expression.
Vehicle Plate No, type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region.
Human Body Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella.
Non-motor Vehicle Type, color, number of passengers, helmet.
AI Search Support search target video by metadata.
Audio and Video
IP Camera Input 16 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Decoding Capability 4-ch@8MP (30fps), 16-ch@1080P (30fps)
Multi-screen Display 1/4/8/9/16
Recording
Bandwidth 320 Mbps (160 Mbps when AI function enabled)
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Record Mode Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)
Record Interval 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection and Alarm
Trigger Events Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Scene Change
Alarm input 4 Channel
Relay Output 2 Channel
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Third-party Support
Third-party Support Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more
Network
Interface 1 RJ-45 Ports (10/100/1000 Mbps)
PoE 8 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
Max. User Access 128 users
Mobile App iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (1 Rear USB 3.0, 1 Front USB 2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply Single, AC100V-240V, 50-60 Hz
Power Consumption NVR: <15.6W (Without HDD)
PoE: Max 25.5W for single port
130W total rated power, 80% control for protection
Fan Smart fan, automatically adjust running speed
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 86-106kpa
Storage Conditions 0°C to +40°C (+32°F to +104°F), 30-85% RH
Construction
Dimensions 1U, 375.0 mm x 327.4 mm x 53.0 mm (14.76" x 12.89" x 2.09")
Net Weight 2.70 kg (6.0 lb) (without HDD)
Gross Weight 4.00 kg (8.8 lb) (without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL 60950-1
