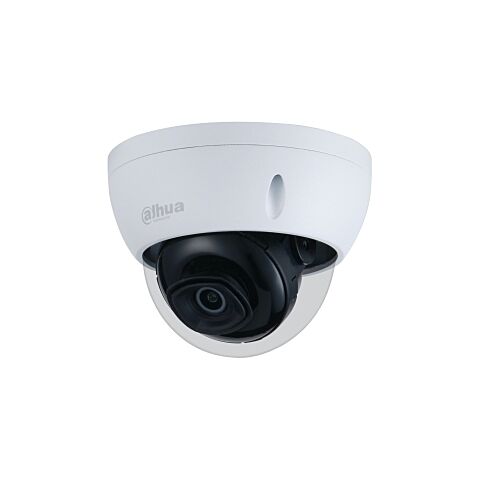

Dahua 2MP Lite IR Dome Network camera with 2.8mm fixed-focal Lens, 1/2.8" CMOS image sensor, 1920 (H) x 1080 (V) Maximum Resolution, 30 m illumination distance, M12 Lens Mount, H.265 / H.264 / H.264b / MJPEG Video Compression, 1920x1080 @ 1-25/30 fps main Stream, 2 streams, BLC, HLC, DWDR, 3D NR noise reduction, Motion detection, Region of interest (RoI), 1x RJ-45 (10/100 BASE-T) Network Port
Overview:
IPC-HDBW2230E-S-S2
2MP Lite IR Fixed-focal Dome Network Camera
2MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
Outputs 2MP (1920 x 1080)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
Max. 256 GB Micro SD card
12V DC/PoE power supply
IP67, IK10 protection
Specifications:
Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) x 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s-1/100, 000 s
Min. Illumination 0.005 [email protected] (Color, 30 IRE)
0.0005 [email protected] (B/W, 30 IRE)
0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
Illuminator On/Off Control Auto, manual
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°-355°
Tilt: 0°-65°
Rotation: 0°-355°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm, 3.6 mm
Max. Aperture 2.8 mm: F1.6
3.6 mm: F1.6
Field of View 2.8 mm: Horizontal: 108°, Vertical: 56°, Diagonal: 128°
3.6 mm: Horizontal: 88°, Vertical: 44°, Diagonal: 105°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.3 m (4.27 ft)
Smart Event
IVS Tripwire, intrusion
Video
Video Compression H.265, H.264, H.264B, MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+, Smart H.264+
Video Frame Rate Main stream:
1920 x 1080@1-25/30 fps
Sub stream:
704 x 576@1-25 fps
704 x 480@1-30 fps
*The values above are the max. frame rates of each stream, for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps-6144 kbps
H.265: 12 kbps-6144 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto, manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, voltage detection, security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption, firmware encryption, configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, generation and importing of X.509 certification, syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade
Network Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, P2P, Milestone
User/Host 20 (Total bandwidth: 48 M)
Storage FTP, SFTP, Micro SD card (support max. 256 G), NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Client IOS, Android
Certification
Certifications CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12 V DC/PoE (802.3af)
Power Consumption Basic: 1.8 W (12 V DC), 2.5 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + DWDR + IVS): 4.6 W (12 V DC), 5.4 W (PoE)
Environment
Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Protection IP67, IK10
Structure
Casing Metal
Product Dimensions 81 mm x Ø109.9 mm (3.2"xØ4.3")
Net Weight 0.35 kg (0.8 lb)
Gross Weight 0.49 kg (1.1 lb)
