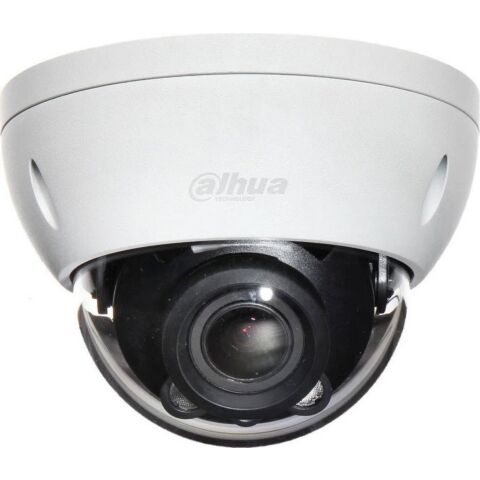

Dahua HAC-HDBW1500R-Z 5MP Starlight HDCVI IR Dome Camera with 2.8 to 12mm lens
Features:
Max 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.7-12 mm motorized lens
Max. IR length 30 m, Smart IR
IP67, IK10, DC12V
Specifications:
Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) x 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s-1/100000 s
NTSC: 1/30 s-1/100000 s
S/N Ratio > 65 dB
Min. Illumination 0.005Lux Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°-355°
Tilt: 0°-75°
Rotation: 0°-355°
Lens
Lens Type Motorized vari-focal
Auto Focus N/A
Mount Type Ø14
Focal Length 2.7 mm-12 mm
Max. Aperture F1.6
Field of View Diagonal: 39°-130°
Horizontal: 34°-107°
Vertical: 19°-55°
Iris Type Fixed iris
Close Focus Distance 0.5 m (1.64 ft)
DORI Distance Lens - 2.7 mm to 12 mm
Detect - 69 m to 191.6 m
Observe - 27.6 m to 76.64 m
Recognize - 13.8 m to 38.32 m
Identify - 6.9 m to 19.16 m
Video
Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010 A1:2015, EN 55035:2017, EN50130-4:2011 A1:2014, EN 62368-1:2014 A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1 CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply DC 12V ±30%
Power Consumption Max 5.5W (12V DC, IR on)
Environment
Operating Temperature -30°C to 60°C; <95% (non-condensation)
Storage Temperature -30°C to 60°C; <95% (non-condensation)
Protection Grade IP67, IK10
Structure
Casing Metal throughout the whole casing
Camera Dimensions Ø122 mm x 88.9 mm
Net Weight 0.47 kg
Gross Weight 0.62 kg
