Dell EMC PowerEdge R250 1U Rack Mount Server, Intel Xeon E-2314 2.8GHz up to 4.5GHz 8MB Cache Quad 4x Core Processor with no intergrated Graphics, On-Board LOM, 16GB (1x16GB) UDIMM 3200MT/s ECC Memory, 1x 2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5" cabled, 3.5" chassis with up to x4 Hot plug hard drives Software RAID with Backplane, Trusted Platform Module 2.0 v3, Single Hot plug cabled Power Supply 450W, PCI-e Riser with fan with 1 x16 and 1 x8 slots, PowerEdge R250 Motherboard with Broadcom 5720 Dual Port 1GB On-Board LOM, IDRAC9 Basic 15G, No Operating System, 1U / 2U static rails for 2-post and 4-post racks
Features:
Your Innovation Engine for businesses of all sizes
The PowerEdge R250, powered by the Intel Xeon E-2300 processor, delivers powerful compute for common business applications and streamlines productivity.
Maximize performance and adapt to meet future growing demands.
The PowerEdge R250, powered by the Intel Xeon E-2300 processors, is an entry level rack server with an ideal balance of adaptability and affordability designed to address your evolving compute demands.
Supports up to 32GB DIMMS at 3200 MT/s DIMM speed, up to 128GB
Address substantial throughput improvements with PCIe Gen 4 support
Ideal for file/print, mail/messaging, point of sale, web hosting and collaboration
Offers enhanced thermal efficiency
Provides improved security and faster boot time with UEFI Secure Boot
OpenManage systems management
The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.
Intelligent Automation
PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.
Built-in security
PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.
Specifications:
Processor One Intel Xeon E-2300 series processor with up to 8 cores
One Intel Pentium processor with up to 2 cores
Operating System Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Chipset Intel C256 series
Memory
DIMM Speed Up to 3200 MT/s
Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Memory Type UDIMM
Memory Module Slots 4 DDR4 DIMM slots
Maximum RAM UDIMM 128 GB
Storage
Front Bays Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB
Storage Controllers
Internal Controllers PERC H345, PERC H755, HBA355i
External Controllers HBA355e, 12 Gbps SAS Ext. HBA
Software RAID S150
Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or USB
Security Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server iDRAC9
iDRAC Service Module
iDRAC Direct
Consoles OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility OpenManage Mobile
Tools iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations BMC Truesight
Microsoft System Center
RedHat Ansible Modules
VMware vCenter and vRealize Operations Manager
OpenManage connections IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI
Power Supplies 450 W AC/100-240 V Bronze
450 W AC/100-240 V Platinum

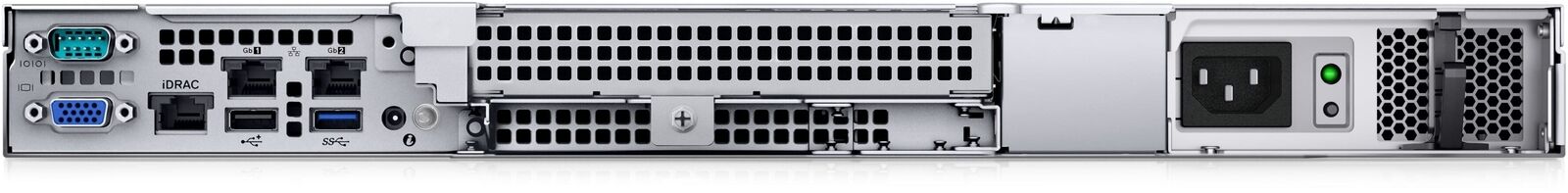

Ports
Network Options 2 x 1 GbE LOM
Front Ports 1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
Rear Ports 1 x USB 2.0
1 x USB 3.0
1 x VGA
Internal Ports 1 x USB 3.0 (optional)
Slots
PCIe 2 x PCIe Gen4 slots
Bezel Optional security bezel
Form Factor 1U rack server
Dimensions & Weight
Height 42.8 mm (1.68 inch)
Width 482 mm (18.97 inch)
Depth 598.64 mm (23.56 inch) with bezel
585 mm (23.02 inch) without bezel
Weight 12.48 kg (27.51 lbs.)
Rack Support ReadyRails static rails for 4-post and 2-post racks.
