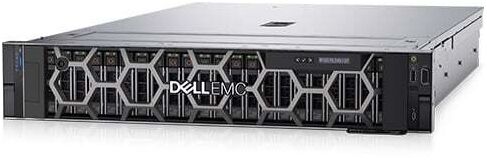

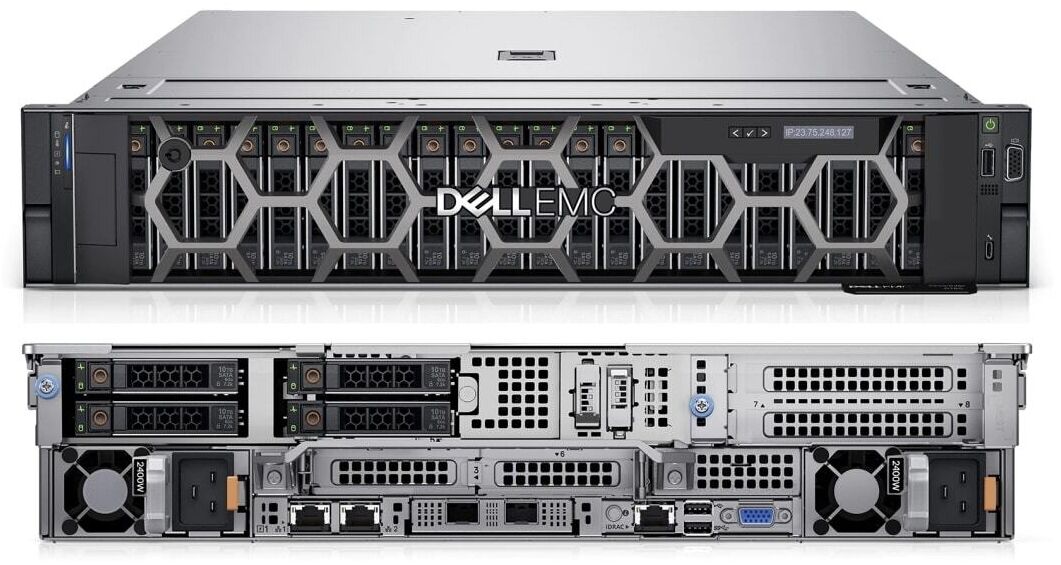

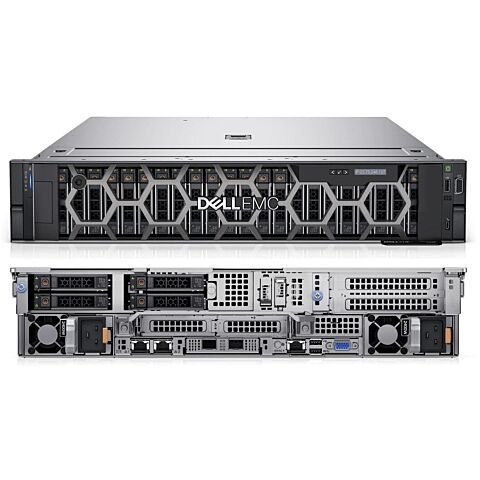

Dell PE R750 2U Rack Mount Server No CPU No RAM No HDD No OS

Dell PE R750 2U Rack Mount Server, Supports 2x Xeon 3rd Gen CPU's, Supports RDIMM 3200MT/s Dual Rank Memory, Supports SAS 12Gbps 2.5" Hot-Plug Hard Drive in 3.5" Hybrid carrier, IDRAC9 Enterprise 15G, Riser config 1 - 6x8 2x16 slots, Dual Hot-Plug fully Redundant Power Supply (1+1) 1100W, PERC H755 controller Adapter full height, Broadcom 57412 Dual Port 10GbE SFP+, Chassis with up to 12x 3.5" drives, SAS, SATA Backplane, ReadyRails sliding rails with cable management arm, Trusted Platform Module 2.0 v3, No opertaing system

Overview:

PowerEdge R750 Rack Server - Optimize workloads and deliver results
The Dell EMC PowerEdge R750 is a full-featured enterprise server delivering outstanding performance for the most demanding workloads.

Features:

Your innovation engine
The Dell EMC PowerEdge R750, powered by a 3rd Generation Intel Xeon Scalable processor, is the optimal rack server to address application performance and acceleration.

General purpose server for your demanding workloads
The Dell EMC PowerEdge R750, powered by 3rd Generation Intel Xeon Scalable processors, is the optimal rack server to address application performance and acceleration.

Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
Address substantial throughput improvements with PCIe Gen 4 and up to 24 NVMe drives
Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
Optional Direct Liquid Cooling support to address high wattage processors
OpenManage systems management
The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation
PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security
PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.

Specifications:

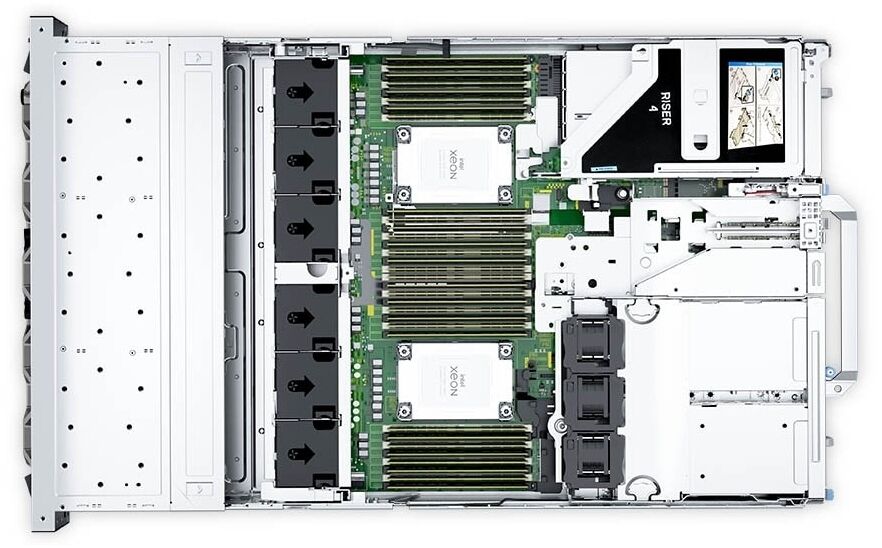

Processor Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Direct Contact Liquid Cooling (DCLC) option: Yes
Operating System Canonical UbuntuServer LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Chipset Intel C620 series chipset
Accelerators Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators
Memory
DIMM Speed Up to 3200 MT/s
Memory Type RDIMM
LRDIMM
NVDIMM
Intel Persistent Memory 200 series (BPS)
Memory Module Slots 32 DDR4 DIMM slots
Maximum RAM RDIMM RDIMM 2 TB
LRDIMM 8 TB
NVDIMM 128 TB
Intel Persistent Memory 200 series (BPS) 8 TB
Storage
Front Bays Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear Bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Storage Controllers
Internal Controllers PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N
External Controllers PERC H840, HBA355E
Software RAID S150
Internal Boot Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Boot Optimized Storage Subsystem (BOSS-S1):HWRAID 2 x M.2 SSDs 240 GB or 480
Internal Dual SD Module or USB
Security Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Consoles OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility OpenManage Mobile
Tools RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility
Update Catalogs
OpenManage Integrations BMC Truesight
Microsoft System Center
RedHat Ansible Modules
VMware vCenter and vRealize Operations Manager
OpenManage connections IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI
Power Supplies 800 W Platinum AC/240 VMixed Mode
1100 W Titanium /240 V Mixed Mode
1100 W DC -48 - -60 V
1400 W Platinum AC/240 V Mixed Mode
2400 W Platinum AC/240 V Mixed Mode
Hot plug power supplies with full redundancy option
Ports
Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
Front Ports 1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA
Rear Ports 1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)
Internal Ports 1 x USB 3.0
Slots
PCIe Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
Video Card 1 x VGA (optional for liquid cooling configuration)
Bezel Optional LCD bezel or security bezel
Form Factor 2U rack server
Dimensions & Weight
Height 86.8 mm (3.41 inches)
Width 482.0 mm (18.97 inches)
Depth 758.29 mm (29.85 inches) - without bezel
772.13 mm (30.39 inches) - with bezel
Weight 31.8 kg (70.10 lbs)
Rack Support ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.
Recommended Support Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your. PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
