Dell 470-AEUP USB-C to multi Dock, Includes - Ethernet / 2x USB Type-A 3.1 / USB-C (90W power pass through) / HDMI 2.0 / VGA / DisplayPort, 3840x2160 - 60 Hz (DisplayPort only), 3840x2160 - 60 Hz (HDMI only), 1920x1080 - 60 Hz (VGA only)
Overview:

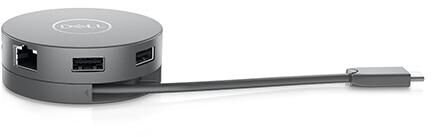

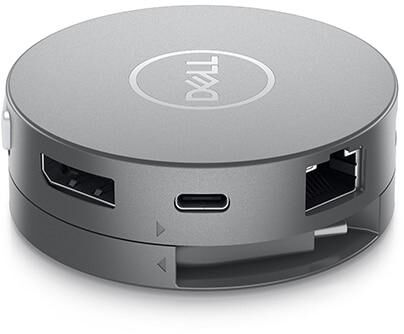

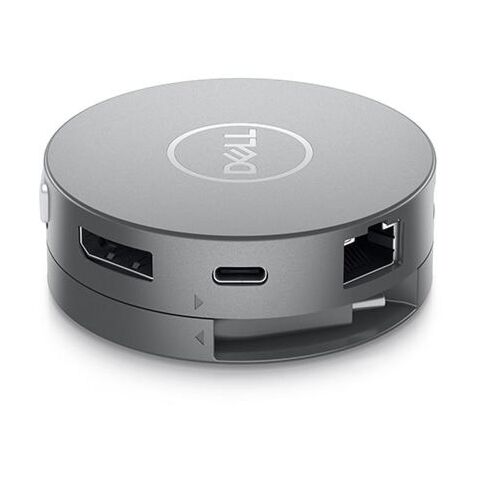

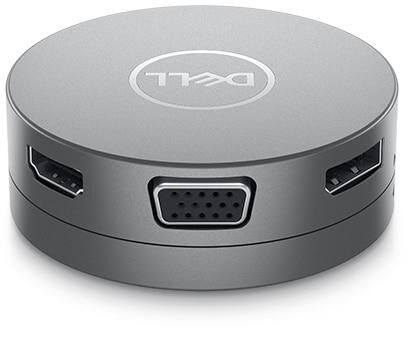

Dell USB-C Mobile Adapter - DA310
Featuring the widest variety of ports available, the compact 7-in-1 Dell USB-C Mobile Adapter - DA310 offers video, network, data connectivity, and up to 90W power pass-through for your laptop.
Features:
Comprehensive 7-in-1 adapter with power pass-through
The Dell USB-C Mobile Adapter is a compact and portable multiport 7-in-1 adapter that can connect to just about any device you have. Its downstream USB-C port supports power pass through and is ideal when your laptop does not have any more USB-C charging ports.
Widest variety of ports: Featuring the widest range of ports available that includes 2 USB-A ports, 1 USB-C, 1 HDMI, 1 DisplayPort, 1 VGA and 1 RJ-45 port. The mobile adapter offers seamless connectivity to various devices like monitorsi, projectors, headsets, keyboard, mouse, flash drives and other accessories.
Multi-functional USB-C port: With a USB-C downstream port that supports power pass through, video and data, you can connect to a monitor at up to 4K resolution at 30Hz, get up to SuperSpeed USB 10Gbps data transfer and 90W power pass through to your laptop.
Crisp 4K resolution at 60Hz: Connect to high-resolution displays without compromising on performance, as the adapter supports 4K resolution at 60Hzi . Simply connect your monitor or projector to your PC via DisplayPort or HDMI 2.0 port on your adapter.
SuperSpeed data transfers: Two USB-A and one USB-C downstream ports let you connect to other supported peripherals and enjoy fast file transfers up to 10 Gbps SuperSpeedi
Innovative patented design
The smallest and most compact 7-in-1 adapter, this portable multiport adapter has the most complete variety of ports offered in a USB-C adapter. Its patented design offers unique cable management, allowing you to extend and retract the cable when needed.
Lightweight and portable: The smallest and most compact 7-in-1 adapter that is just about the size of your palm, does not take up much space and easily fits in your pocket or bag.
Flexible cable management: Experience unique cable management with its patented design that keeps the cable concealed and protected when not in use. Easily extend or retract the USB-C cable by rotating the top and bottom cover of the adapter.
Stable connection: Connect to various form factors from clamshells to 2-in-1s to detachables. The round coaxial cable offers enhanced signal quality for stable connectivity wherever your busy day takes you.
Ports & Solts
RJ-45
USB-A 3.1 Gen2
USB-A 3.1 Gen2
USB-C (Multifunctional with up to 90W power pass through, 4K@30Hz, USB 3.1 Gen2)
HDMI 2.0 (up to 4K@60Hz)
VGA
DisplayPort (up to 4K@60Hz)
Specifications:
General
Product Type Docking station
Width 6.98 cm
Depth 6.98 cm
Height 2.45 cm
Weight 80 g
Video
Max Resolution Details 3840 x 2160 - 60 Hz (DisplayPort only)
3840 x 2160 - 60 Hz (HDMI only)
1920 x 1080 - 60 Hz (VGA only)
Networking
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces 2 x USB 3.1 Gen 2 - 4 pin USB Type A
1 x USB-C 3.1 Gen 2 - 24 pin USB-C
1 x display / video - HDMI - 19 pin HDMI Type A
1 x display / video - VGA - 15 pin D-Sub (DB-15)
1 x display / video - DisplayPort - 20 pin DisplayPort
1 x network - Ethernet 1000 - RJ-45
Miscellaneous
Cables Included 1 x USB-C cable - integrated - 12 cm
Features Wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through, Fast Role Swap, 90W power delivery
Compliant Standards Plug and Play
System Requirements
OS Required Apple MacOS, Red Hat Enterprise Linux, Ubuntu, Google Chrome OS, Windows 10 (64-bit)
Compatibility Information
Designed For Dell Latitude 3310, 3310 2-in-1, 5320 2-in-1, 5520, 7210 2-in-1, 7310, 7320 2-in-1, 7410, 7420 2-in-1, 7520, 9410 2-in-1, 9510
Dell Precision Mobile Workstation 3560, 7550, 7750
Dell XPS 13 9310
