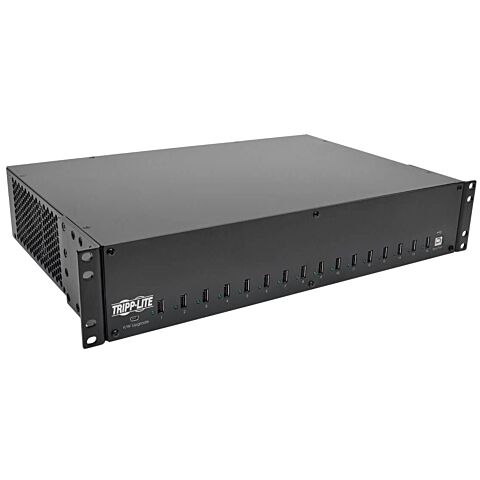

Eaton 16-Port USB Charging Station with Syncing, 230V, 5V 40A (200W) USB Charger Output, 2U Rack-Mount
Overview:
2U rack-mountable USB charger with integrated hub charges and syncs up to 16 tablets, smartphones and other mobile devices. Recommended for schools, offices and other environments where multiple USB devices are used.
Features:
Maximum charge output of 2.4A per USB port
Supports USB 2.0 data transfer rates up to 480 Mbps
Syncs any USB device using its compatible software
Enables future software upgrades to support newer devices
Mounts in 2U of EIA-standard 19 in. rack
Charges Up to 16 Tablets, Smartphones and Other USB Devices
Recommended for schools, offices and other environments where multiple USB devices are used
Compatible devices include iPad, iPod, iPhone and Android tablets and smartphones
Provides up to 5V, 2.4A (12W) of charging power to each port
LED indicators signal ports in use
Backward compatible with previous USB generations
Supports data transfer rates up to 480 Mbps
Also Syncs Devices via Connected Computer
Syncs USB devices using its compatible software, such as iTunes or Apple Configurator
Included USB cable connects USB-B port and computer's USB-A port
Mini-USB Firmware Port
Enables future software upgrades to support newer devices
Easy Installation and Connection
Mounts in 2U of EIA-standard 19 in. rack using included hardware
Also installs on level surface using included rubber feet
Conveniently configures for professional, educational or personal installation
10-ft. (3.05 m) BS 1363 to C13 and CEE 7/7 to C13 power cords included
Durable steel housing
TAA-Compliant
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
System Requirements:
Tablet, smartphone or other smart device with USB port
Computer with available USB port (if syncing)
Specifications:
OVERVIEW
UPC Code 37332193544
Product Type Multi-Device Charger
Charging Form Factor Rack Mount
Functions Charge; Sync
Device Compatibility Tablet; Phone
Technology USB 2.0 (High Speed)
Device Slots 16
INPUT
Nominal Input Voltage(s) Supported 230V AC
Input Connection Type IEC320-C14
Voltage Compatibility (VAC) 230
Input Frequency 50 / 60 Hz
Input Plug Type C14
Input Cord Length (ft.) 10
Input Current 2.5A
POWER
Power Consumption (Watts) 56
USER INTERFACE, ALERTS & CONTROLS
LED Indicators Green (16x USB Charging, 1x Sync)
CHARGING
Number of Charging Ports 16
Total Charging Amps 40A
Total Charging Watts 200
Charging Method USB
Charging Port Type USB A (FEMALE)
Charging Ports Details Pass through
Charging Ports / Amps (16) 2.4A
Overcharge Protection Yes
Charging Amps per Port 2.4A
PHYSICAL
Color Black
Material of Construction Steel
Shipping Dimensions (hwd / in.) 7.80 x 16.70 x 19.00
Shipping Weight (lbs.) 15.9
Unit Dimensions (hwd / in.) 3.410 x 17.300 x 11.880
Unit Packaging Type Box
Unit Weight (lbs.) 10.1
Number of Shelves 0
ENVIRONMENTAL
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range 5° to 122°F (-15° to 50°C)
Relative Humidity 5% to 95% RH, Non-Condensing
BTUs 191.1 BTU/Hr (Full load)
CONNECTIONS
Number of Ports 16
Side A - Connector 1 (16) USB A (FEMALE)
Side A - Connector 2 USB B (FEMALE)
Side A - Connector 3 MICRO-USB B (FEMALE)
Side B - Connector 1 IEC-320-C14
FEATURES & SPECIFICATIONS
Built-In Circuit Breaker Yes
Cord Management No
Overcurrent Protection Yes
EMI/RFI Line Noise Protection Yes
Flow-Through Ventilation Yes
UV Sterilization No
Driver Required No
STANDARDS & COMPLIANCE
Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); IEC 60950-1; NOM (Mexico); UL 60950-1
Product Compliance RoHS; REACH; FCC Part 15 Class B (USA); UKCA
