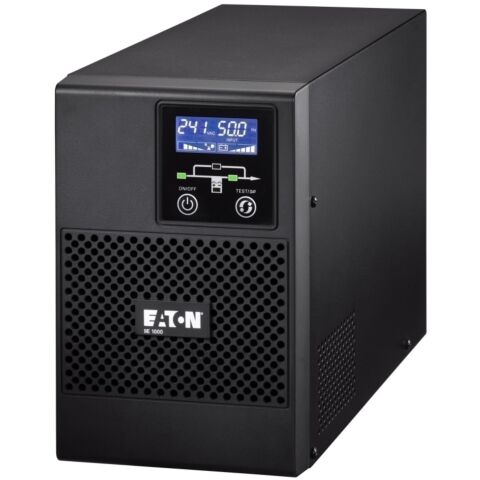

Eaton 9e 1000i Online UPS 1000VA 800W 208 - 240V Tower

In stock
SKU
9E1000I
Special Price R 6,952.00 Regular Price R 10,783.00
  • Brands - Cliqtosave Online: Eaton
Eaton 9e 1000i Online UPS 1000VA 800W 208 - 240V Tower
More Information
BrandEaton
Supply TypeUPS

Details

Eaton 9e 1000i Online UPS 1000VA 800W 208 - 240V Tower, Online Double conversion, 1x IEC-320-C14 connection, 4x IEC-320-C13 outlets, Pure Sine Wave

Features:

Online double conversion topology
Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
Reliable UPS at an attractive price
Provides more real power (watts) to protect more equipment with a 0.8 power factor
Internal bypass and maintenance bypass are available as standards for service continuity
Combo input (3:1 and 1:1 ) on the 10kVA, 15kVA, 20 kVA
Long runtime with up to 4 optional EBM cabinets
Extra-long runtime available with 3kVA, 10kVA and 20kVA XL models
XL models with internal supercharger for extra-long runtime
Communication through USB, RS232 serial or over the network with an optional communication card(Network card, ModBus/Jbus or Contacts/Serial cards)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
CE compliance certified by external laboratory (CB report from the TUV)

Specifications:

General
Topology Online double conversion
Configuration Tower
Part Number 9E1000I
Rating (VA/Watts) 1000/800
Dimensions (H x W x D, mm) 356 x 228 x 144
Weight (kg) 9.5
Electrical Input
Connection (1) IEC-320-C14
Input Voltage Range 176-300V without derating (up to 100-300V with derating)
Nominal Voltage 208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Electrical Output
Voltages 208V*/220V/230V/240V ±1%
Voltage THD <2% for 100% linear load
Outlets (4) IEC-320-C13
Overload Capacity 105%-130% : 60s, 130%-150% : 10s, >150% : ≥ 300ms
Efficiency (Normal Mode) Up to 91% in Online mode
Output Frequency 50/60 Hz autoselect
Communications
Communication Ports 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communication Slot 1 slot for Network-M2, ModBus-MS or Relay-MS cards
Power Management Software Intelligent Power Editions
Environmental & Standards
Audible Noise <37 dB @ typical load
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1
EMC Markings IEC/EN 62040 -2
Approvals CE, CB report (TUV)
General specifications
Product Name Eaton 9E UPS
Catalog Number 9E1000I
UPC 786689166564
Product Length/Depth 605 mm
Product Height 86.5 mm
Product Width 440 mm
Product Weight 22.1 kg
Compliances CE Marked
TUV
Certifications IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
Model Code Eaton 9E 1000i
Product specifications
Secondary frequency - max 60 Hz
Output waveform Sine wave
Wattage 800 W
Output power factor 0.8
Form factor Tower
Voltage distortion output (linear load) - max 3
Includes network card No
Input connection C14
Input voltage - min 100 V
Output voltage - max 240 V
Secondary frequency - min 50 Hz
Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Battery replacement Replacable batteries
Battery type Sealed, lead-acid
Efficiency 91
Special features Double conversion topology, Constantly monitors power conditions and regulates voltage and frequency, Internal bypass allows service continuity in case of UPS fault, LCD display for real-time status and measurements, Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Construction type Free standing model
Output voltage - min 220 V
Color Black
Extended battery capability Yes
Output voltage range 220/230/240 V +/- 2%
Topology Online/Double-conversion
BTU Rating Online: 300
Efficiency (eco-mode) 97
Back-up time 5 min
Input nominal voltage 230V default (220/230/240V)
Input power factor >.99
Input frequency range 40-70 Hz
Internal bypass Yes
Input voltage - max 300 V
Voltage type AC
Phase (output) 1
Battery management Automatic battery test, Deep discharge protection
Auto shutdown function Yes
Number of Outputs C13 4
VA rating 1000 VA
Potential free switch contact No
Receptacle (4) C13
Phase (input) 1
Package contents UPS, USB cable, Serial cable, Quickstart guide, Safety instructions
Noise level <37 dB at 1 meter
Feed type 1
Runtime graph View runtime graph
User interface LCD Display
Battery quantity 2
Voltage 230V
Hot swap power No
Temperature range 0° to 40°C (32° to 104°F)
Ethernet interface No
Communication USB port (HID compliant), Serial port (RS232), Communication slot
Relative humidity 0-95% non-condensing
Rack mounting kit No
Output frequency 50/60 Hz
Runtime at full load 5 min
Type of interface Other
Primary frequency - min 40 Hz
Battery rating 12 V / 9 Ah
Type UPS
Output nominal voltage 230V default (220/230/240V)
Expansion slots One slot for optional communication card
Input voltage range 176-300 V (100 V-300 V with derating)
Nominal frequency 50/60 Hz
Primary frequency - max 70 Hz
Altitude 3000 m
