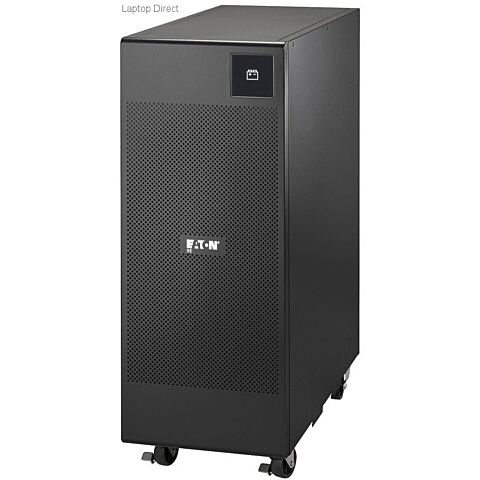

Eaton 9E 15000i 15kVA UPS 1:1 and 3:1, 10 mins run-time at 100%
Specifications:
General
Topology Online double conversion
Configuration Tower
Part Number 9E15Ki
Rating (VA/Watts) 15000/12000
Dimensions (H x W x D, mm) 815.5 x 350 x 706
Weight (kg) 145.3
Electrical Input
Connection Hardwired - see manual for terminal block layout
Input Voltage Range 176-276V without derating (up to 110-276V with derating)
Nominal Voltage 220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 45-66 Hz
Short Circuit Current 205 A
Electrical Output
Voltages 220V/230V/240V ±2 %
Voltage THD <3%
Outlets Hardwired - see manual for terminal block layout
Overload Capacity 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms
Efficiency (Normal Mode) Up to 93% in Online mode, 97% in ECO mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Communications
Communication Ports 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Communications Slot 1 slot for Network-MS, ModBus-MS or Relay-MS cards
Power Management Software Intelligent Power Software
Environmental & Standards
Audible Noise <55dB
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1
EMC Markings IEC/EN 62040 -2
Approvals CE, CB report (TUV)
