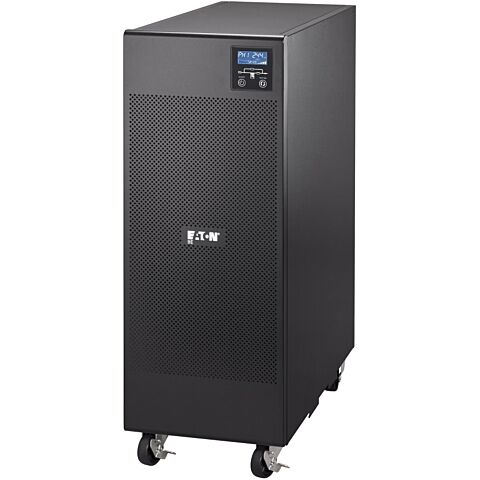

Eaton 9E6Ki 9e 6000i On-line UPS 6000VA 220-240V Tower

In stock
SKU
9E6Ki
Special Price R 36,544.00 Regular Price R 56,856.00
  • Brands - Cliqtosave Online: Eaton

Eaton 9E6Ki 9e 6000i On-line UPS 6000VA 220-240V Tower, Pure Sine Wave Output Waveform, Online/Double-conversion, 15 batteries, Sealed lead-acid Battery Type

More Information
BrandEaton
Supply TypeUPS

Details

Eaton 9E6Ki 9e 6000i On-line UPS 6000VA 220-240V Tower, Pure Sine Wave Output Waveform, Online/Double-conversion, 15 batteries, Sealed lead-acid Battery Type


Specifications:

General specifications
Product Name Eaton 9E UPS
Catalog Number 9E6KI
UPC 743172067661
Product Length/Depth 61.29 cm
Product Height 70.85 cm
Product Width 26.24 cm
Product Weight 68 kg
Compliances CE Marked
TUV
Certifications IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
Product specifications
Secondary frequency - max 60 Hz
Output waveform Sine wave
Max number of battery packs 4
Wattage 4800 W
Output power factor 0.8
Form factor Tower
Voltage distortion output (linear load) - max 3
Includes network card No
Input connection Hardwired/fixed connection
Input voltage - min 110 V
Output voltage - max 240 V
Secondary frequency - min 50 Hz
Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Battery replacement Replacable batteries
Battery type Sealed, lead-acid
Efficiency 91
Number of outputs hardwired 1
Special features Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Internal bypass allows service continuity in case of UPS fault
LCD display for real-time status and measurements
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Long backup time with up to 4 optional EBM
Construction type Free standing model
Output voltage - min 220 V
Color Black
Extended battery capability Yes
Output voltage range 220/230/240 V +/- 2%
Topology Online/Double-conversion
BTU Rating Online: 1472
Efficiency (eco-mode) 96
Runtime at half load 10 min
Input nominal voltage 230V default (220/230/240V)
Input power factor >.99
Input frequency range 45-66Hz
Internal bypass Yes
Input voltage - max 276 V
Voltage type AC
Phase (output) 1
Battery management Automatic battery test
Deep discharge protection
Auto shutdown function Yes
VA rating 6000 VA
Potential free switch contact Yes
Phase (input) 1
Package contents UPS
USB cable
Serial cable
User manual
Noise level <55 dB at 1 meter
Feed type 1
User interface LCD Display
Battery quantity 15
Voltage 230V
Hot swap power No
Temperature range 0° to 40°C (32° to 104°F)
Ethernet interface No
Communication USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote power off
Communication slot
Relative humidity 0-95% non-condensing
Rack mounting kit No
Output frequency 50/60 Hz
Runtime at full load 8 min
Type of interface Other
Primary frequency - min 45 Hz
Battery rating 12 V / 9 Ah
Type UPS
Output nominal voltage 230V default (220/230/240V)
Expansion slots One slot for optional communication card
Input voltage range 176-276 V (110-276 V with derating)
Nominal frequency 50/60 Hz
Primary frequency - max 66 Hz
Altitude 3000 m
