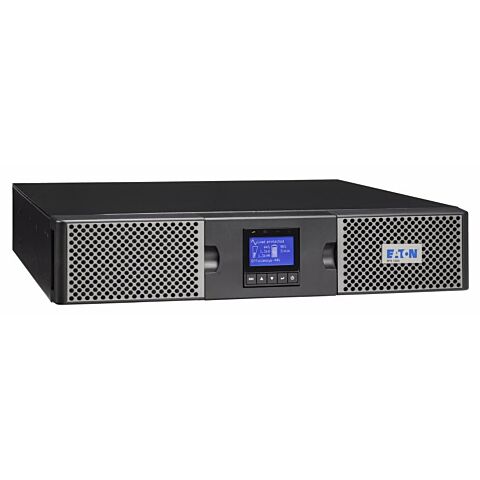

Eaton 9PX 1000i RT2U 1000VA 200-240V Rack/Tower (Rail Kit Incl.)

Eaton 9PX 1000i RT2U online UPS

Specifications:

General specifications
Product Name Eaton 9PX UPS
Catalog Number 9PX1000IRT2U
UPC 743172081407
Product Length 440 MM
Product Height 86.5 MM
Product Width 450 MM
Product Weight 17.4 KG
Product specifications
Output Waveform Sine wave
Max Number of Battery Packs 4
Output Power Factor 1
Form Factor Rack/tower
Max Volt Dist Output(Linear Load) 3
Includes Network Card No
Input Connection C14
Software Compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Batteries Replacement User replaceable
Battery Type Sealed, lead-acid
Efficiency 91.5
SNMP No
Special Features 9PX is the first UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, the 9PX provides the highest efficiency level to reduce energy and cooling costs
Double conversion topology. The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
The graphical LCD display provides clear information on the UPS's status and measurements on a single screen
9PX can meter energy consumption right down to the managed outlet groups.
Pedestal and rail kits are included with all models
The internal bypass allows service continuity in case of internal fault
Construction Type 482.6 mm (19 inch) device
Color Black/silver
Output Voltage Range 200/208/220/230/240V +/- 1%
Extended Battery Capability Yes
Topology Online
BTU Rating Online: 290
Input Nominal Voltage 230V default (200/208/220/230/240V)
Input Frequency Range 40-70 Hz
Internal Bypass Yes
Phase (Output) 1
Battery Management ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Auto Shutdown Function Yes
Number of Outputs C13 8
VA Rating 1000 VA
Potential Free Switch Contact Yes
Receptacle (8) C13
Phase (Input) 1
Package Contents 9PX UPS
2 IEC output power cords
USB Cable
Serial Cable
2 brackets for 19' mounting
2 universal rails
2 supports for tower mounting
cable locking systems
Safety guide
Quickstart
Noise Level <35 dB at 1 meter
Feed Type 1
Runtime Graph View runtime graph
User Interface Multilingual graphical LCD display
Rack Size 2U
Voltage 230V
Hot Swap Power No
Temperature Range 0° to 40°C (32° to 104°F)
Ethernet Interface No
Communication 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
Relative Humidity 0-96% non-condensing
Rack Mounting Kit Yes
Efficiency (Eco-Mode) 97.5
Output Frequency 50-60 Hz
Runtime at Full Load 6 min
Type of Interface Other
Type UPS
Output Nominal Voltage 230V default (200/208/220/230/240V)
Expansion Slots One slot for optional communication card
Input Voltage Range 176-276V (100V-276V with derating)
Nominal Frequency 50/60 Hz
Altitude 3000 m
