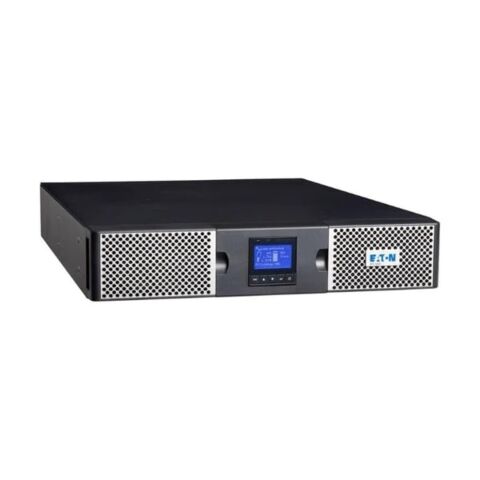

Eaton 9PX 3000i RT2U online UPS

In stock
SKU
9PX3000IRT2U
Special Price R 47,768.00 Regular Price R 74,318.00
  • Brands - Cliqtosave Online: Eaton
Eaton 9PX 3000i RT2U 3000VA 200-240V Rack/Tower
More Information
BrandEaton
Supply TypeUPS

Details

Eaton 9PX 3000i RT2U online UPS (3 - 5 mins at 90% Load )


Specifications:

General
Topology On-line double conversion with Power Factor Correction (PFC) system
Configuration Rack/Tower
Part Number 9PX3000IRT2U
Rating (VA/Watts) 3000/3000
Dimensions (H x W x D, mm) 86.5 x 440 x 605
Weight (kg) 27.6
Rail Kit Included Yes
Electrical Input
Input Voltage Range 176-276V without derating (up to 100-276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Electrical Output
Nominal Voltage 200/208/220/230/240V
Efficiency (Normal Mode) Up to 94% in online mode (Up to 98% in Hi-efficiency mode)
Output Frequency 50/60 Hz autoselect, frequency converter mode
Battery
Battery Management ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Extended Battery Capability EBM (2U)
Communications
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards.
Environmental & Standards
Audible Noise 40dB
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.10
EMC Markings IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
