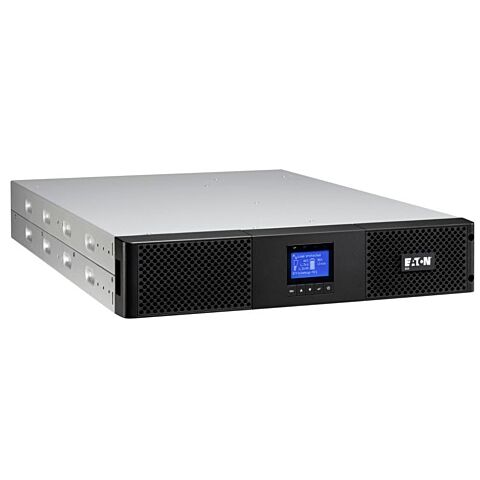

Eaton 9SX 2000i Rack2U

Eaton 9SX 2000i Rack2U

Specifications:

General
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack
Part Number 9SX2000IR
Rating (VA/Watts) 2000/1800
Dimensions (H x W x D, mm) 86.5 x 438 x 608
Electrical Input
Connection (1) IEC-320-C14
Input Voltage Range 200-276V without derating (up to 140-276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Electrical Output
Outlets (8) IEC-320-C13
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Battery
Battery Management ABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM with Rack Kit
Communications
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise <45dB
Operating Temperature 0 to 40°C continuous
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM
